JZA80L-ALMVFA (1993)

Toyota Supra

Production May 1993 - Sep 1997
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )

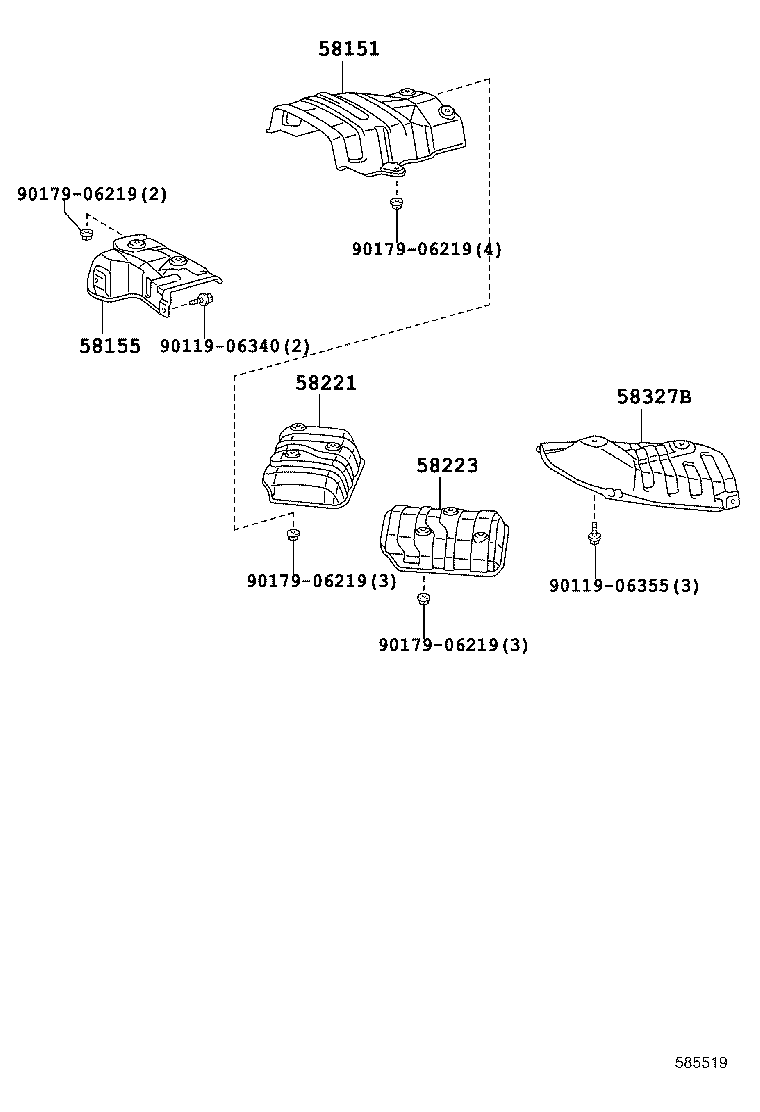

Click highlighted areas on diagram

diagram 58151 58155 58221 58223 58327B 9011906340 9011906355 9017906219 9017906219 9017906219 9017906219
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-24041

JZA80..LB

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-24010

JZA80

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-14070

JZA80..TWC

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-14040

JZA80..TWC

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58328-14010

JZA80

 1
Common parts
90119-06340
90119-06355
90179-06219
