JZA80L-ALMVFA (1993)
Toyota Supra
Production
May 1993
-
Sep 1997
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

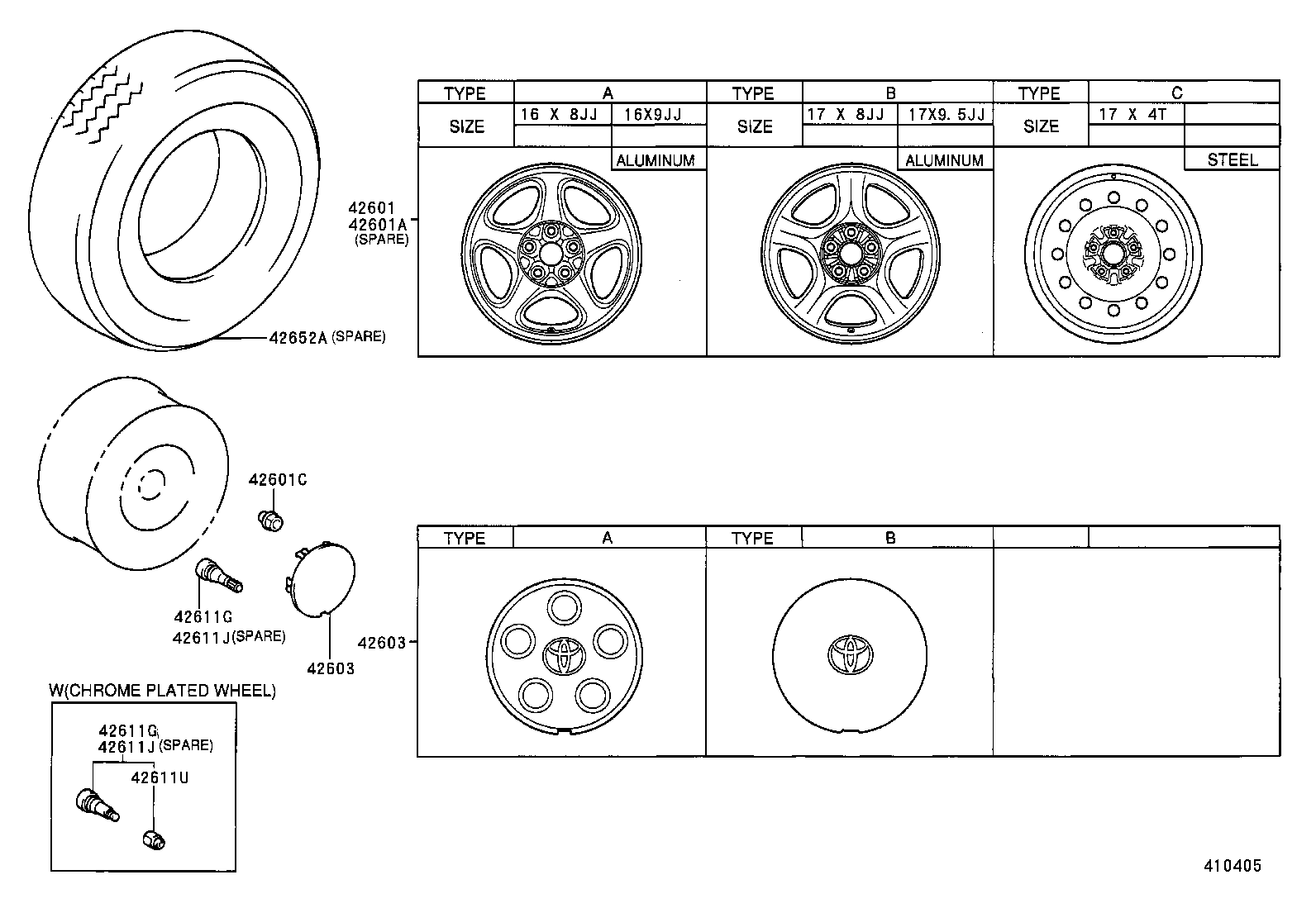

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-1B010 |
JZA80..TWC 16X8JJ,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 42611-1B020 |
JZA80..TWC 16X9JJ,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-50090 |
JZA80 17X4T,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01062 |
JZA80 |
20 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-14320 |
JZA80 |
4 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-14320 |
JZA80 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
JZA80 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
JZA80 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
JZA80 |
1 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
JZA80 |
1 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-14780 |
JZA80 T145/70R17 |
1 | ||

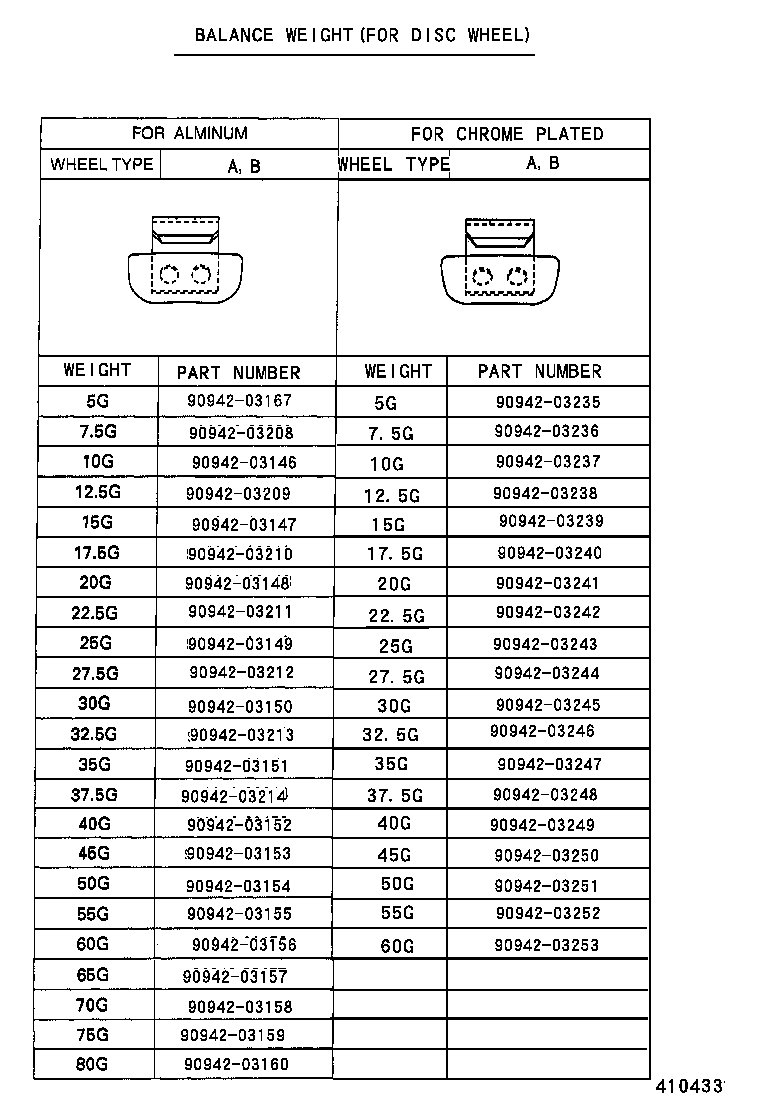

(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03155 | ||||
| 90942-03156 | ||||
| 90942-03157 | ||||
| 90942-03158 | ||||
| 90942-03159 | ||||
| 90942-03160 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03235 | ||||
| 90942-03236 | ||||
| 90942-03237 | ||||
| 90942-03238 | ||||
| 90942-03239 | ||||
| 90942-03240 | ||||
| 90942-03241 | ||||
| 90942-03242 | ||||
| 90942-03243 | ||||
| 90942-03244 | ||||
| 90942-03245 | ||||
| 90942-03246 | ||||
| 90942-03247 | ||||
| 90942-03248 | ||||
| 90942-03249 | ||||
| 90942-03250 | ||||
| 90942-03251 | ||||
| 90942-03252 | ||||
| 90942-03253 | ||||
