JZA80L-AJPVZA (1993)
Toyota Supra
Production
May 1993
-
Aug 1998
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

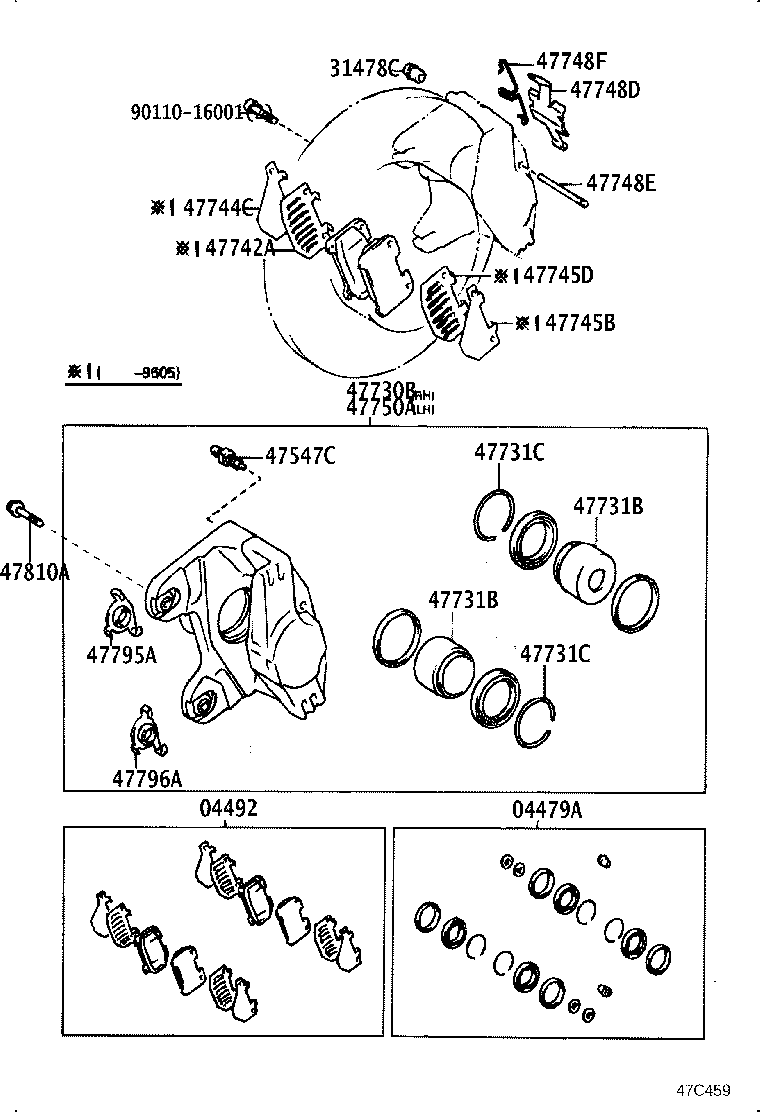

ILLUST NO. 1 OF 2(9305- )TWT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-14130 |
JZA80..TWT |
1 | ||
| 04492 - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-14161 |
JZA80..TWT |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-14010 |
JZA80..TWT |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20030 |
JZA80..TWT |
2 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-14270 |
JZA80..TWT |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-14120 |
JZA80..TWT |
4 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-14120 |
JZA80..TWT |
4 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-45002 |
JZA80..TWT |
4 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-45002 |
JZA80..TWT |
4 | ||
| 47742A - SHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE) | ||||
| 47745-14090 |
JZA80..TWT RH |
1 | ||
| 47745-14120 |
JZA80..TWT LH |
1 | ||
| 47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-14160 |
JZA80..TWT RH |
1 | ||
| 47744-14180 |
JZA80..TWT LH |
1 | ||
| 47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47744-14160 |
JZA80..TWT LH |
1 | ||
| 47744-14180 |
JZA80..TWT RH |
1 | ||
| 47745D - SHIM, ANTI-SQUEAL, NO.4(FOR REAR DISC BRAKE) | ||||
| 47745-14090 |
JZA80..TWT LH |
1 | ||
| 47745-14120 |
JZA80..TWT RH |
1 | ||
| 47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47748-14090 |
JZA80..TWT |
2 | ||
| 47748E - PIN, W/HOLE(FOR REAR DISC BRAKE) | ||||
| 90240-06017 |
JZA80..TWT |
4 | ||
| 47748F - CLIP(FOR REAR DISC BRAKE) | ||||
| 90468-12020 |
JZA80..TWT |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-14280 |
JZA80..TWT |
1 | ||
| 47795A - PLATE, REAR DISC BRAKE CALIPER, NO.1 | ||||
| 47795-14020 |
JZA80..TWT |
2 | ||
| 47796A - PLATE, REAR DISC BRAKE CALIPER, NO.2 | ||||
| 47795-14020 |
JZA80..TWT |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
JZA80 |
4 | ||
| Common parts | ||||
| 90110-16001 | ||||
ILLUST NO. 2 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-14040 |
JZA80..TWT |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-14030 |
JZA80..TWT |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-14010 |
JZA80..TWT |
1 | ||
