JZA80L-AJPVZA (1993)
Toyota Supra
Production
May 1993
-
Aug 1998
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )4FC..TWT

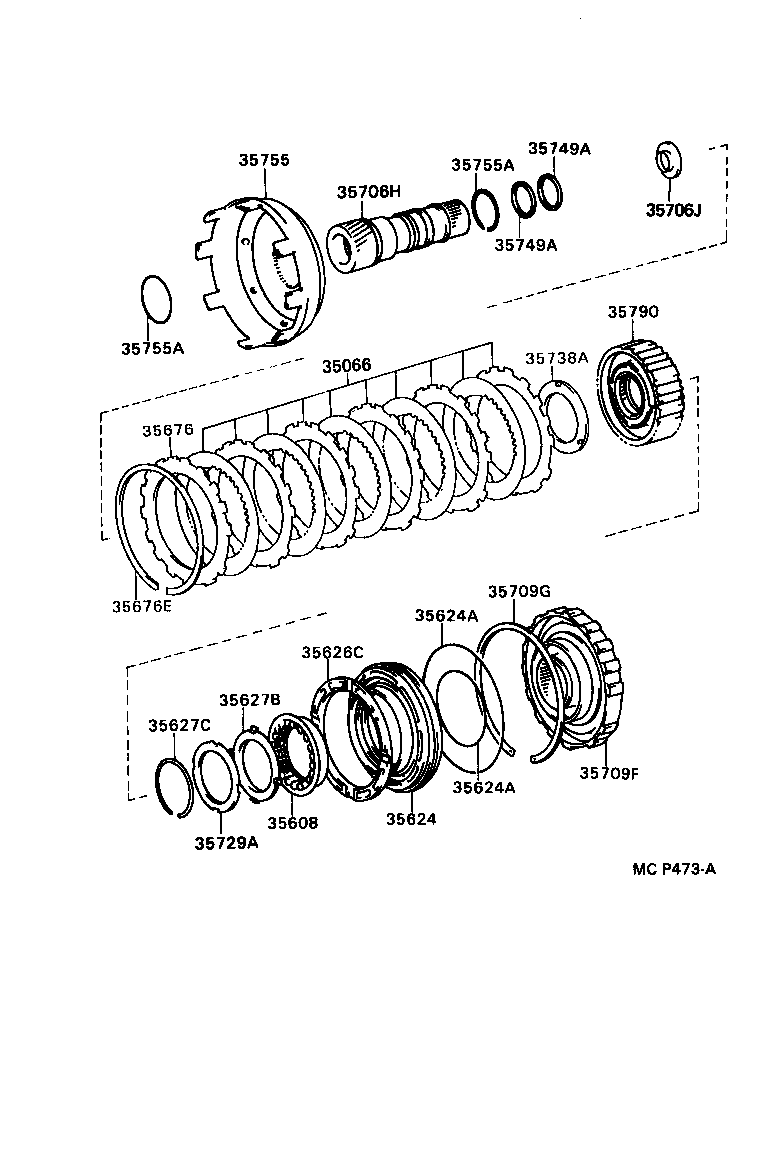

Click highlighted areas on diagram
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35066 - DISC SET, 2ND BRAKE | ||||
| 35066-30020 |
JZA80..4FC..TWT |
1 | ||
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-50010 |
JZA80..4FC |
1 | ||
| 35608-50010 |
JZA80..4FC..TWT |
1 | ||
| 35624 - PISTON, 2ND BRAKE | ||||
| 35624-30010 |
JZA80..4FC |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-85001 |
JZA80..4FC INNER |
1 | ||
| 90301-99038 |
JZA80..4FC OUTER |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-85001 |
JZA80..4FC INNER |
1 | ||
| 90301-99038 |
JZA80..4FC OUTER |
1 | ||
| 35626C - SLEEVE, 2ND BRAKE PISTON | ||||
| 35626-30030 |
JZA80..4FC |
1 | ||
| 35627B - SEAT, 2ND BRAKE PISTON RETURN SPRING | ||||
| 35627-30010 |
JZA80..4FC |
1 | ||
| 35627C - RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEA | ||||
| 90520-54001 |
JZA80..4FC |
1 | ||
| 35676 - FLANGE, BRAKE (FOR 2ND BRAKE) | ||||
| 35676-30170 |
JZA80..4FC..TWT T=4.2 |
1 | ||
| 35676-30160 |
JZA80..4FC..TWT T=4.0 |
1 | ||
| 35676-30020 |
JZA80..4FC T=3.0 |
1 | ||
| 35676-30130 |
JZA80..4FC..TWT T=3.4 |
1 | ||
| 35676-30140 |
JZA80..4FC..TWT T=3.6 |
1 | ||
| 35676-30150 |
JZA80..4FC..TWT T=3.8 |
1 | ||
| 35676-30120 |
JZA80..4FC..TWT T=3.2 |
1 | ||
| 35676E - RING, HOLE SNAP (FOR 2ND BRAKE) | ||||
| 90521-99032 |
JZA80..4FC |
1 | ||
| 35706H - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-30061 |
JZA80..4FC |
1 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-27009 |
JZA80..4FC..TWT |
1 | ||
| 35709F - DRUM SUB-ASSY, 2ND BRAKE | ||||
| 35709-30061 |
JZA80..4FC |
1 | ||
| 35709G - RING, HOLE SNAP (FOR 2ND BRAKE DRUM) | ||||
| 90521-99044 |
JZA80..4FC |
1 | ||
| 35729A - WASHER, PLANETARY CARRIER THRUST, NO.4 | ||||
| 35729-30010 |
JZA80..4FC |
1 | ||
| 35738A - WASHER, 1 WAY CLUTCH THRUST, NO.1 | ||||
| 35738-30040 |
JZA80..4FC |
1 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-30010 |
JZA80..4FC |
2 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-30010 |
JZA80..4FC |
2 | ||
| 35755 - DRUM, SUN GEAR INPUT | ||||
| 35755-50010 |
JZA80..4FC |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-48007 |
JZA80..4FC..TWT T=2.3,ID=47.5 |
1 | ||
| 90520-46002 |
JZA80..4FC ID=46.0,T=1.2 |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-48007 |
JZA80..4FC..TWT T=2.3,ID=47.5 |
1 | ||
| 90520-46002 |
JZA80..4FC ID=46.0,T=1.2 |
1 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35790-30060 |
JZA80..4FC..TWT |
1 | ||
| 35790-30060 |
JZA80..4FC |
1 | ||
| 35790-50010 |
JZA80..4FC |
1 | ||
