JZA80L-AJPVFA (1993)
Toyota Supra
Production
May 1993
-
Aug 1998
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

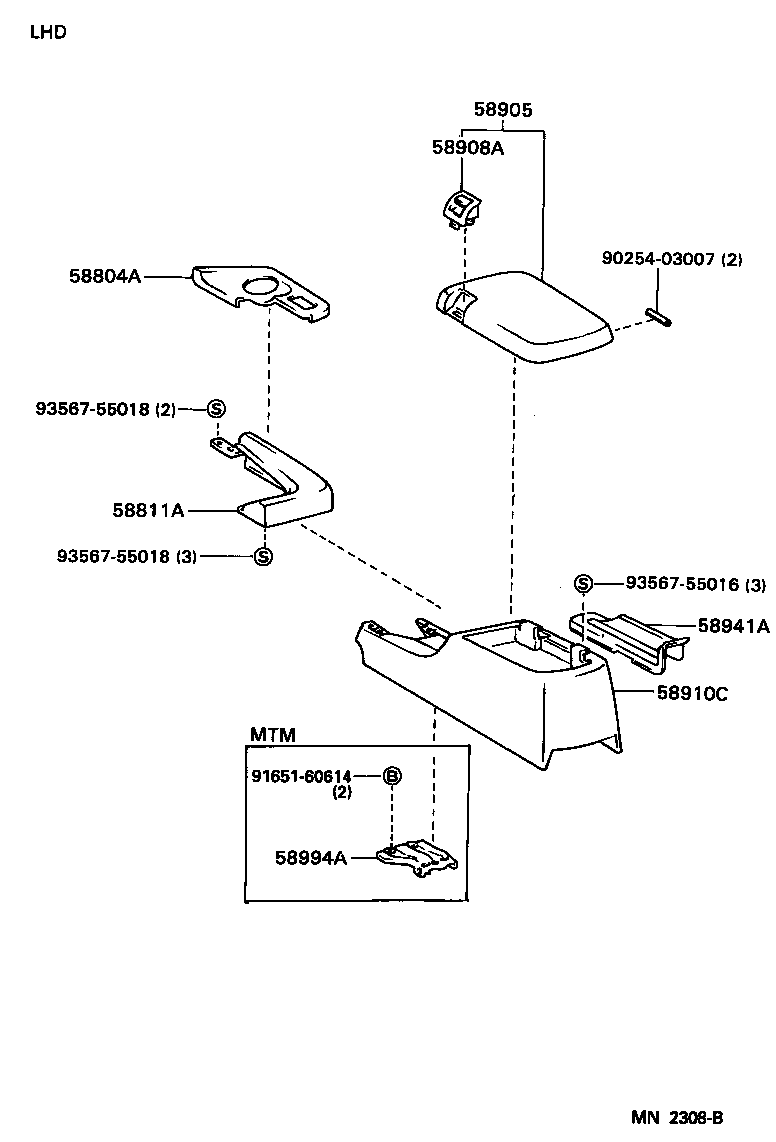

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-14070 |
JZA80..4FC |
1 | ||
| 58804-14110 |
JZA80..4FC |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58802-14070C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-14091C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 58905-14090C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 58905-14091C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-14020C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58911-14131C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 58911-14130C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 58911-14131C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 58941A - COVER, PARKING BRAKE HOLE | ||||
| 58904-14020 |
JZA80 |
1 | ||
| Common parts | ||||
| 90254-03007 | ||||
| 91651-60614 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||
