JZA80L-AJPVFA (1993)
Toyota Supra
Production
May 1993
-
Aug 1998
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305-9808)

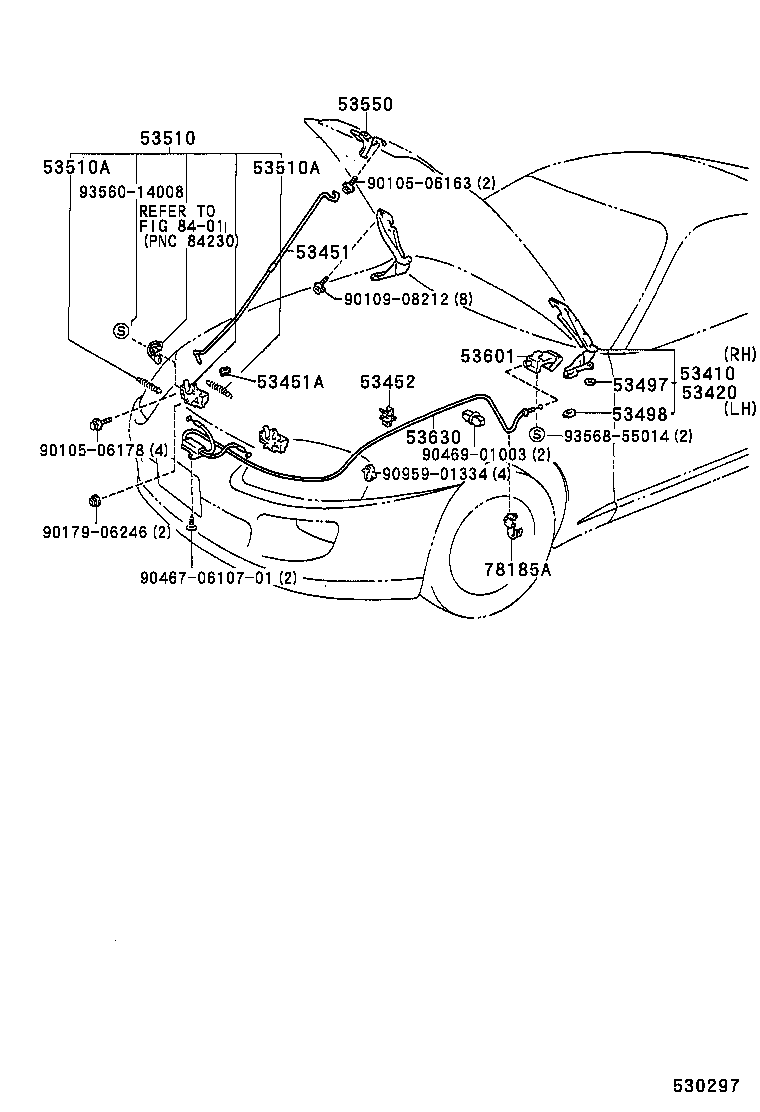

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-14130 |
JZA80 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-14100 |
JZA80 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-14070 |
JZA80 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-01264 |
JZA80 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-14010 |
JZA80 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12050 |
JZA80 T=1.0,T=1.0 |
1 | ||
| 53497-20070 |
JZA80 T=2.0,T=2.0 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-14040 |
JZA80 T=2.0 |
4 | ||
| 53498-14030 |
JZA80 T=1.0 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-14240 |
JZA80 RH |
1 | ||
| 53510-14250 |
JZA80 LH |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-14061 |
JZA80 WD=1.4,CW=15 |
2 | ||
| 90506-08044 |
JZA80 WD=0.8,CW=18 |
2 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-14061 |
JZA80 WD=1.4,CW=15 |
2 | ||
| 90506-08044 |
JZA80 WD=0.8,CW=18 |
2 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-14020 |
JZA80 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-20081C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-14300 |
JZA80 |
1 | ||
| 78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78185-20080 |
JZA80 |
1 | ||
| Common parts | ||||
| 90105-06163 | ||||
| 90105-06178 | ||||
| 90109-08212 | ||||
| 90179-06246 | ||||
| 90467-0610701 | ||||
| 90469-01003 | ||||
| 90959-01334 | ||||
| 93560-14008 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
