JZA80L-AJFVZK (1993)
Toyota Supra
Production
Aug 1993
-
Sep 1997
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505-9507)
Click highlighted areas on diagram
SUPRA SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-14530 |
JZA80 POLE ANTENNA |
1 | ||
| 86101-14540 |
JZA80 BACK WINDOW ANTENNA |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-14411 |
JZA80 |
1 | ||
| 86300-14410 |
JZA80 |
1 | ||
| 86337 - ROD & PIPE, SEALED W/CABLE | ||||
| 86337-14410 |
JZA80 |
1 | ||
| 86337-14411 |
JZA80 |
1 | ||
| 86392 - ORNAMENT, ANTENNA | ||||
| 86392-14100 |
JZA80 |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-30040 |
JZA80 |
1 | ||
| Common parts | ||||
| 82819-14280 | ||||
| 90119-06390 | ||||
(9305-9607)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-14530 |
JZA80 POLE ANTENNA |
1 | ||
| 86101-14540 |
JZA80 BACK WINDOW ANTENNA |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-14530 |
JZA80 POLE ANTENNA |
1 | ||
| 86101-14540 |
JZA80 BACK WINDOW ANTENNA |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-14411 |
JZA80 |
1 | ||
| 86300-14410 |
JZA80 |
1 | ||
| 86300C - ANTENNA ASSY, AMPLIFIER, NO.2 | ||||
| 86300-14420 |
JZA80 |
1 | ||
| 86337 - ROD & PIPE, SEALED W/CABLE | ||||
| 86337-14410 |
JZA80 |
1 | ||
| 86337-14411 |
JZA80 |
1 | ||
| 86392 - ORNAMENT, ANTENNA | ||||
| 86392-14100 |
JZA80 |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-30040 |
JZA80 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
(9607- )

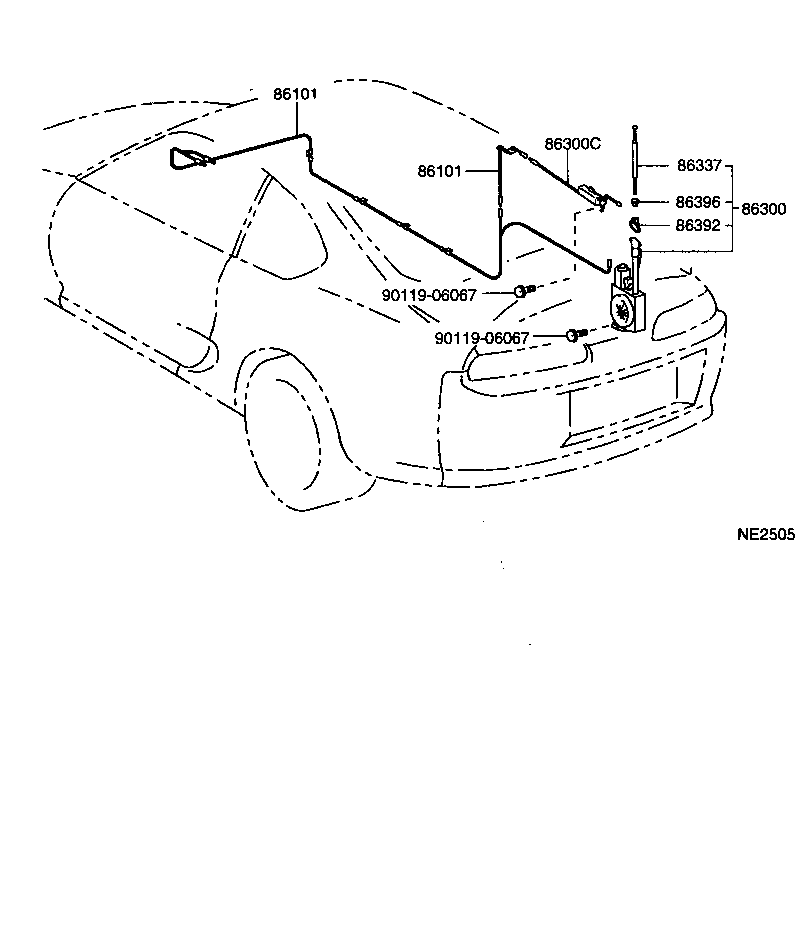

Click highlighted areas on diagram
DIVERSITY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-14530 |
JZA80 POLE ANTENNA |
1 | ||
| 86101-14540 |
JZA80 BACK WINDOW ANTENNA |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-14530 |
JZA80 POLE ANTENNA |
1 | ||
| 86101-14540 |
JZA80 BACK WINDOW ANTENNA |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-14411 |
JZA80 |
1 | ||
| 86300-14410 |
JZA80 |
1 | ||
| 86300C - ANTENNA ASSY, AMPLIFIER, NO.2 | ||||
| 86300-14420 |
JZA80 |
1 | ||
| 86337 - ROD & PIPE, SEALED W/CABLE | ||||
| 86337-14410 |
JZA80 |
1 | ||
| 86337-14411 |
JZA80 |
1 | ||
| 86392 - ORNAMENT, ANTENNA | ||||
| 86392-14100 |
JZA80 |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-30040 |
JZA80 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
