JZA80L-AJFVZK (1993)

Toyota Supra

Production Aug 1993 - Sep 1997
Engine 2JZGTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9709)

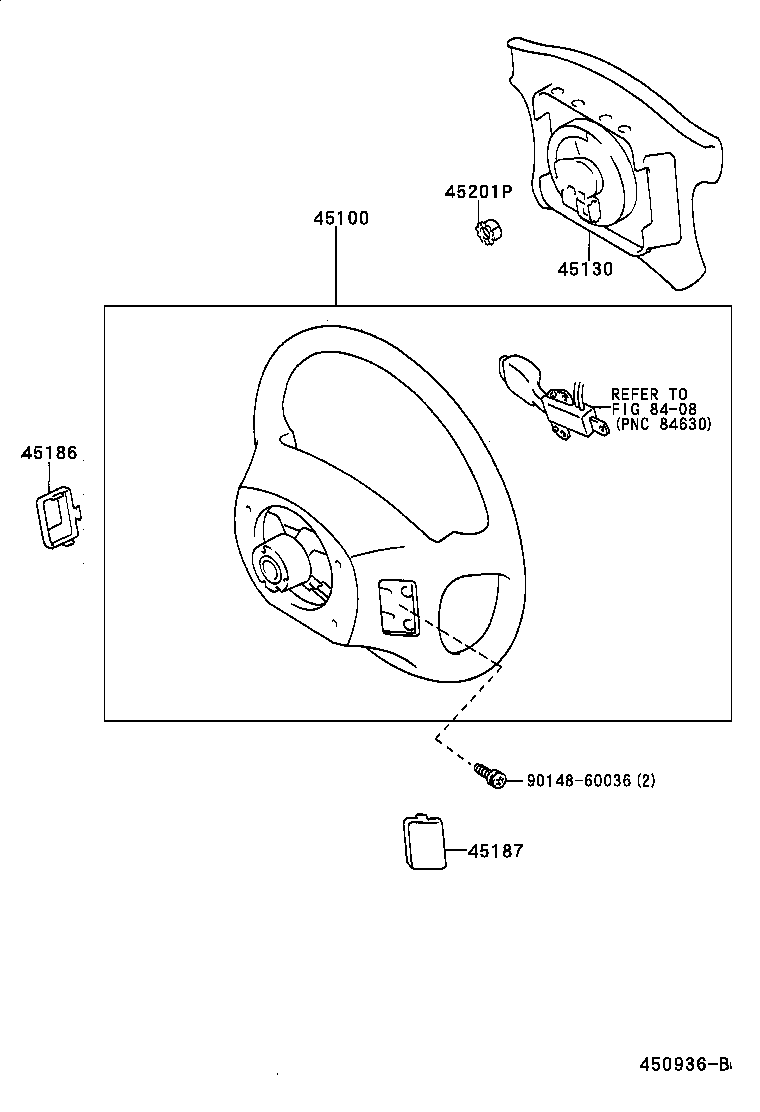

Click highlighted areas on diagram

4-SPOKE, W(*80 & CRUISE CONTROL)

diagram 45100 45130 45186 45187 45201P 9014860036
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-14630C0

JZA80

4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),BLACK,TRIM0#,2#

 1
45100-14550C0

JZA80

4-SPOKE,W(*80 & CRUISE CONTROL),BLACK,TRIM0#,2#

 1
45130 - BUTTON ASSY, HORN
45130-14300C0

JZA80

BLACK,TRIM0#,2#

 1
45130-14330C0

JZA80

BLACK,TRIM0#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-14020C0

JZA80

BLACK,TRIM0#,2#

 1
45186-14020C0

JZA80

BLACK,TRIM0#,2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-14020C0

JZA80

BLACK,TRIM0#,2#

 1
45187-14020C0

JZA80

BLACK,TRIM0#,2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

JZA80

 1
Common parts
90148-60036
