JZA80L-AJFVZK (1993)
Toyota Supra
Production
Aug 1993
-
Sep 1997
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

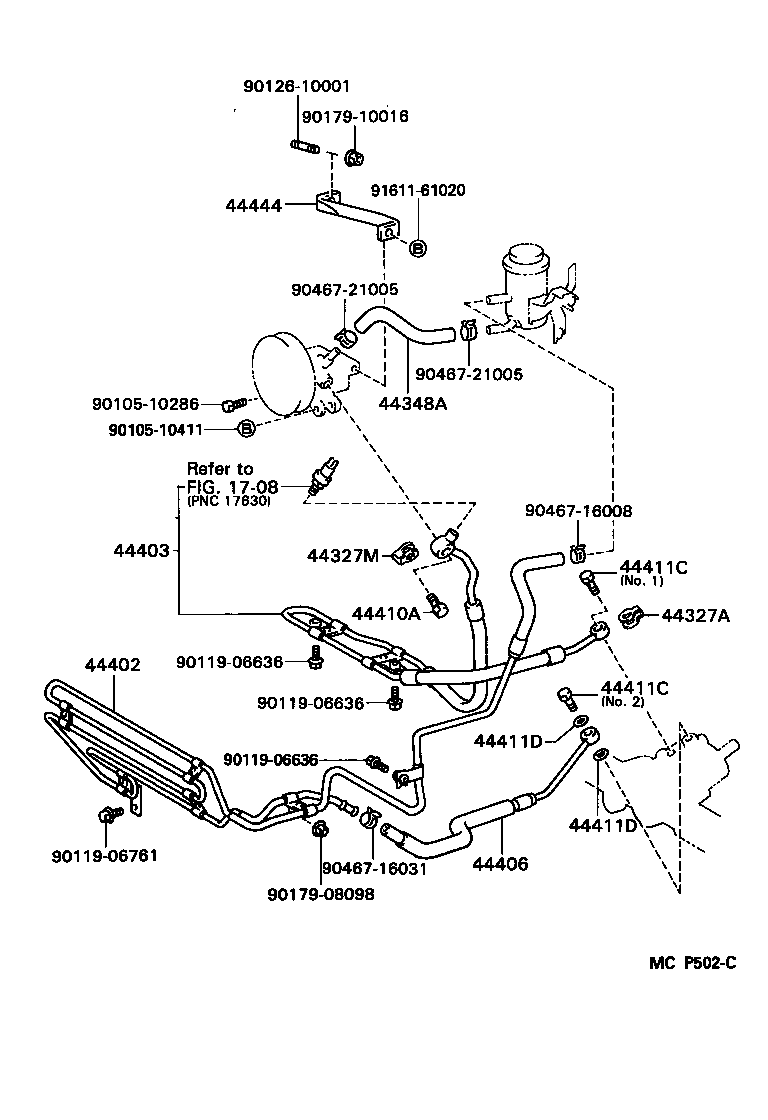

(9305-9408)TWT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
JZA80 |
1 | ||
| 44327M - GASKET, PRESSURE PORT, NO.2 | ||||
| 44327-26020 |
JZA80 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-24040 |
JZA80..TWT |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-14231 |
JZA80..TWT |
1 | ||
| 44402-14230 |
JZA80..TWT |
1 | ||
| 44403 - TUBE SUB-ASSY, PRESSURE FEED, NO.1 | ||||
| 44403-14020 |
JZA80 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-14060 |
JZA80 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16014 |
JZA80 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-17002 |
JZA80 NO.2 |
1 | ||
| 90401-16013 |
JZA80 NO.1 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-17002 |
JZA80 NO.2 |
1 | ||
| 90401-16013 |
JZA80 NO.1 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-17006 |
JZA80 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-17006 |
JZA80 |
2 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-22090 |
JZA80..TWT |
1 | ||
| Common parts | ||||
| 90105-10286 | ||||
| 90105-10411 | ||||
| 90119-06636 | ||||
| 90119-06761 | ||||
| 90126-10001 | ||||
| 90179-08098 | ||||
| 90179-10016 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 90467-21005 | ||||
| 91611-61020 | ||||
| Linked diagrams | ||||
| 1708 | ||||

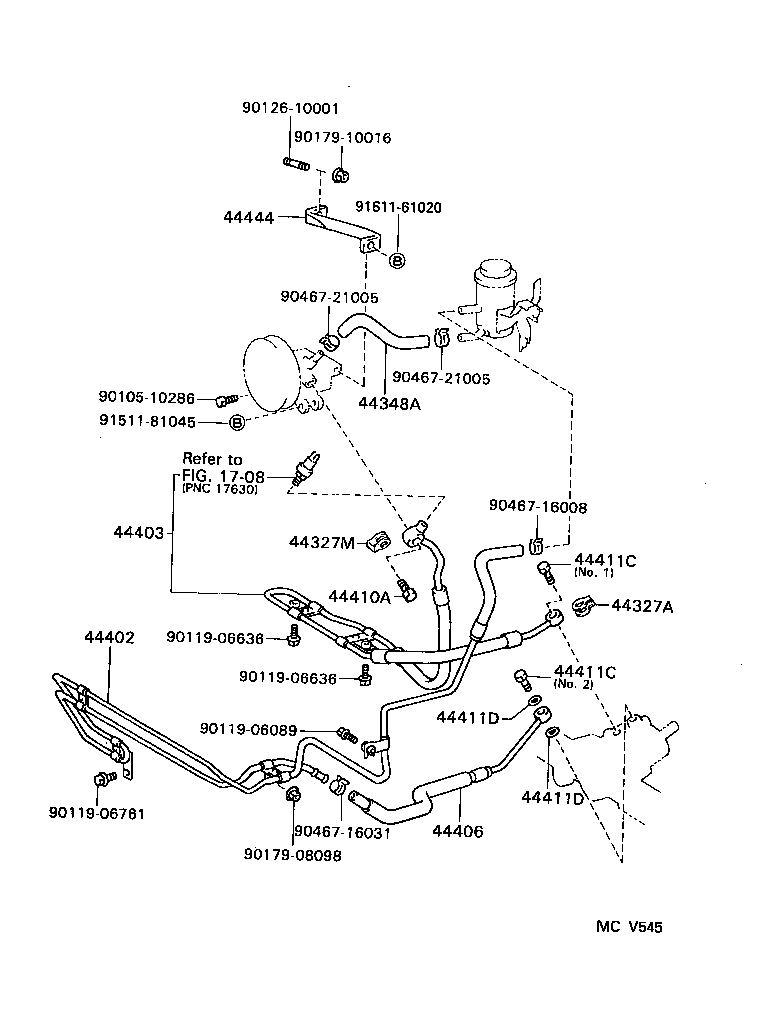

(9408- )TWT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
JZA80 |
1 | ||
| 44327M - GASKET, PRESSURE PORT, NO.2 | ||||
| 44327-26020 |
JZA80 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-24040 |
JZA80..TWT |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-14231 |
JZA80..TWT |
1 | ||
| 44402-14230 |
JZA80..TWT |
1 | ||
| 44403 - TUBE SUB-ASSY, PRESSURE FEED, NO.1 | ||||
| 44403-14020 |
JZA80 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-14060 |
JZA80 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16014 |
JZA80 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-17002 |
JZA80 NO.2 |
1 | ||
| 90401-16013 |
JZA80 NO.1 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-17002 |
JZA80 NO.2 |
1 | ||
| 90401-16013 |
JZA80 NO.1 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-17006 |
JZA80 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-17006 |
JZA80 |
2 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-22090 |
JZA80..TWT |
1 | ||
| Common parts | ||||
| 90105-10286 | ||||
| 90119-06089 | ||||
| 90119-06636 | ||||
| 90119-06761 | ||||
| 90126-10001 | ||||
| 90179-08098 | ||||
| 90179-10016 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 90467-21005 | ||||
| 91511-81045 | ||||
| 91611-61020 | ||||
| Linked diagrams | ||||
| 1708 | ||||
