JZA80L-AJFVZA (1993)
Toyota Supra
Production
May 1993
-
Aug 1998
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

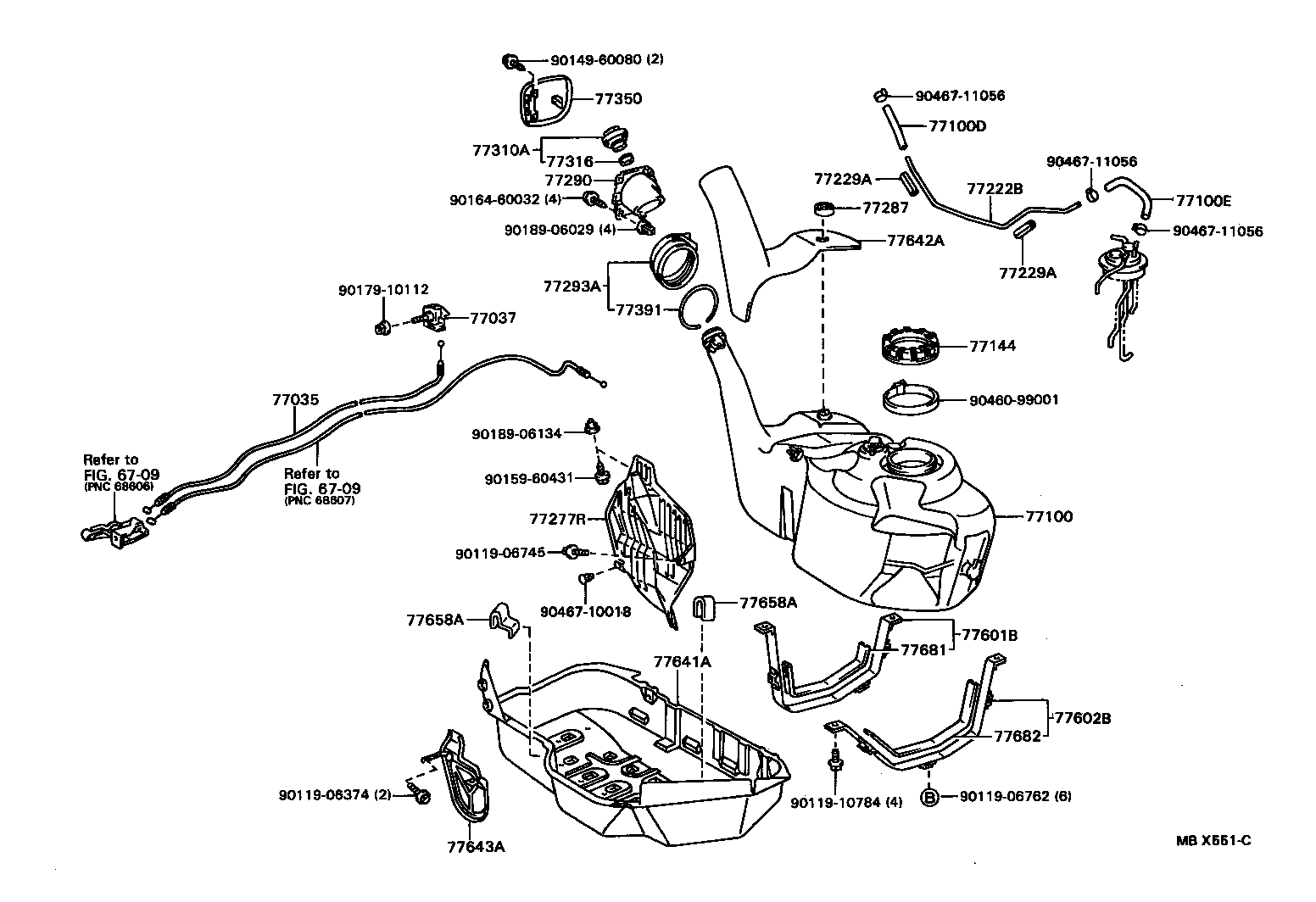

ILLUST NO. 1 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-14260 |
JZA80 CHUUHATU |
1 | ||
| 77035-14260 |
JZA80 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-14020 |
JZA80 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-14430 |
JZA80..TWT |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95333-06020 |
JZA80 *H,L=120 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 95333-06020 |
JZA80 *H,L=160 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-14040 |
JZA80 |
1 | ||
| 77222B - TUBE, FUEL TANK BREATHER, NO.2 | ||||
| 77222-14090 |
JZA80 |
1 | ||
| 77229A - PLATE, FUEL TANK BREATHER TUBE SEPARATE | ||||
| 77229-14030 |
JZA80 |
2 | ||
| 77229A - PLATE, FUEL TANK BREATHER TUBE SEPARATE | ||||
| 77229-14030 |
JZA80 |
2 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-14130 |
JZA80 |
1 | ||
| 77287 - SUPPORT, TANK TO CANISTER TUBE, NO.1 | ||||
| 77287-14030 |
JZA80 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-14010 |
JZA80 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-14010 |
JZA80 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-14090 |
JZA80 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-14010 |
JZA80 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-14081 |
JZA80 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
JZA80 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-14080 |
JZA80 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-14060 |
JZA80 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-14100 |
JZA80 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-14040 |
JZA80 |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-14040 |
JZA80 |
1 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-14030 |
JZA80 |
2 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-14030 |
JZA80 |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
JZA80 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
JZA80 |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90119-06745 | ||||
| 90119-06762 | ||||
| 90119-10784 | ||||
| 90149-60080 | ||||
| 90159-60431 | ||||
| 90164-60032 | ||||
| 90179-10112 | ||||
| 90189-06029 | ||||
| 90189-06134 | ||||
| 90460-99001 | ||||
| 90467-10018 | ||||
| 90467-11056 | ||||
| Linked diagrams | ||||
| 6709 | ||||

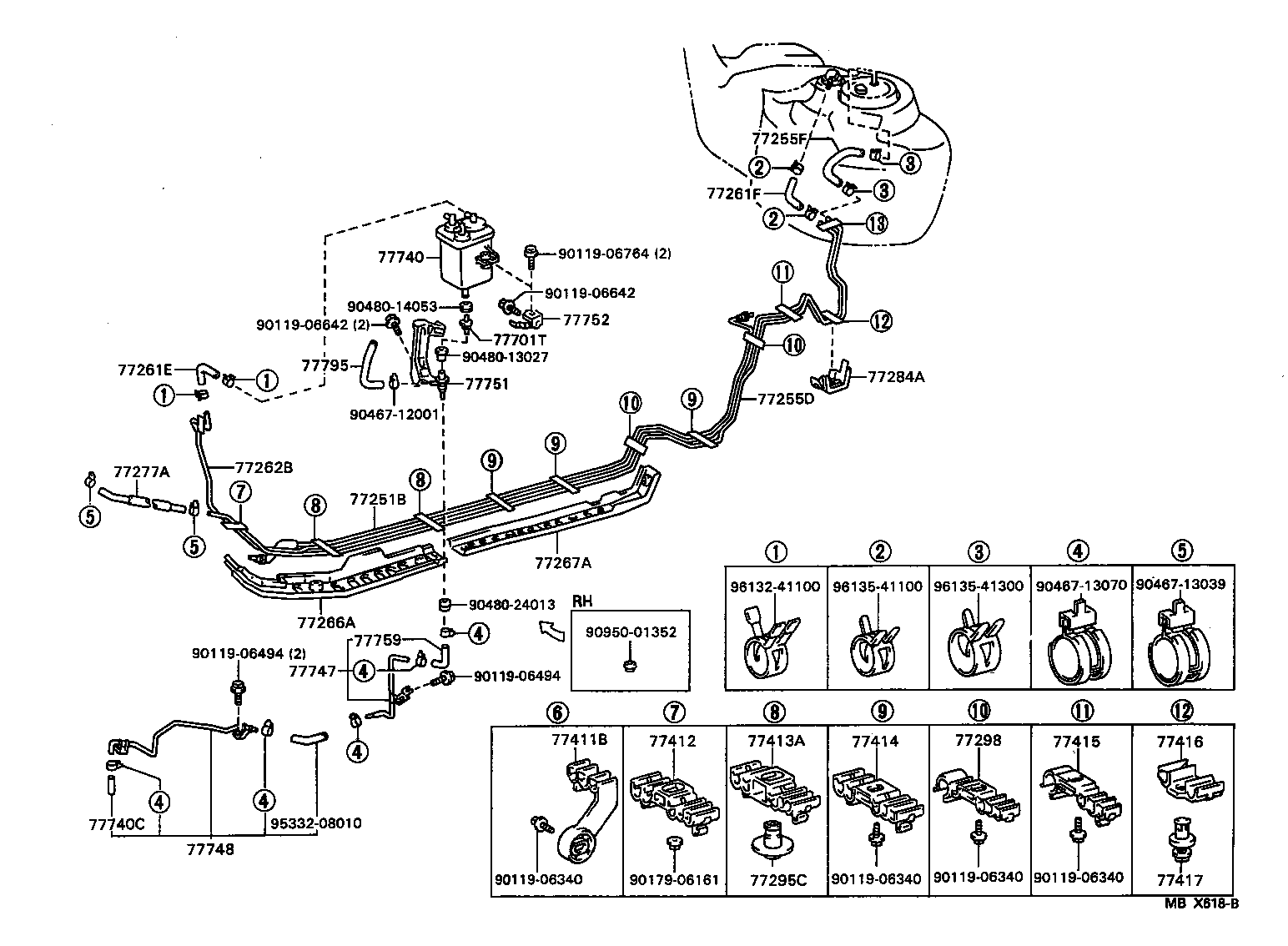

ILLUST NO. 2 OF 2(9305-9709) ; (9709- )TWT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-14410 |
JZA80 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-14410 |
JZA80 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77259-14050 |
JZA80 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
JZA80 *H,L=180 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
JZA80 *H,L=130 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-14060 |
JZA80 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-14050 |
JZA80 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-14030 |
JZA80 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-46150 |
JZA80..TWT |
1 | ||
| 23271-46150 |
JZA80 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-14020 |
JZA80 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-22090 |
JZA80 |
3 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-14030 |
JZA80 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-14010 |
JZA80 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-14010 |
JZA80 |
2 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-14010 |
JZA80 |
3 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-14010 |
JZA80 |
2 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-14010 |
JZA80 |
1 | ||
| 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 | ||||
| 77416-14010 |
JZA80 |
1 | ||
| 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 | ||||
| 77417-14010 |
JZA80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10079 |
JZA80..TWT |
1 | ||
| 90917-10079 |
JZA80 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-14471 |
JZA80..TWT |
1 | ||
| 77740-14471 |
JZA80..TWT |
1 | ||
| 77740-14470 |
JZA80..TWT |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-15064 |
JZA80 L=30 |
1 | ||
| 90445-15064 |
JZA80..TWT L=30 |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-24010 |
JZA80..TWT |
1 | ||
| 77747-24010 |
JZA80 |
1 | ||
| 77748 - PIPE, CHARCOAL CANISTER, NO.2 | ||||
| 77748-24010 |
JZA80..TWT |
1 | ||
| 77748-24010 |
JZA80 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-14180 |
JZA80..TWT |
1 | ||
| 77751-14180 |
JZA80 |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77752-14050 |
JZA80..TWT |
1 | ||
| 77752-14050 |
JZA80 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-24010 |
JZA80..TWT |
1 | ||
| 77759-24010 |
JZA80 |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-14010 |
JZA80..TWT |
1 | ||
| 77795-14010 |
JZA80 |
1 | ||
| Common parts | ||||
| 90119-06340 | ||||
| 90119-06494 | ||||
| 90119-06642 | ||||
| 90119-06764 | ||||
| 90179-06161 | ||||
| 90467-12001 | ||||
| 90467-13039 | ||||
| 90467-13070 | ||||
| 90480-13027 | ||||
| 90480-14053 | ||||
| 90480-24013 | ||||
| 90950-01352 | ||||
| 95332-08010 | ||||
| 96132-41100 | ||||
| 96135-41100 | ||||
| 96135-41300 | ||||
