JZA80L-AJFVZA (1993)
Toyota Supra
Production
May 1993
-
Aug 1998
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

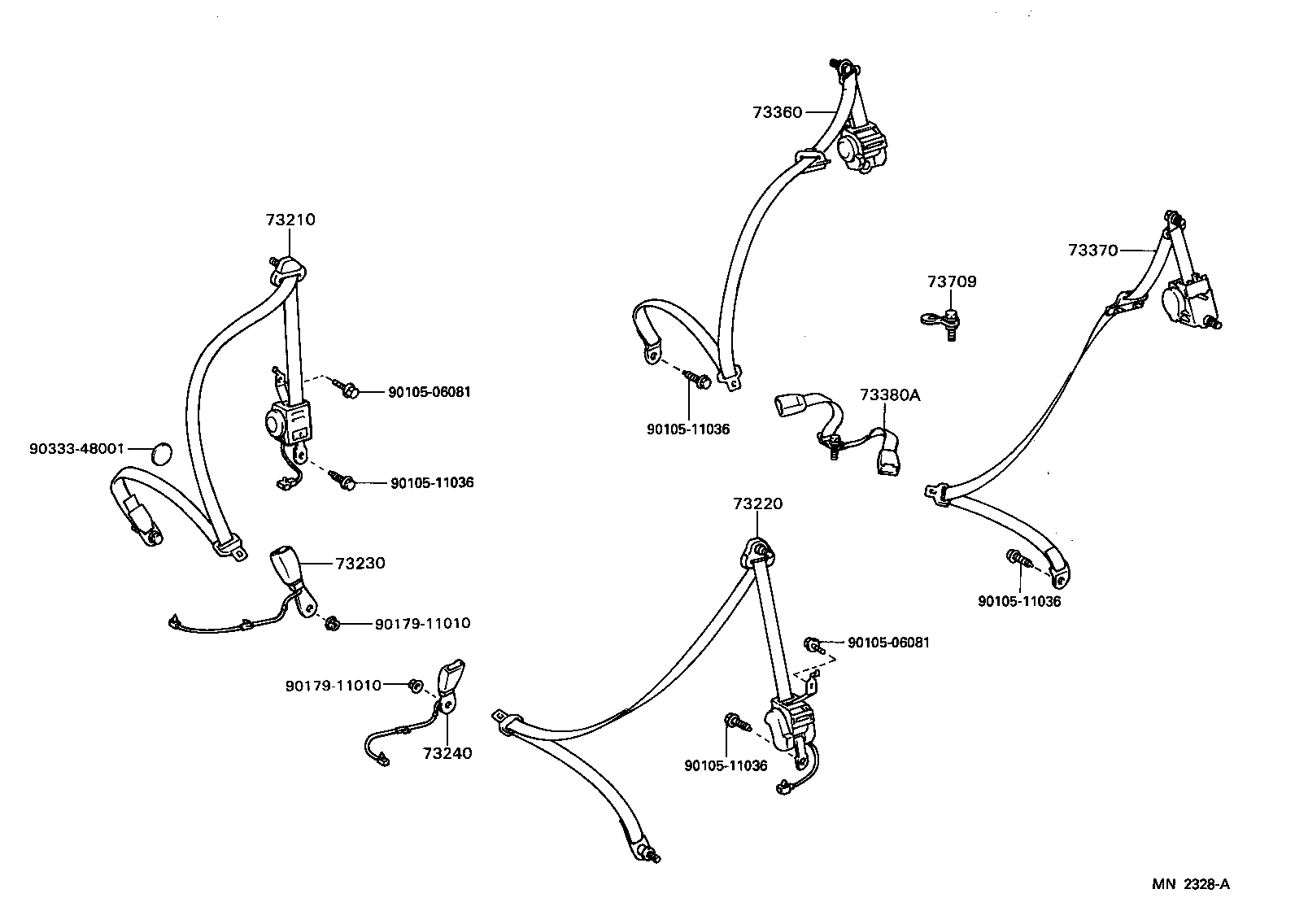

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-14550C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73210-14551C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73210-14552C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-14492C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73220-14490C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73220-14491C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-14490C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-14490C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-14304C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73360-14301C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73360-14300C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73360-14303C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73360-14302C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-14181C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73370-14180C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73370-14184C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73370-14183C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73370-14182C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-14212C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73380-14210C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73380-14211C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90105-06081 | ||||
| 90105-11036 | ||||
| 90179-11010 | ||||
| 90333-48001 | ||||
