JZA80L-AJFVZA (1993)
Toyota Supra
Production
May 1993
-
Aug 1998
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305-9808)

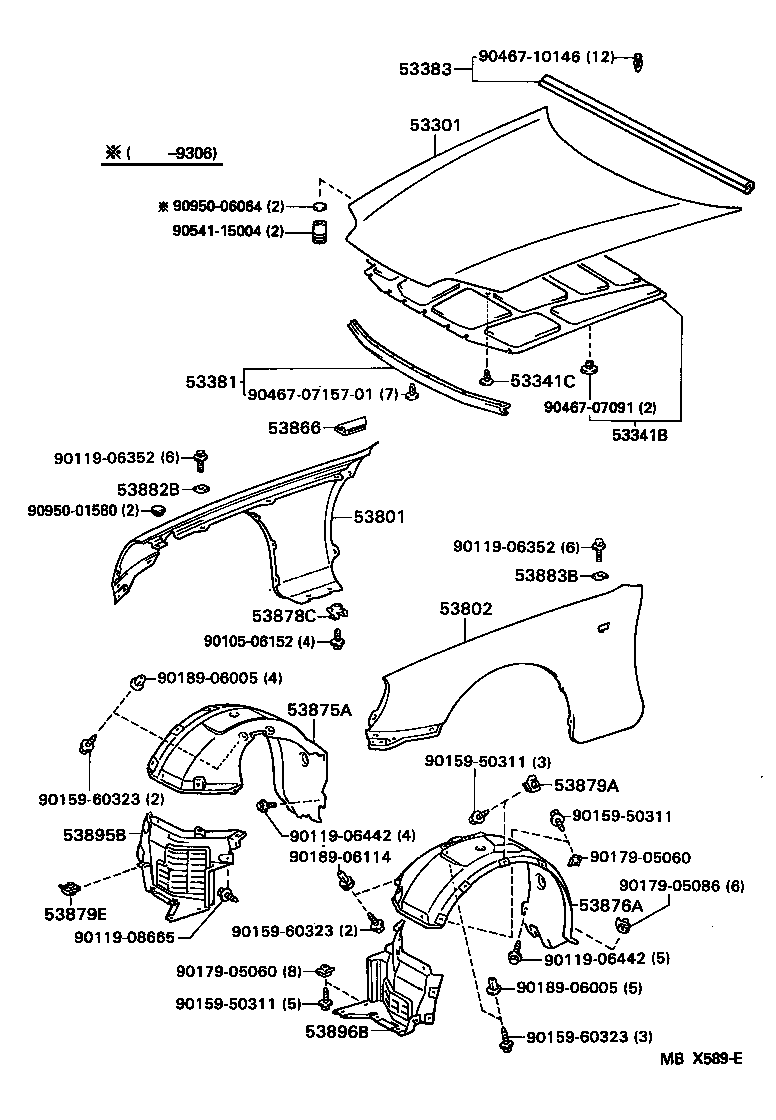

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-14340 |
JZA80 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-14110 |
JZA80 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-08124 |
JZA80 |
10 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-14130 |
JZA80 |
1 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-14120 |
JZA80 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-14880 |
JZA80 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-14860 |
JZA80 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-14030 |
JZA80 |
2 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-14190 |
JZA80 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-14190 |
JZA80 |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-50010 |
JZA80 |
4 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-22030 |
JZA80 |
6 | ||
| 53879E - SPACER, FRONT FENDER, LH | ||||
| 53879-17020 |
JZA80 |
2 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
JZA80 |
3 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
JZA80 |
3 | ||
| 53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH | ||||
| 53895-14010 |
JZA80 |
1 | ||
| 53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH | ||||
| 53896-14010 |
JZA80 |
1 | ||
| Common parts | ||||
| 90105-06152 | ||||
| 90119-06352 | ||||
| 90119-06442 | ||||
| 90119-08665 | ||||
| 90159-50311 | ||||
| 90159-60323 | ||||
| 90179-05060 | ||||
| 90179-05086 | ||||
| 90189-06005 | ||||
| 90189-06114 | ||||
| 90467-07091 | ||||
| 90467-0715701 | ||||
| 90467-10146 | ||||
| 90541-15004 | ||||
| 90950-01580 | ||||
| 90950-06064 | ||||
