DB82R-ZSRW (2019)
Toyota Supra
Production
Mar 2019
-
Jun 2020
Engine
B48L
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1903- )

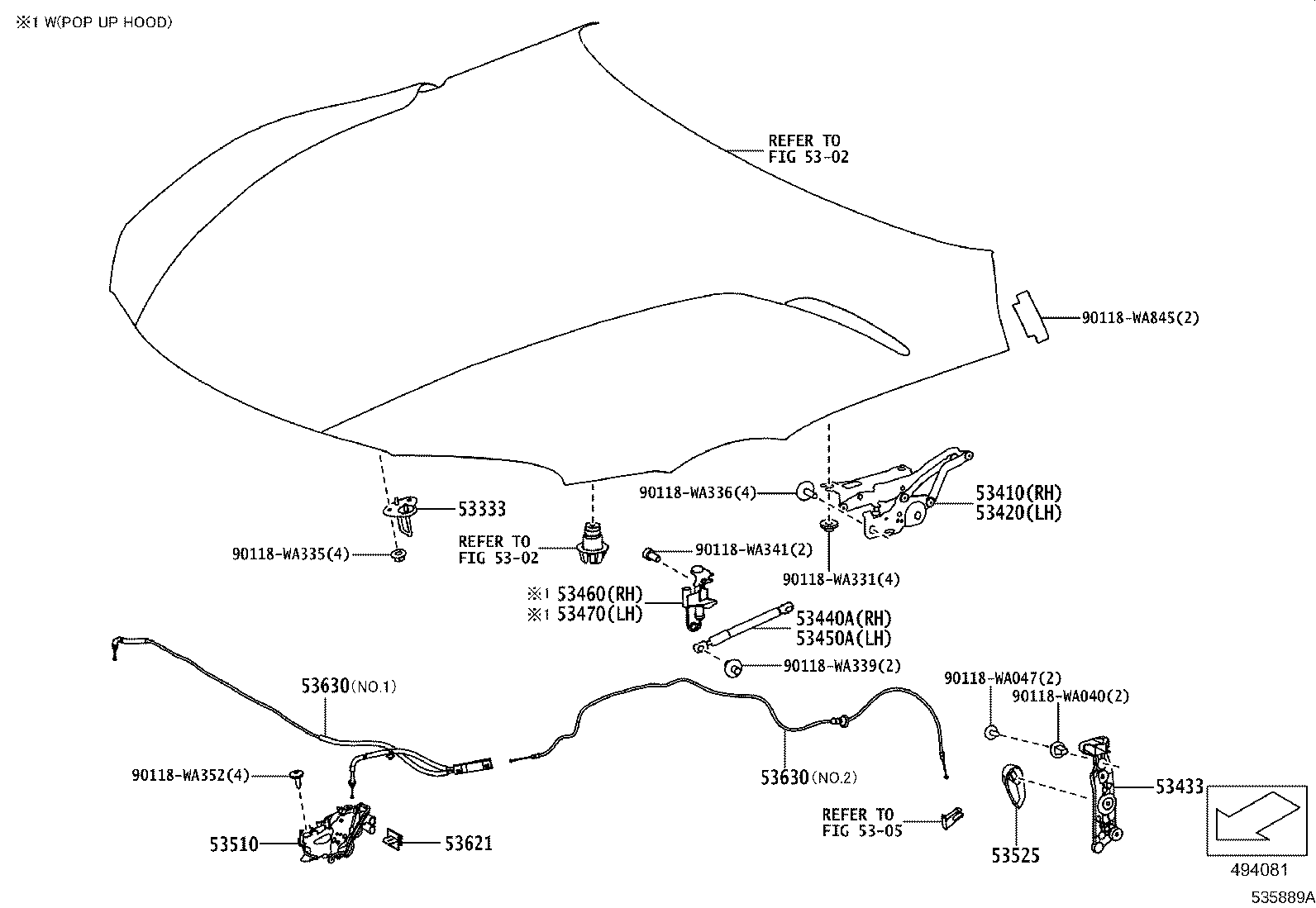

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53333 - STRIKER, HOOD LOCK | ||||
| 53306-WAA01 |
DB82 |
2 | ||
| 53306-WAA01 |
DB2#,4#,81 |
2 | ||
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-WAA01 |
DB82 |
1 | ||
| 53410-WAA01 |
DB2#,4#,81 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-WAA01 |
DB2#,4#,81 |
1 | ||
| 53420-WAA01 |
DB82 |
1 | ||
| 53433 - BRACKET, HOOD SUPPORT | ||||
| 55771-WAA02 |
DB82 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-WAA01 |
DB2#,4#,81 |
1 | ||
| 53440-WAA01 |
DB82 |
1 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53440-WAA01 |
DB2#,4#,81 |
1 | ||
| 53440-WAA01 |
DB82 |
1 | ||
| 53460 - LIFTER ASSY, POP UP HOOD, RH | ||||
| 53460-WAA01 |
DB2#,4#,81 POP UP HOOD-WITH |
1 | ||
| 53460-WAA01 |
DB82 POP UP HOOD-WITH |
1 | ||
| 53470 - LIFTER ASSY, POP UP HOOD, LH | ||||
| 53470-WAA01 |
DB82 POP UP HOOD-WITH |
1 | ||
| 53470-WAA01 |
DB2#,4#,81 POP UP HOOD-WITH |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-WAA01 |
DB82 RH |
1 | ||
| 53510-WAA04 |
DB82 POP UP HOOD-WITH,LH |
1 | ||
| 53510-WAA02 |
DB82 POP UP HOOD-WITH,RH |
1 | ||
| 53510-WAA01 |
DB2#,4#,81 RH |
1 | ||
| 53510-WAA03 |
DB2#,4#,81 LH |
1 | ||
| 53510-WAA03 |
DB82 LH |
1 | ||
| 53510-WAA04 |
DB2#,4#,81 POP UP HOOD-WITH,LH |
1 | ||
| 53510-WAA02 |
DB2#,4#,81 POP UP HOOD-WITH,RH |
1 | ||
| 53525 - PROTECTOR, HOOD LOCK RELEASE LEVER | ||||
| 53601-WAA02 |
DB82 |
1 | ||
| 53621 - BRACKET, HOOD LOCK CONTROL CABLE | ||||
| 90118-WA337 |
DB82 |
3 | ||
| 90118-WA337 |
DB2#,4#,81 |
3 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 63630-WAA01 |
DB82 NO.2 |
1 | ||
| 53630-WAA01 |
DB2#,4#,81 NO.1 |
1 | ||
| 53630-WAA01 |
DB82 NO.1 |
1 | ||
| 63630-WAA01 |
DB2#,4#,81 NO.2 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 63630-WAA01 |
DB82 NO.2 |
1 | ||
| 53630-WAA01 |
DB2#,4#,81 NO.1 |
1 | ||
| 53630-WAA01 |
DB82 NO.1 |
1 | ||
| 63630-WAA01 |
DB2#,4#,81 NO.2 |
1 | ||
| Common parts | ||||
| 90118-WA040 | ||||
| 90118-WA047 | ||||
| 90118-WA331 | ||||
| 90118-WA335 | ||||
| 90118-WA336 | ||||
| 90118-WA339 | ||||
| 90118-WA341 | ||||
| 90118-WA352 | ||||
| 90118-WA845 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 5305 | ||||
