DB82R-ZSRW (2019)
Toyota Supra
Production
Mar 2019
-
Jun 2020
Engine
B48L
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

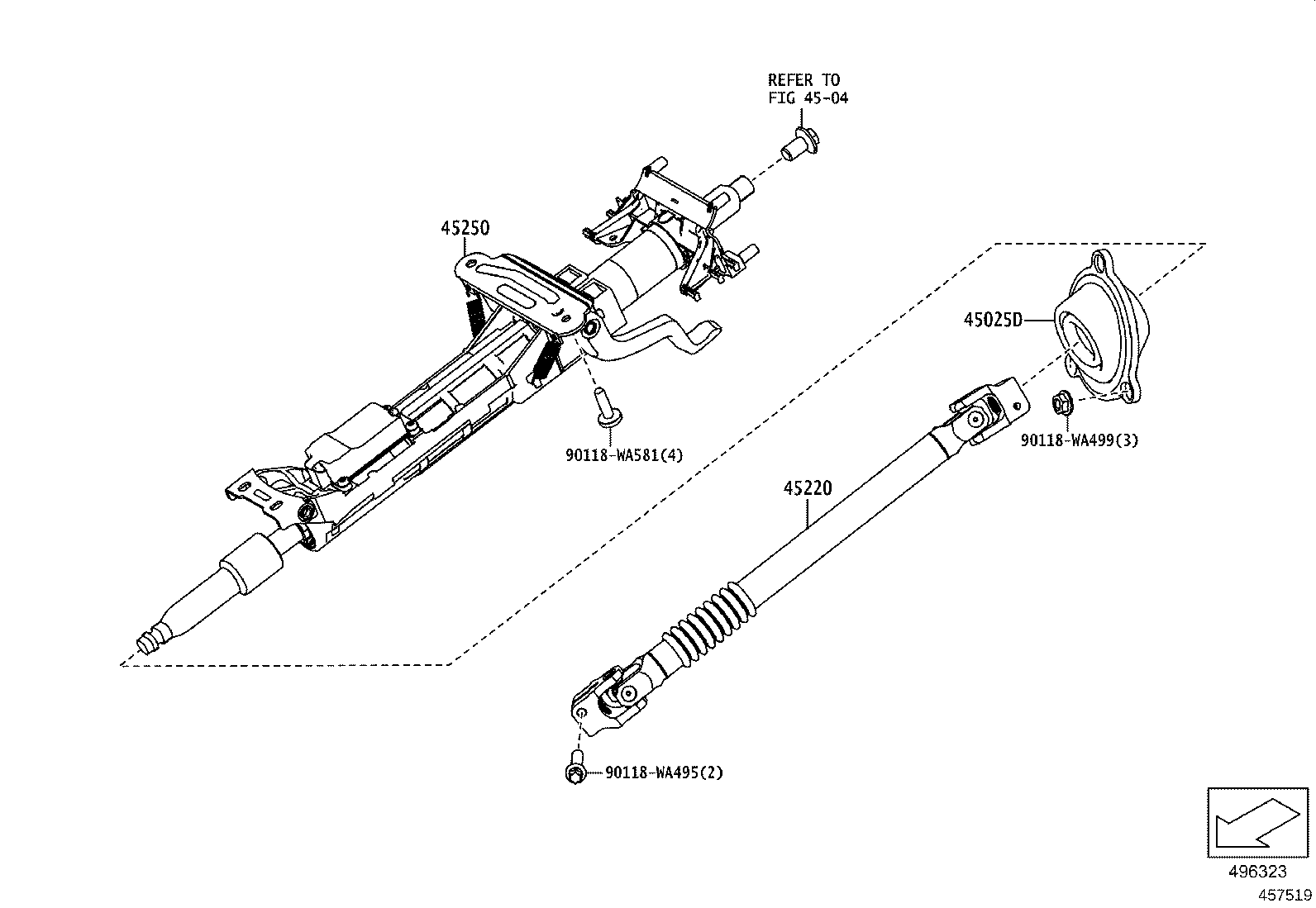

ILLUST NO. 1 OF 2(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-WAA01 |
DB82 |
1 | ||
| 45025-WAA01 |
DB2#,4#,81 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45260-WAA02 |
DB82 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-WAA02 |
DB82 |
1 | ||
| 45250-WAA02 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA495 | ||||
| 90118-WA499 | ||||
| 90118-WA581 | ||||
| Linked diagrams | ||||
| 4504 | ||||

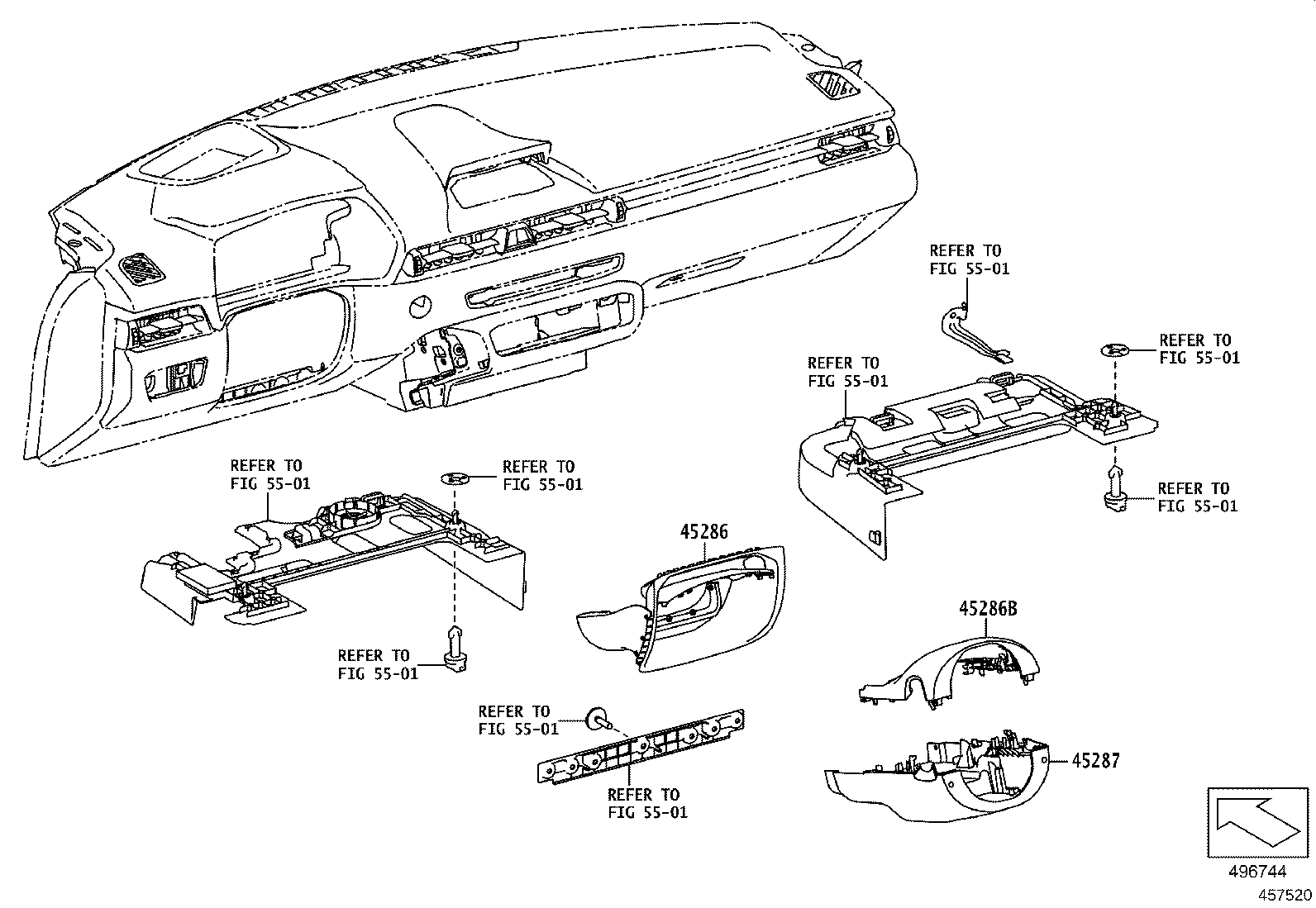

ILLUST NO. 2 OF 2(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45286 - COVER, STEERING COLUMN | ||||
| 55410-WAA03 |
DB82 |
1 | ||
| 55410-WAA03 |
DB2#,4#,81 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-WAA01 |
DB2#,4#,81 |
1 | ||
| 45286-WAA01 |
DB82 |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-WAA01 |
DB82 |
1 | ||
| 45287-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
