DB81L-ZSLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

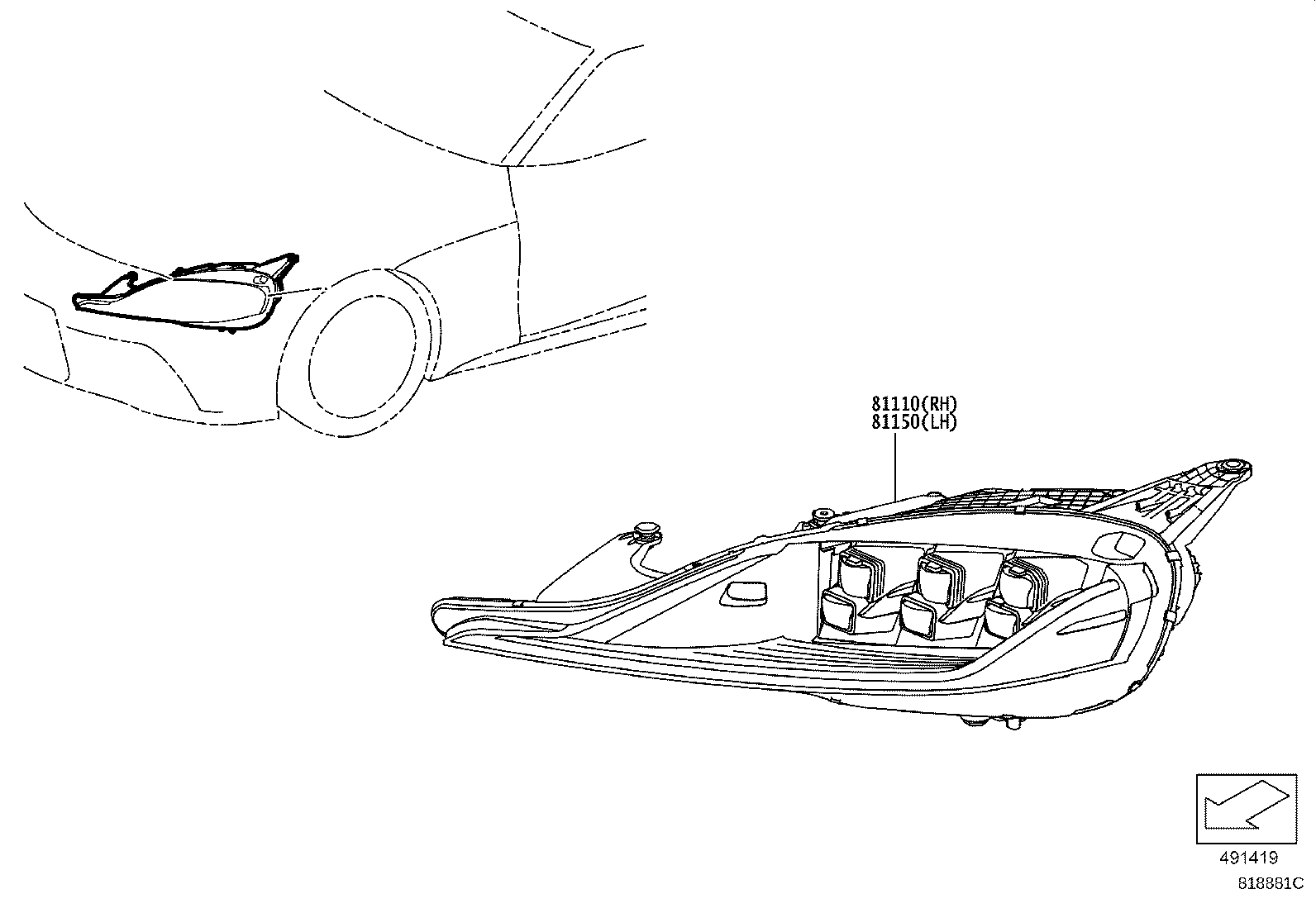

ILLUST NO. 1 OF 3(1903- )

Click highlighted areas on diagram

diagram 81110 81150
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81145-WAA01

DB21,41,81

 1
81145-WAA04

DB21,41,81

HEADLAMP-LED

 1
81145-WAA06

DB01,21,41,81

 1
81145-WAA07

DB01,21,41,81

HEADLAMP-LED

 1
81150 - HEADLAMP ASSY, LH
81185-WAA01

DB21,41,81

 1
81185-WAA07

DB01,21,41,81

HEADLAMP-LED

 1
81185-WAA06

DB01,21,41,81

 1
81185-WAA04

DB21,41,81

HEADLAMP-LED

 1

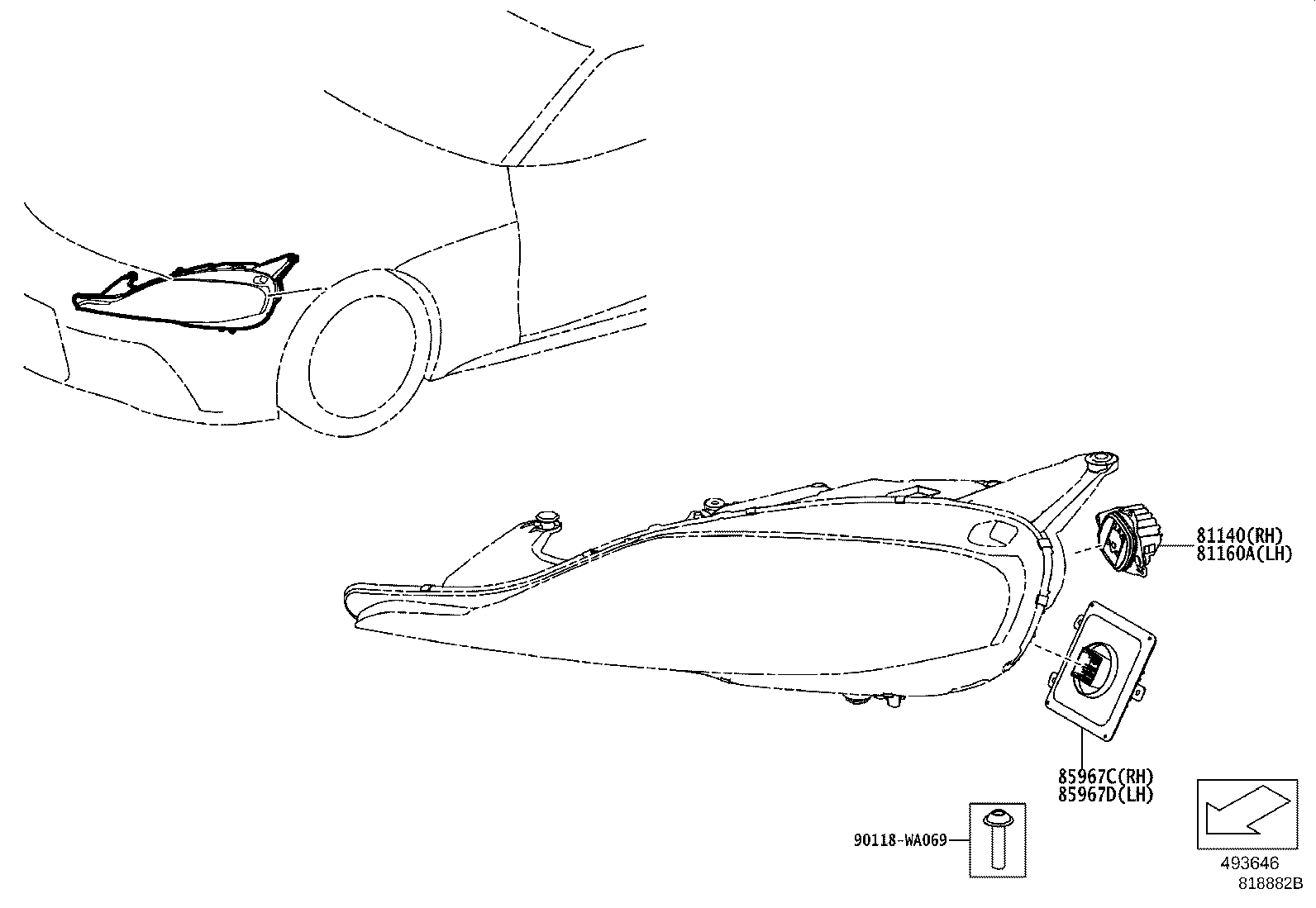

ILLUST NO. 2 OF 3(1903- )

Click highlighted areas on diagram

diagram 81140 81160A 85967C 85967D 90118WA069
Part # Description Qty Price
81140 - UNIT ASSY, HEADLAMP LED, RH
81140-WAA01

DB2#,4#,81

 1
81160A - UNIT ASSY, HEADLAMP LED, LH
81170-WAA01

DB2#,4#,81

 1
85967C - COMPUTER, LIGHT CONTROL LED, RH
85967-WAA01

DB2#,4#,81

 1
85967-WAA02

DB2#,4#,81

HEADLAMP-LED

 1
85967D - COMPUTER, LIGHT CONTROL LED, LH
85967-WAA01

DB2#,4#,81

 1
85967-WAA02

DB2#,4#,81

HEADLAMP-LED

 1
Common parts
90118-WA069

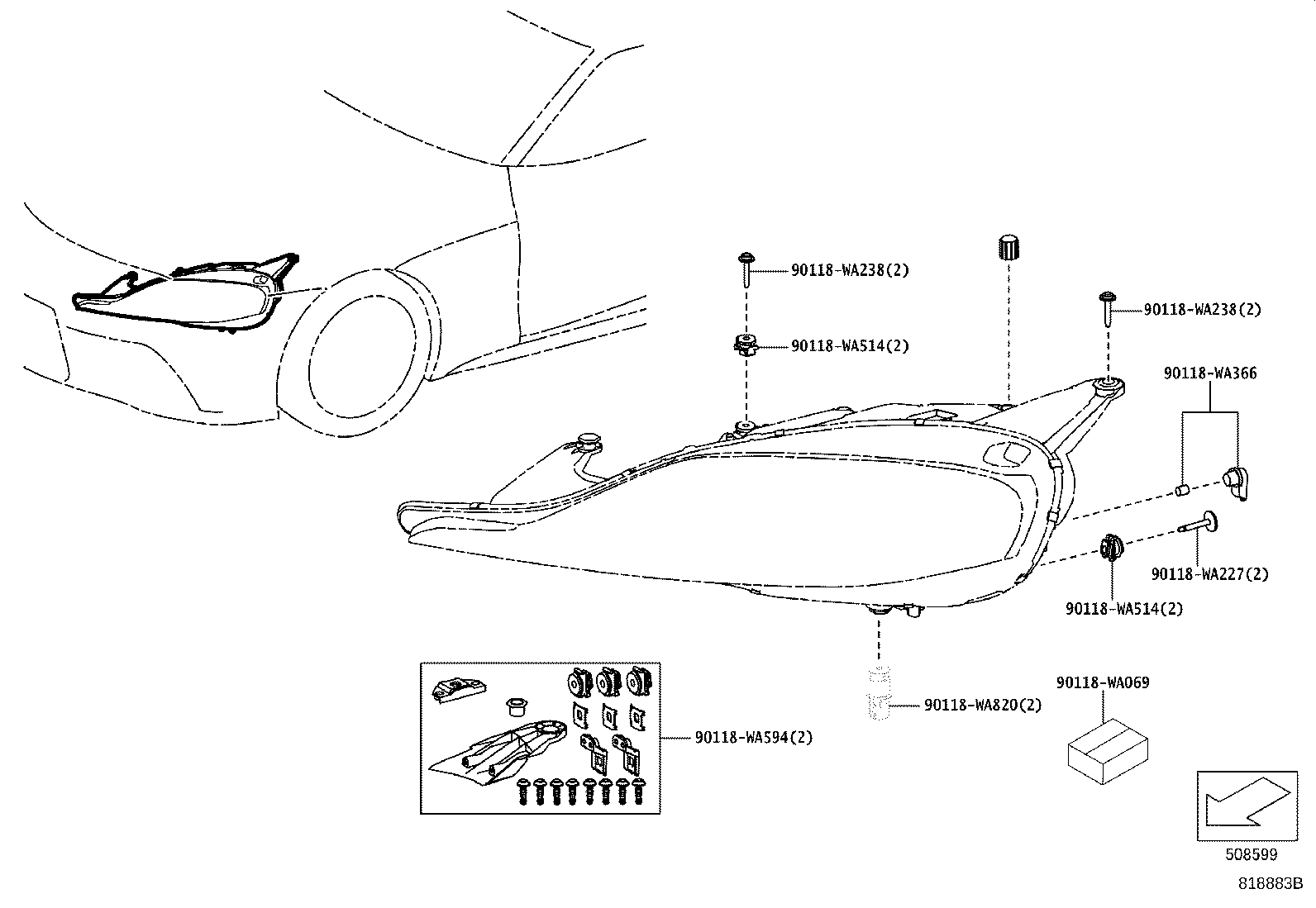

ILLUST NO. 3 OF 3(1903- )

Click highlighted areas on diagram

diagram 90118WA069 90118WA227 90118WA238 90118WA238 90118WA366 90118WA514 90118WA514 90118WA594 90118WA820
Part # Description Qty Price
Common parts
90118-WA069
90118-WA227
90118-WA238
90118-WA366
90118-WA514
90118-WA594
90118-WA820
