DB81L-ZSLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

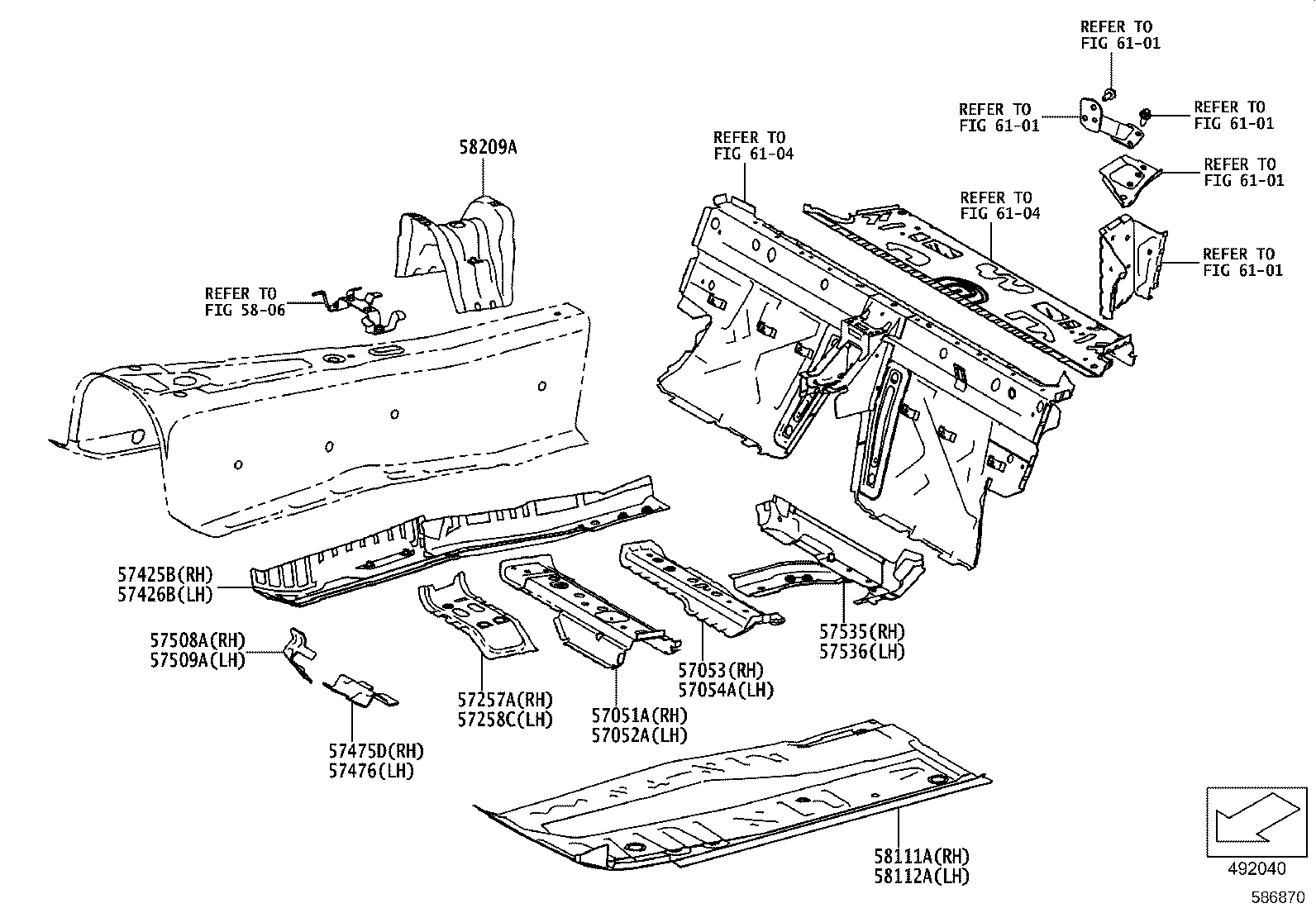

ILLUST NO. 1 OF 5(1903- )

Click highlighted areas on diagram

diagram 57051A 57052A 57053 57054A 57257A 57258C 57425B 57426B 57475D 57476 57508A 57509A 57535 57536 5806 58111A 58112A 58209A 6101 6101 6101 6101 6101 6104 6104
Part # Description Qty Price
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-WAA01

DB2#,4#,81

 1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-WAA01

DB2#,4#,81

 1
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57053-WAA01

DB2#,4#,81

 1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57054-WAA01

DB2#,4#,81

 1
57257A - BRACKET, ENGINE REAR MOUNTING MEMBER, RH
58017-WAA01

DB2#,4#,81

 1
57258C - BRACKET, ENGINE REAR MOUNTING MEMBER, LH
58018-WAA01

DB2#,4#,81

 1
57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH
57427-WAA01

DB2#,4#,81

 1
57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH
57428-WAA01

DB2#,4#,81

 1
57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH
58185-WAA01

DB21,41,81

 1
57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
55151-WAA01

DB21,41,81

 1
57535 - BRACE, FRONT FLOOR, RH
57505-WAA01

DB2#,4#,81

 1
57536 - BRACE, FRONT FLOOR, LH
57506-WAA01

DB2#,4#,81

 1
58111A - PAN, FRONT FLOOR, RH
58111-WAA01

DB2#,4#,81

 1
58112A - PANEL, FRONT FLOOR, LH
58112-WAA01

DB2#,4#,81

 1
58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58209-WAA01

DB2#,4#,81

 1
Linked diagrams
5806
6101
6104

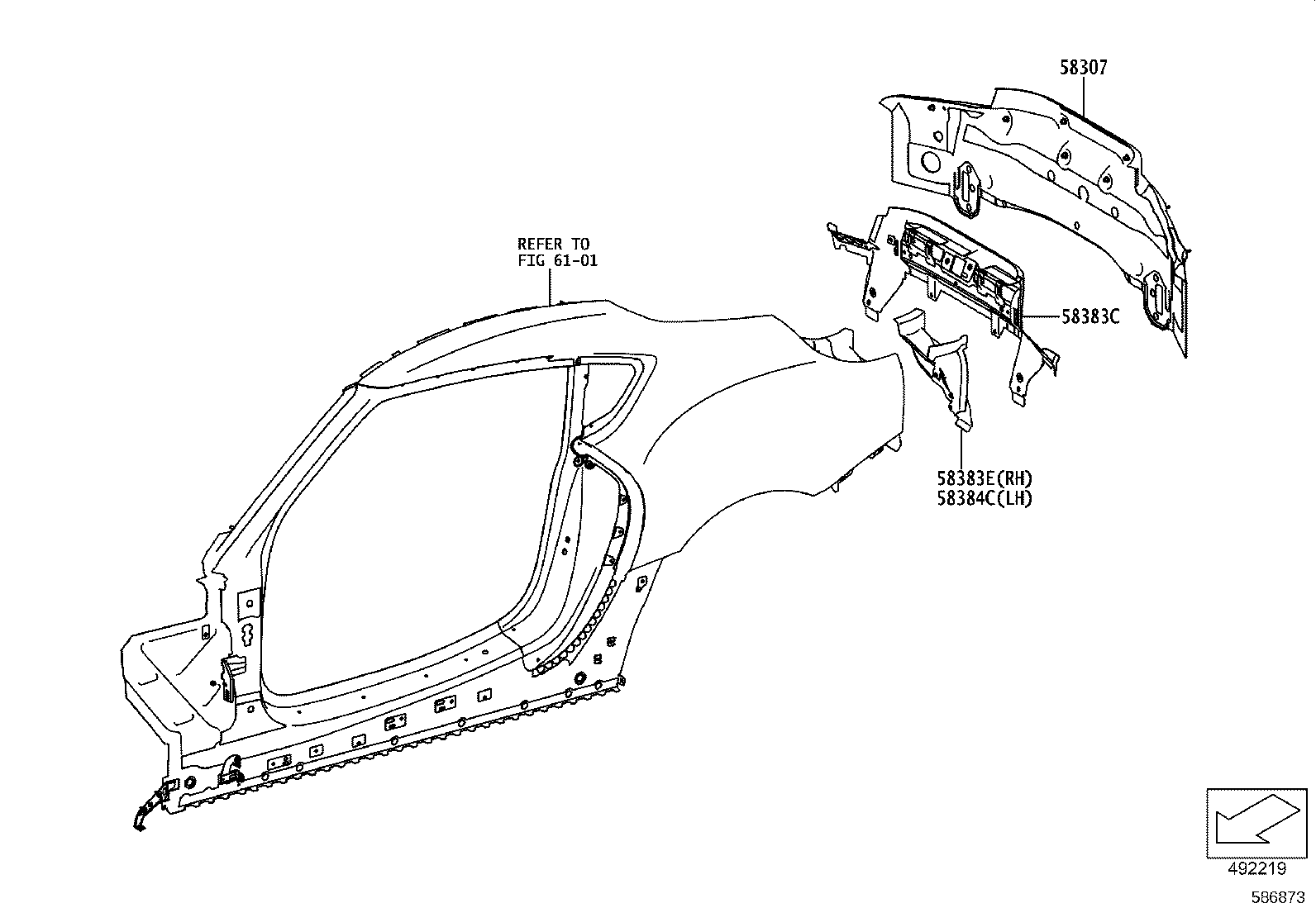

ILLUST NO. 2 OF 5(1903- )

Click highlighted areas on diagram

diagram 58307 58383C 58383E 58384C 6101
Part # Description Qty Price
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-WAA01

DB2#,4#,81

 1
58383C - REINFORCEMENT, BODY LOWER BACK PANEL, INNER
58302-WAA01

DB2#,4#,81

 1
58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH
61621-WAA01

DB2#,4#,81

 1
58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH
61622-WAA01

DB2#,4#,81

 1
Linked diagrams
6101

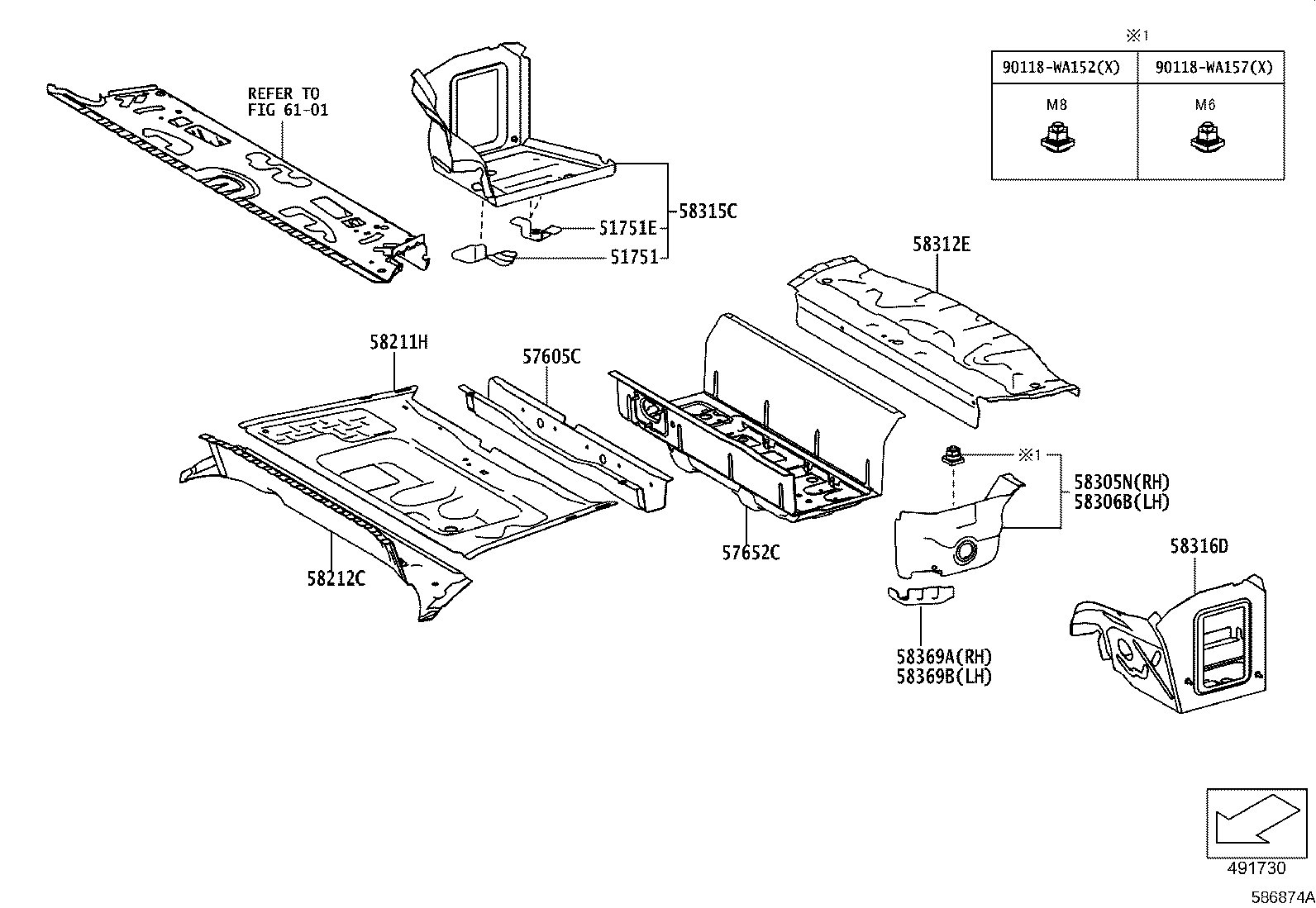

ILLUST NO. 3 OF 5(1903- )

Click highlighted areas on diagram

diagram 51751 51751E 57605C 57652C 58211H 58212C 58305N 58306B 58312E 58315C 58316D 58369A 58369B 6101 90118WA152 90118WA157
Part # Description Qty Price
51751 - BRACKET, BODY SUPPORT, NO.1
90118-WA434

DB2#,4#,81

 1
51751E - BRACKET, BODY SUPPORT, NO.1 RH
58313-WAA01

DB2#,4#,81

 2
57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS
57653-WAA01

DB2#,4#,81

 1
57652C - MEMBER, REAR FLOOR CROSS, NO.1
57652-WAA01

DB2#,4#,81

 1
58211H - PAN, CENTER FLOOR
58211-WAA01

DB2#,4#,81

 1
58212C - PAN, CENTER FLOOR, FRONT
57652-WAA02

DB2#,4#,81

 1
58305N - EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58305-WAA02

DB2#,4#,81

 1
58306B - EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58306-WAA01

DB2#,4#,81

 1
58312E - PANEL, REAR FLOOR, REAR
58311-WAA01

DB2#,4#,81

 1
58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH
58315-WAA01

DB2#,4#,81

 1
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-WAA01

DB2#,4#,81

 1
58369A - BRACKET, FUEL TUBE, NO.3
58369-WAA02

DB2#,4#,81

 1
58369B - BRACKET, FUEL TUBE, NO.3
58369-WAA01

DB2#,4#,81

 1
Common parts
90118-WA152
90118-WA157
Linked diagrams
6101

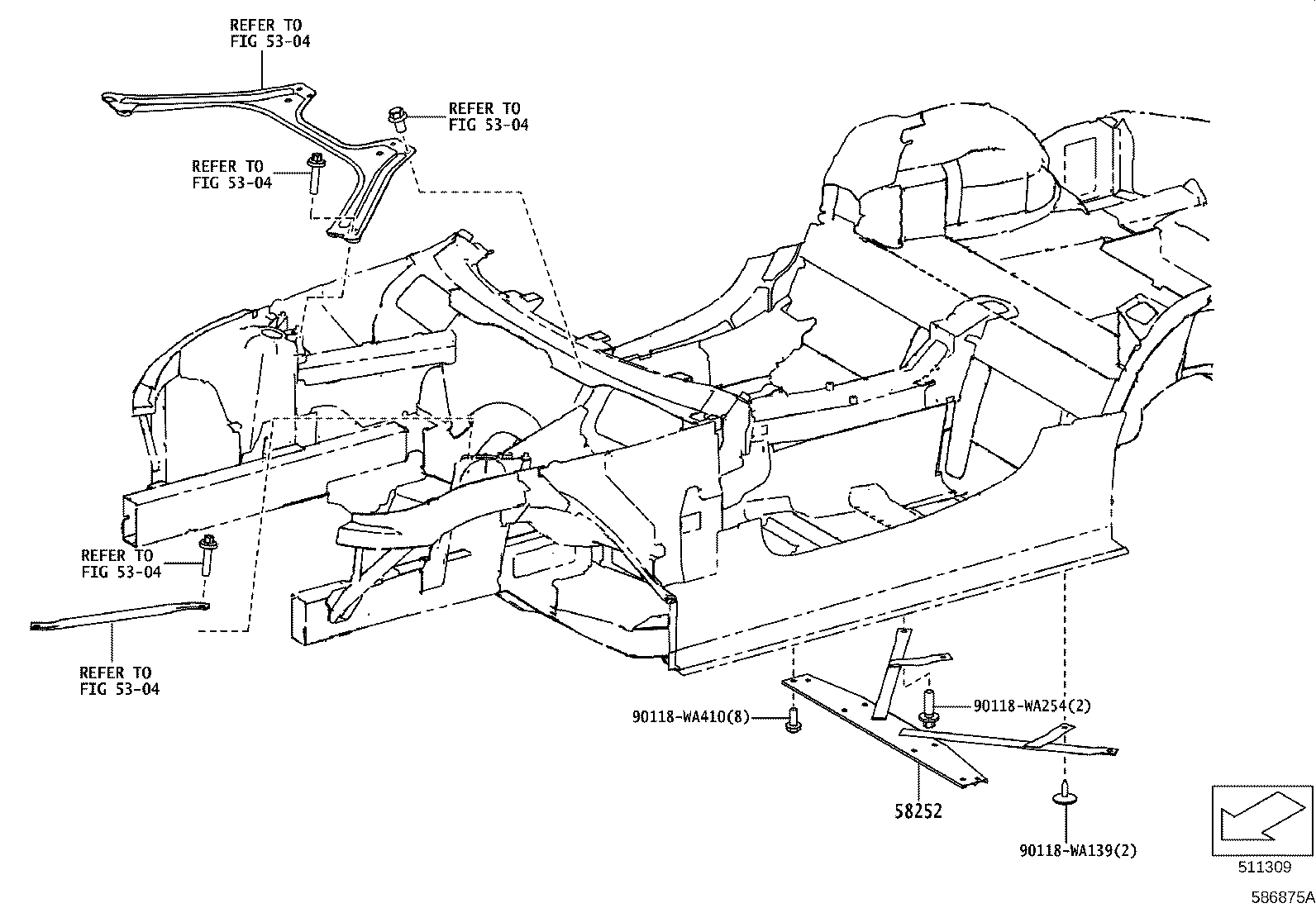

ILLUST NO. 4 OF 5(1903- )

Click highlighted areas on diagram

diagram 5304 5304 5304 5304 5304 58252 90118WA139 90118WA254 90118WA410
Part # Description Qty Price
58252 - BRACE, FLOOR PANEL, REAR
57533-WAA01

DB2#,4#,81

 1
Common parts
90118-WA139
90118-WA254
90118-WA410
Linked diagrams
5304

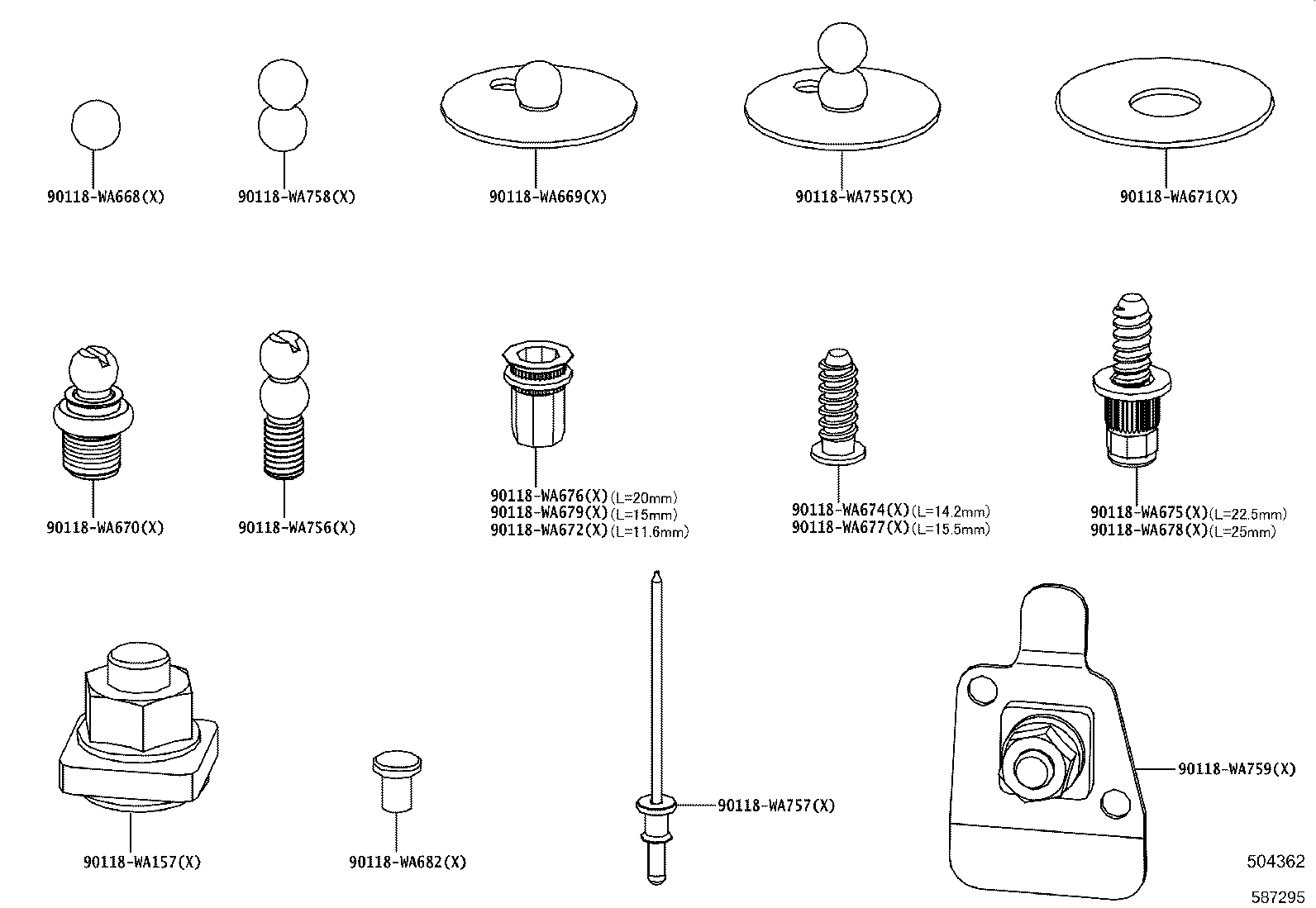

ILLUST NO. 5 OF 5(1903- )

Click highlighted areas on diagram

diagram 90118WA157 90118WA668 90118WA669 90118WA670 90118WA671 90118WA672 90118WA674 90118WA675 90118WA676 90118WA677 90118WA678 90118WA679 90118WA682 90118WA755 90118WA756 90118WA757 90118WA758 90118WA759
Part # Description Qty Price
Common parts
90118-WA157
90118-WA668
90118-WA669
90118-WA670
90118-WA671
90118-WA672
90118-WA674
90118-WA675
90118-WA676
90118-WA677
90118-WA678
90118-WA679
90118-WA682
90118-WA755
90118-WA756
90118-WA757
90118-WA758
90118-WA759
