DB81L-ZSLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

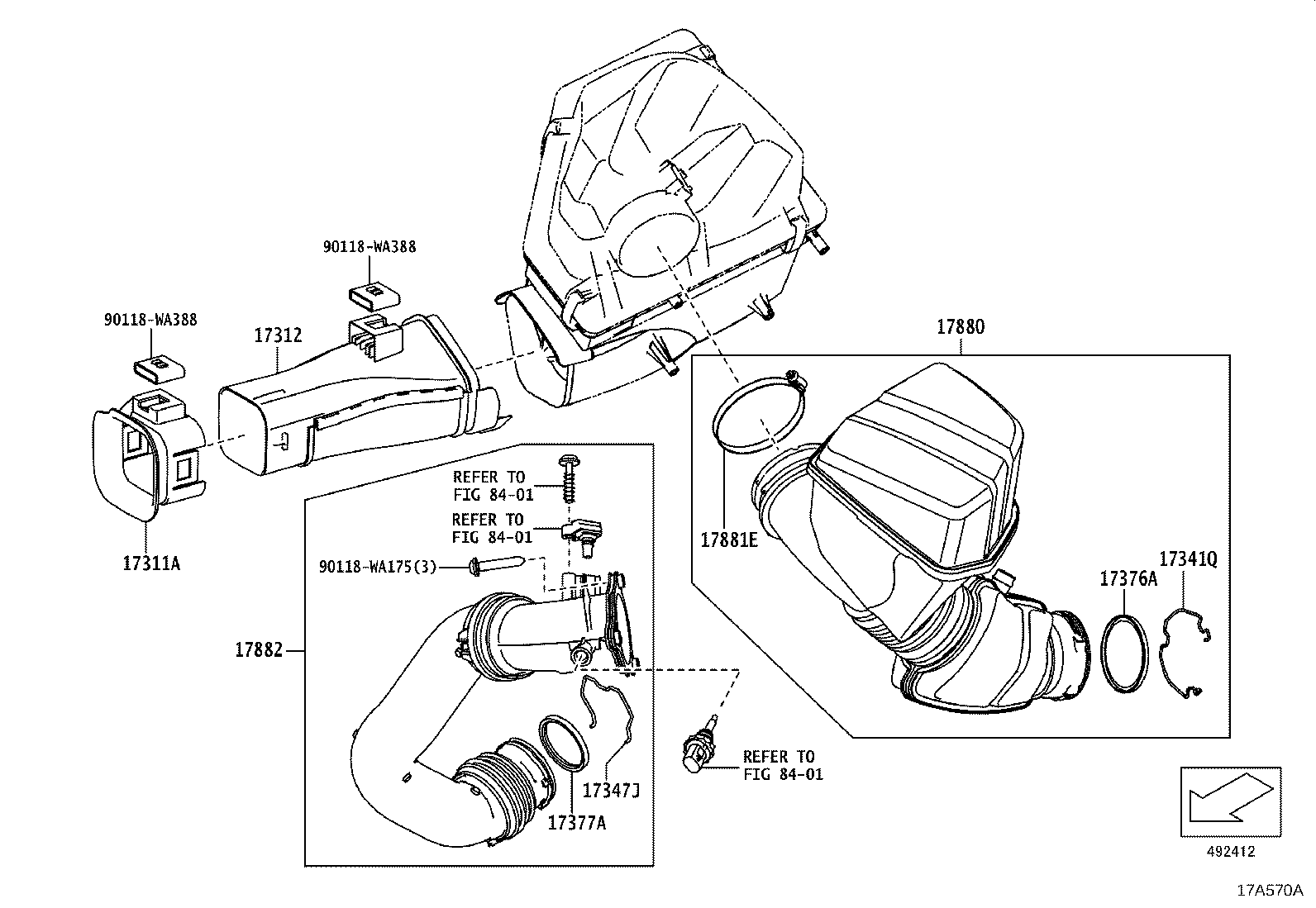

ILLUST NO. 1 OF 3(1903- )B48#

Click highlighted areas on diagram

diagram 17311A 17312 17341Q 17347J 17376A 17377A 17880 17881E 17882 8401 8401 8401 90118WA175 90118WA388 90118WA388
Part # Description Qty Price
17311A - DUCT, AIR INLET, NO.1
17752-WAA01

B48#,B58..DB2#,4#,81

 1
17312 - DUCT, AIR INLET, NO.2
17751-WAA01

B48#,B58..DB2#,4#,81

 1
17341Q - CLIP, AIR HOSE, NO.1
90118-WA173

B48#..DB2#,81

 1
90118-WA796

B48L..DB81

CHINA SPEC

 1
17347J - CLIP, AIR HOSE
90118-WA174

B48#..DB2#,81

 1
17376A - GASKET, AIR TUBE
17376-WAA01

B48#..DB2#,81

 1
17376-WAA06

B48L..DB81

CHINA SPEC

 1
17377A - GASKET, AIR TUBE, NO.2
17376-WAA03

B48#..DB2#,81

 1
17880 - HOSE ASSY, AIR CLEANER
17881-WAA03

B48#..DB2#,81

 1
17881-WAA01

B48L..DB81

CHINA SPEC

 1
17881E - CLAMP, AIR CLEANER HOSE, NO.1
90118-WA694

B48#,B58..DB2#,4#,81

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-WAA01

B48#..DB2#,81

 1
Common parts
90118-WA175
90118-WA388
Linked diagrams
8401

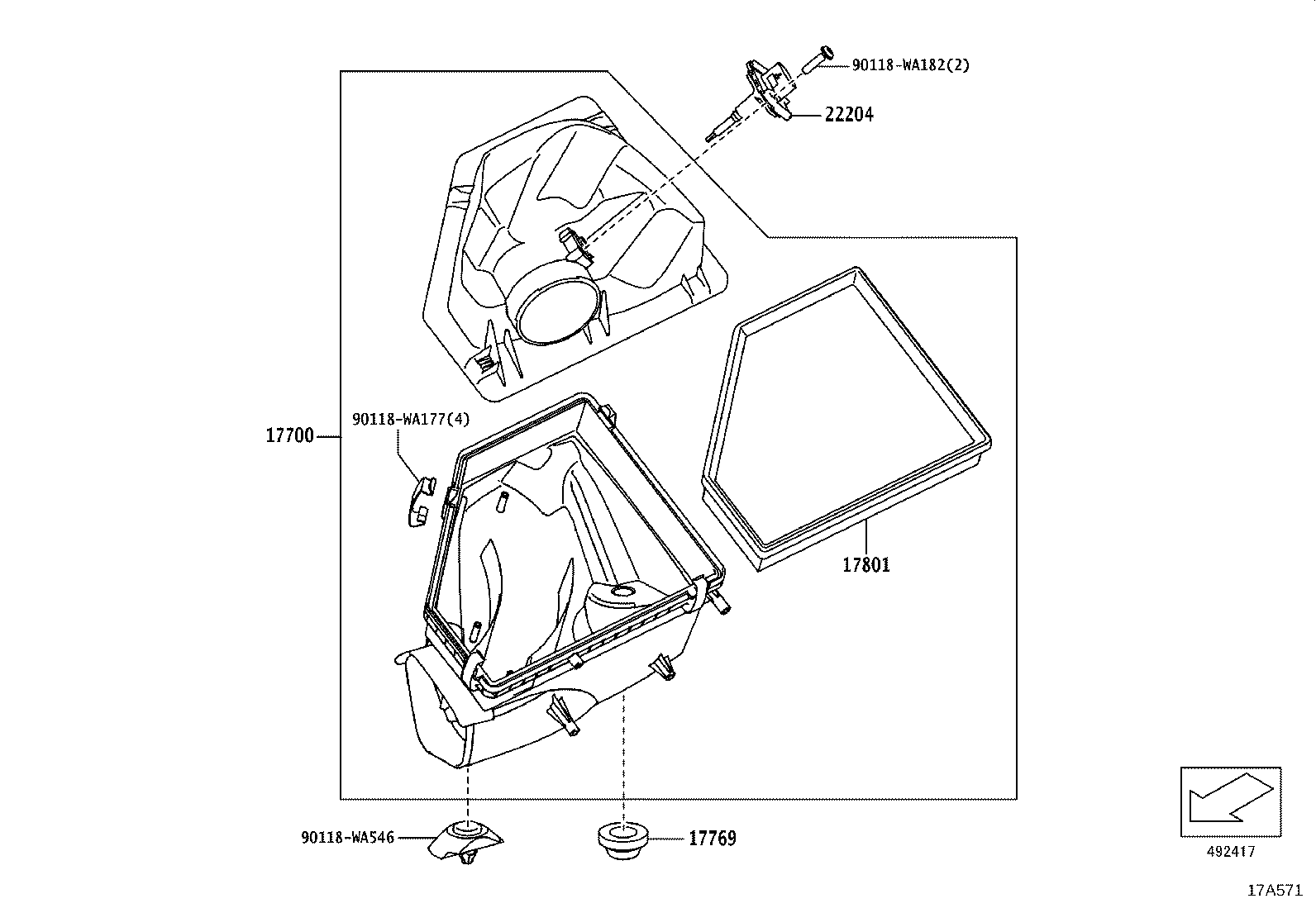

ILLUST NO. 2 OF 3(1903- )B48#

Click highlighted areas on diagram

diagram 17700 17769 17801 22204 90118WA177 90118WA182 90118WA546
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-WAA01

B48#..DB2#,81

 1
17769 - SUPPORT, AIR CLEANER
90118-WA378

B48#,B58..DB2#,4#,81

 2
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-WAA02

B48#..DB2#,81

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-WAA01

B48#,B58..DB2#,4#,81

 1
Common parts
90118-WA177
90118-WA182
90118-WA546

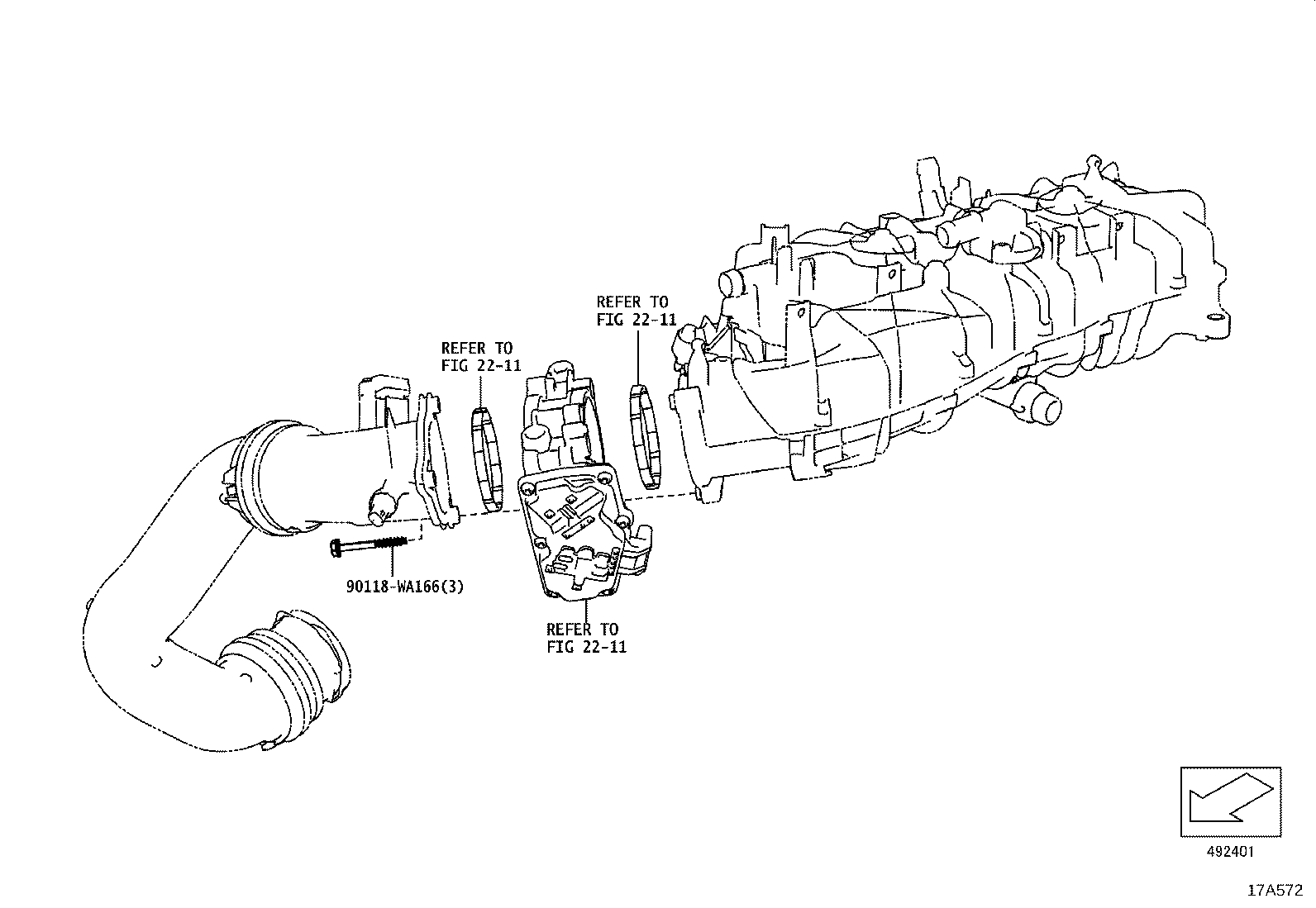

ILLUST NO. 3 OF 3(1903- )B48#

Click highlighted areas on diagram

diagram 2211 2211 2211 90118WA166
Part # Description Qty Price
Common parts
90118-WA166
Linked diagrams
2211
