DB43L-ZRLA (2019)
Toyota Supra
Production
Mar 2019
-
Feb 2020
Engine
B58
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 6(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

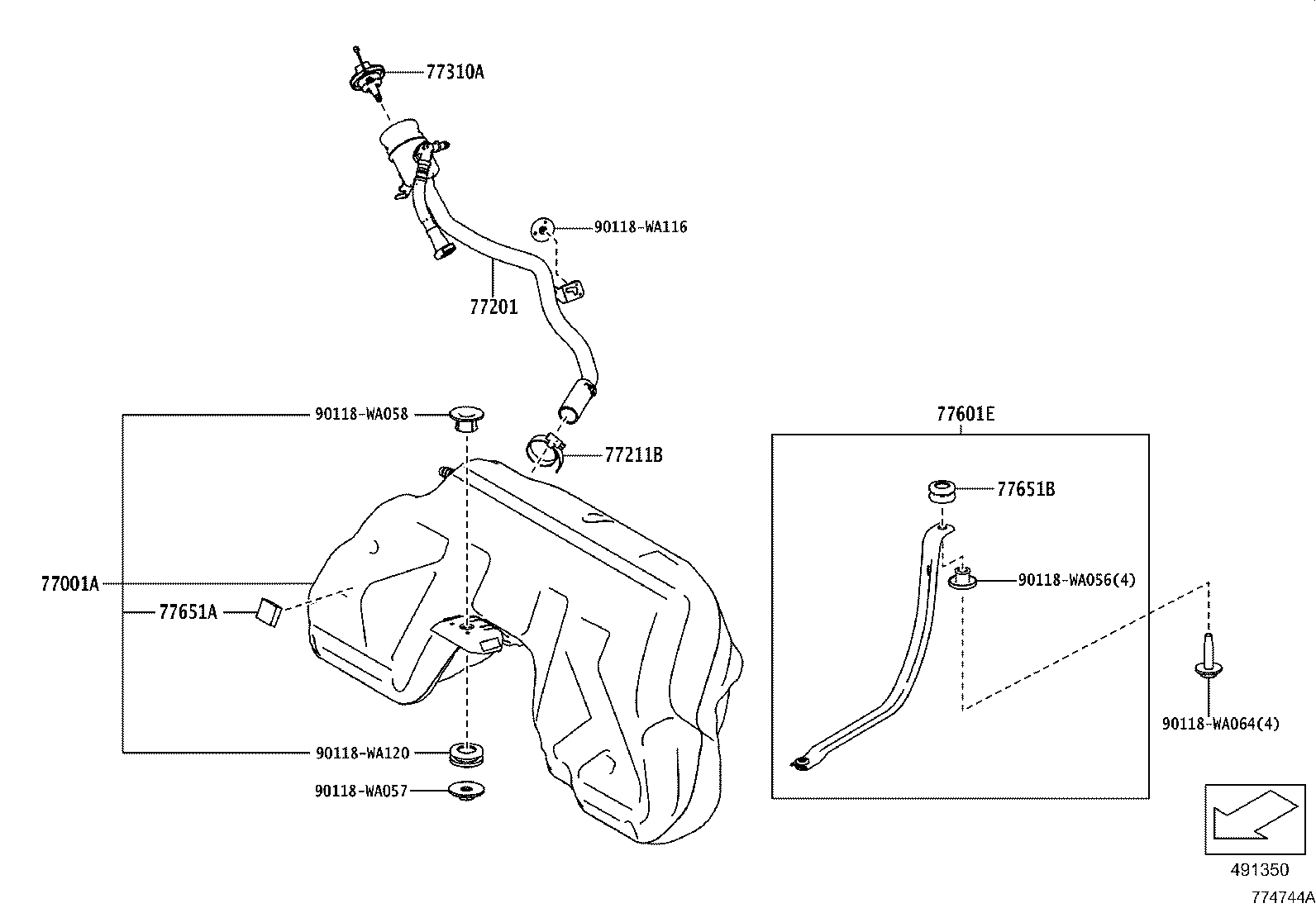

| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-WAA01 |
DB43 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77210-WAA02 |
DB43 |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90118-WA685 |
DB43 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-WAA02 |
DB43 |
1 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-WAA01 |
DB43 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-WAA01 |
DB43 |
8 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77656-WAA01 |
DB43 |
4 | ||
| Common parts | ||||
| 90118-WA056 | ||||
| 90118-WA057 | ||||
| 90118-WA058 | ||||
| 90118-WA064 | ||||
| 90118-WA116 | ||||
| 90118-WA120 | ||||
ILLUST NO. 4 OF 6(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

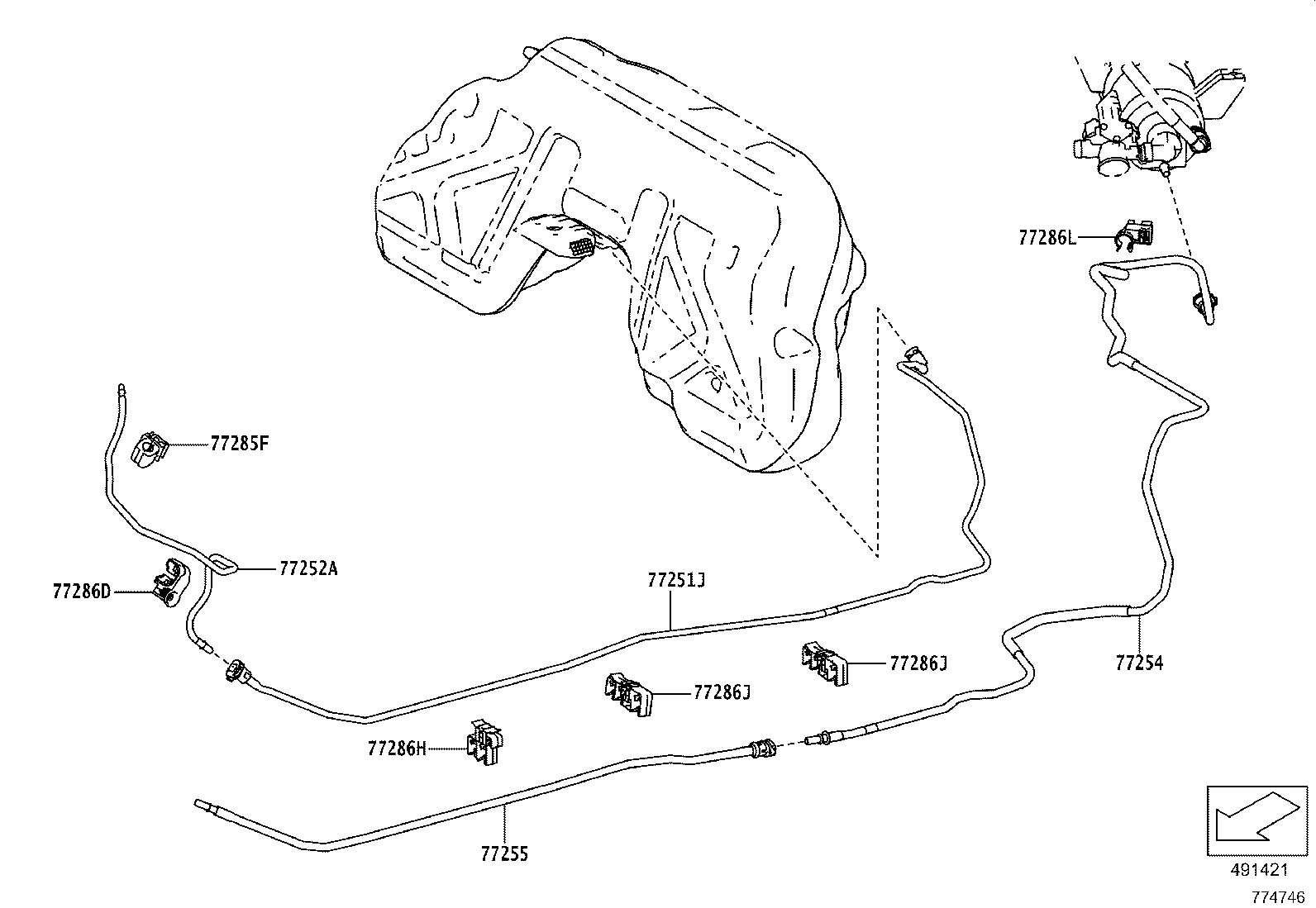

| 77251J - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-WAA01 |
DB43 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 23802-WAA01 |
DB43 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-WAA02 |
DB43 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 23827-WAA01 |
DB43 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 90118-WA066 |
DB43 |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 90118-WA096 |
DB43 |
2 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-WAA01 |
DB43 |
3 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-WAA01 |
DB43 |
3 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-WAA01 |
DB43 |
3 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 90118-WA095 |
DB43 |
2 | ||
ILLUST NO. 5 OF 6(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

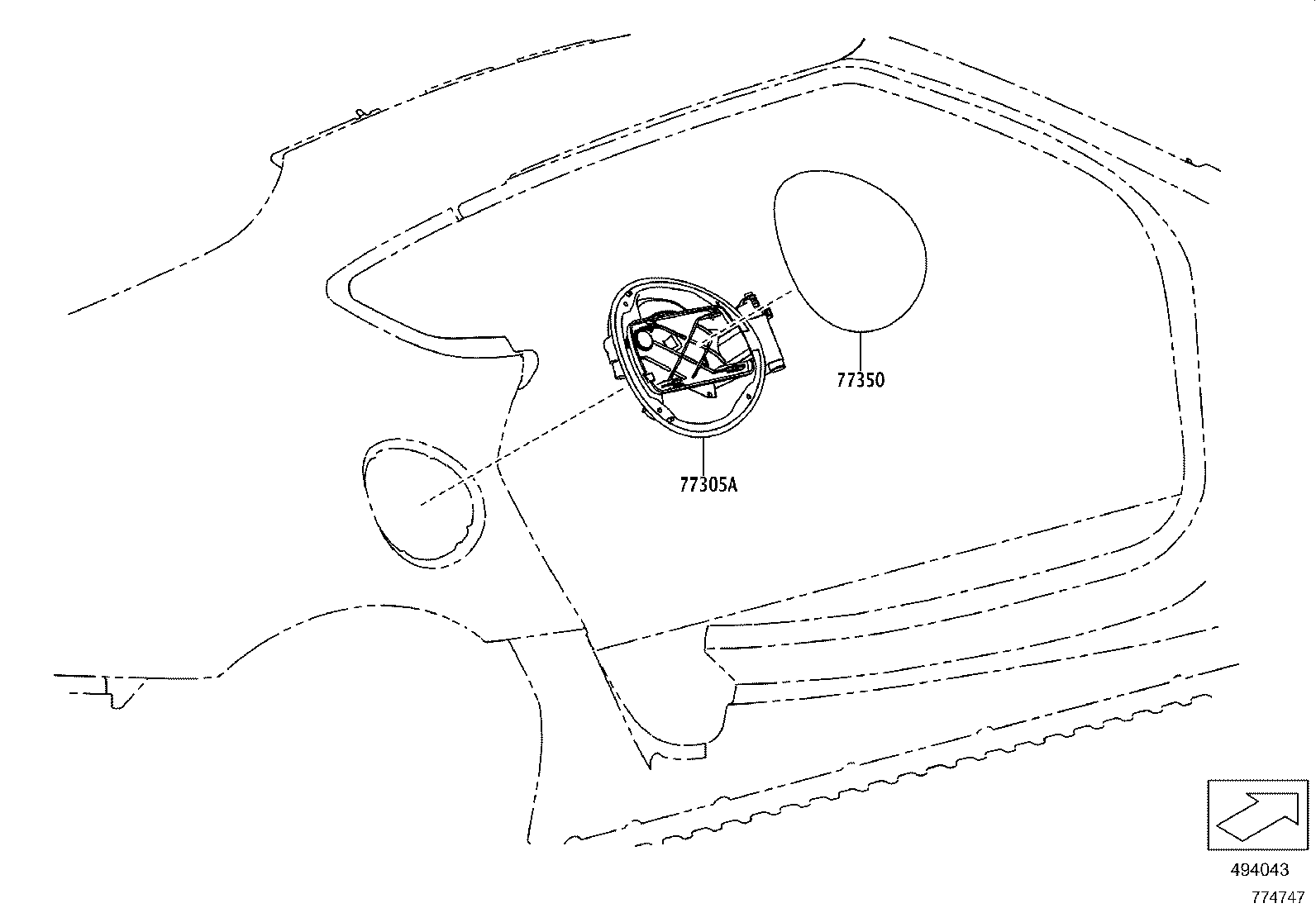

| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-WAA01 |
DB43 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-WAA01 |
DB43 |
1 | ||
ILLUST NO. 2 OF 6(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

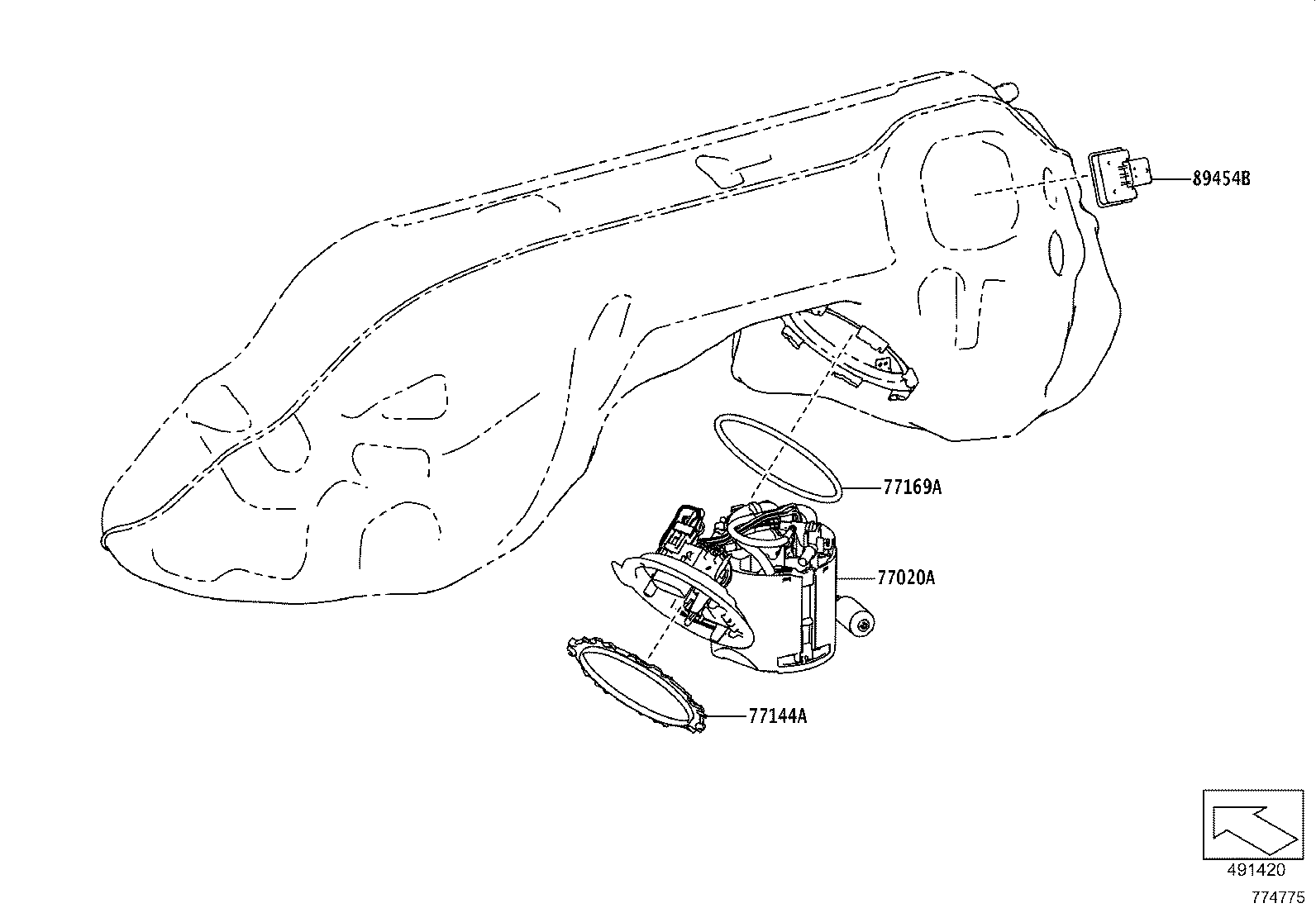

| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-WAA01 |
DB43 |
1 | ||
| 77144A - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-WAA01 |
DB43 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-WAA01 |
DB43 |
1 | ||
| 89454B - SENSOR, FUEL TEMPERATURE | ||||
| 89454-WAA01 |
DB43 |
1 | ||
ILLUST NO. 6 OF 6(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90118-WA075 | ||||
ILLUST NO. 1 OF 5(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-WAA01 |
DB43 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77210-WAA02 |
DB43 |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90118-WA685 |
DB43 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-WAA02 |
DB43 |
1 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-WAA01 |
DB43 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-WAA01 |
DB43 |
8 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77656-WAA01 |
DB43 |
4 | ||
| Common parts | ||||
| 90118-WA056 | ||||
| 90118-WA057 | ||||
| 90118-WA058 | ||||
| 90118-WA064 | ||||
| 90118-WA116 | ||||
| 90118-WA120 | ||||
ILLUST NO. 4 OF 5(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251J - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-WAA01 |
DB43 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 23802-WAA01 |
DB43 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-WAA02 |
DB43 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 23827-WAA01 |
DB43 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 90118-WA066 |
DB43 |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 90118-WA096 |
DB43 |
2 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-WAA01 |
DB43 |
3 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-WAA01 |
DB43 |
3 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-WAA01 |
DB43 |
3 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 90118-WA095 |
DB43 |
2 | ||
ILLUST NO. 5 OF 5(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-WAA01 |
DB43 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-WAA01 |
DB43 |
1 | ||

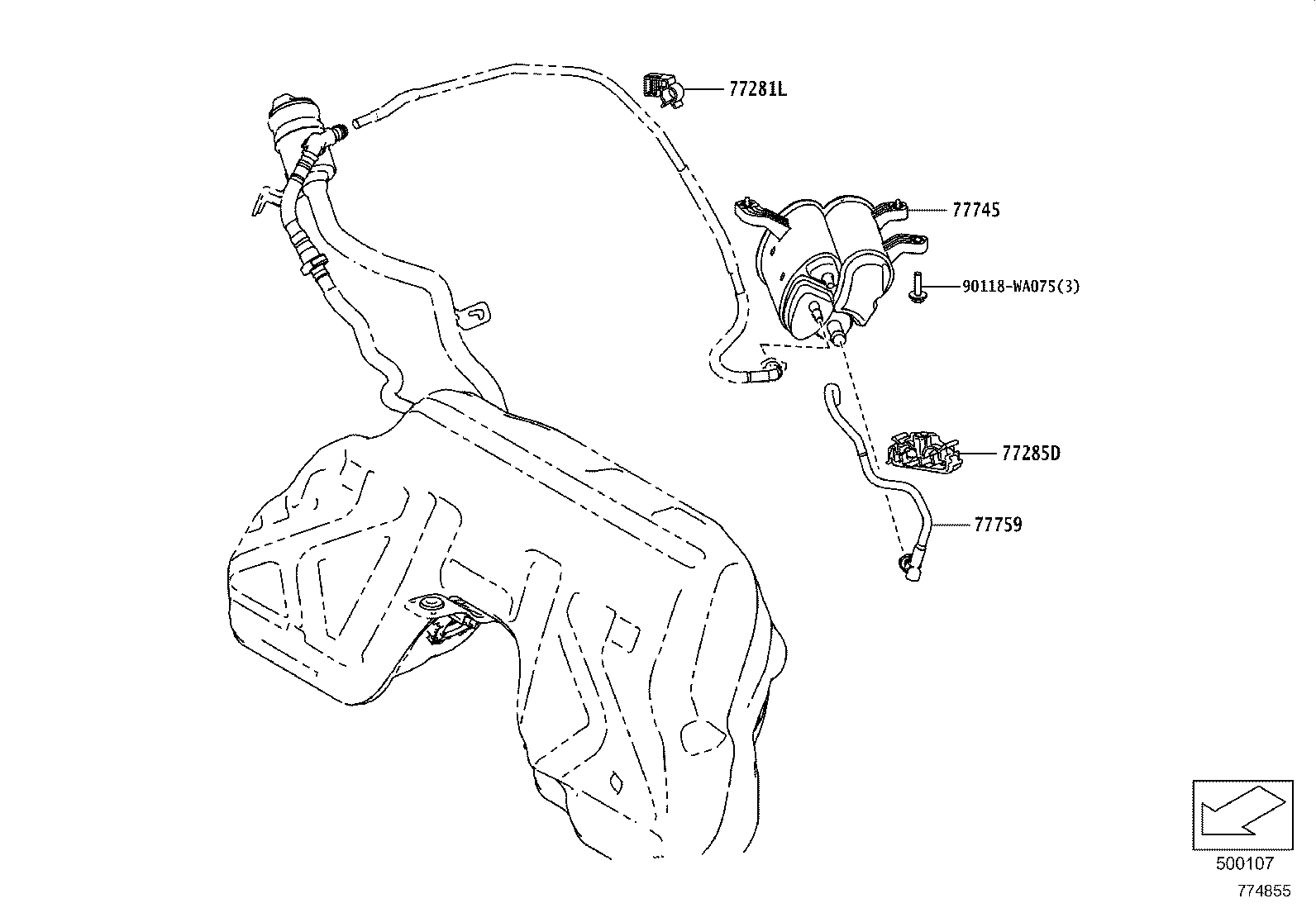

ILLUST NO. 3 OF 5(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

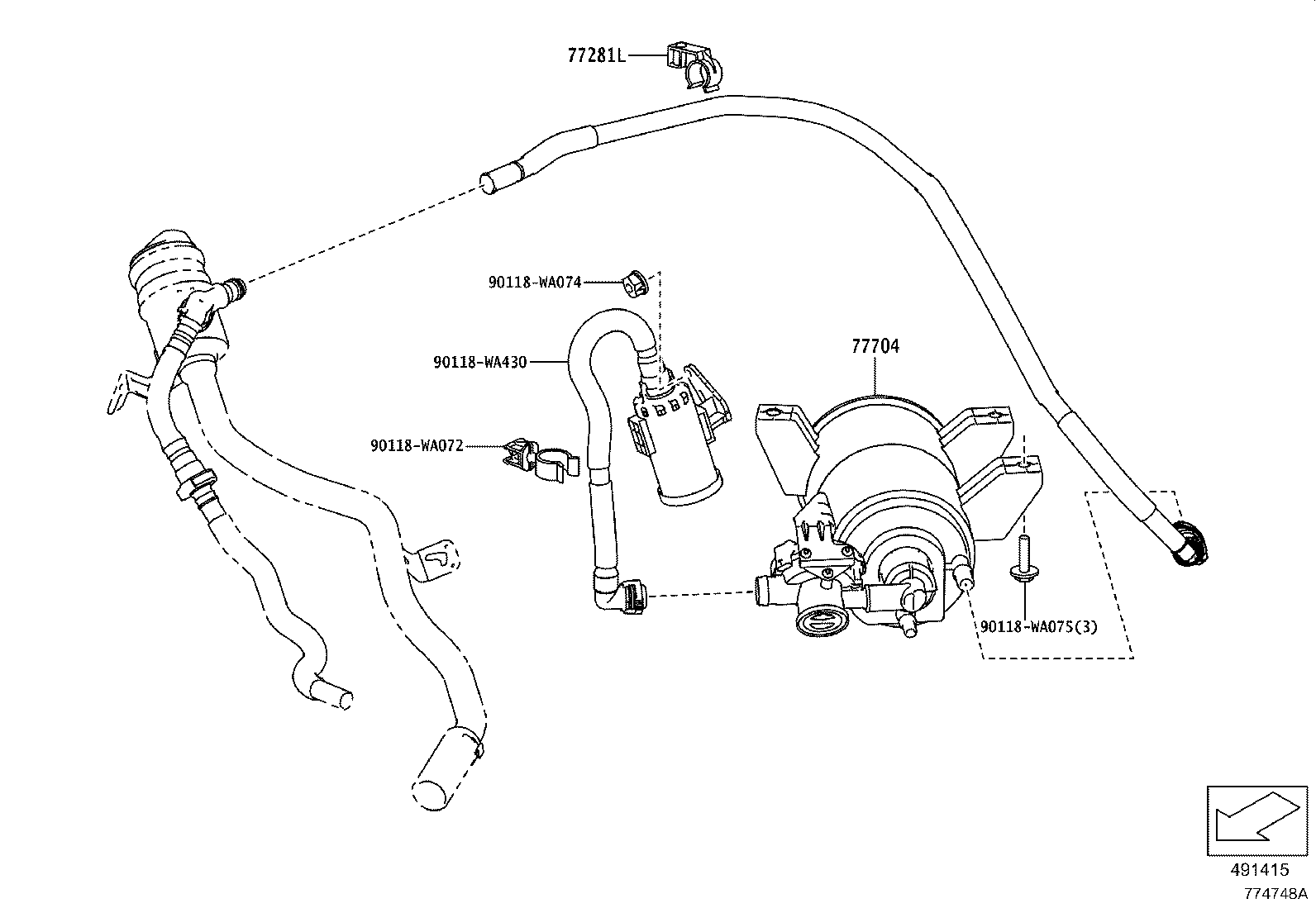

| 77281L - CLAMP, FUEL HOSE | ||||
| 77299-WAA01 |
DB43 |
3 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-WAA01 |
DB43 |
1 | ||
| Common parts | ||||
| 90118-WA072 | ||||
| 90118-WA074 | ||||
| 90118-WA075 | ||||
| 90118-WA430 | ||||
ILLUST NO. 2 OF 5(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-WAA01 |
DB43 |
1 | ||
| 77144A - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-WAA01 |
DB43 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-WAA01 |
DB43 |
1 | ||
| 89454B - SENSOR, FUEL TEMPERATURE | ||||
| 89454-WAA01 |
DB43 |
1 | ||
