DB42R-ZRRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B58
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

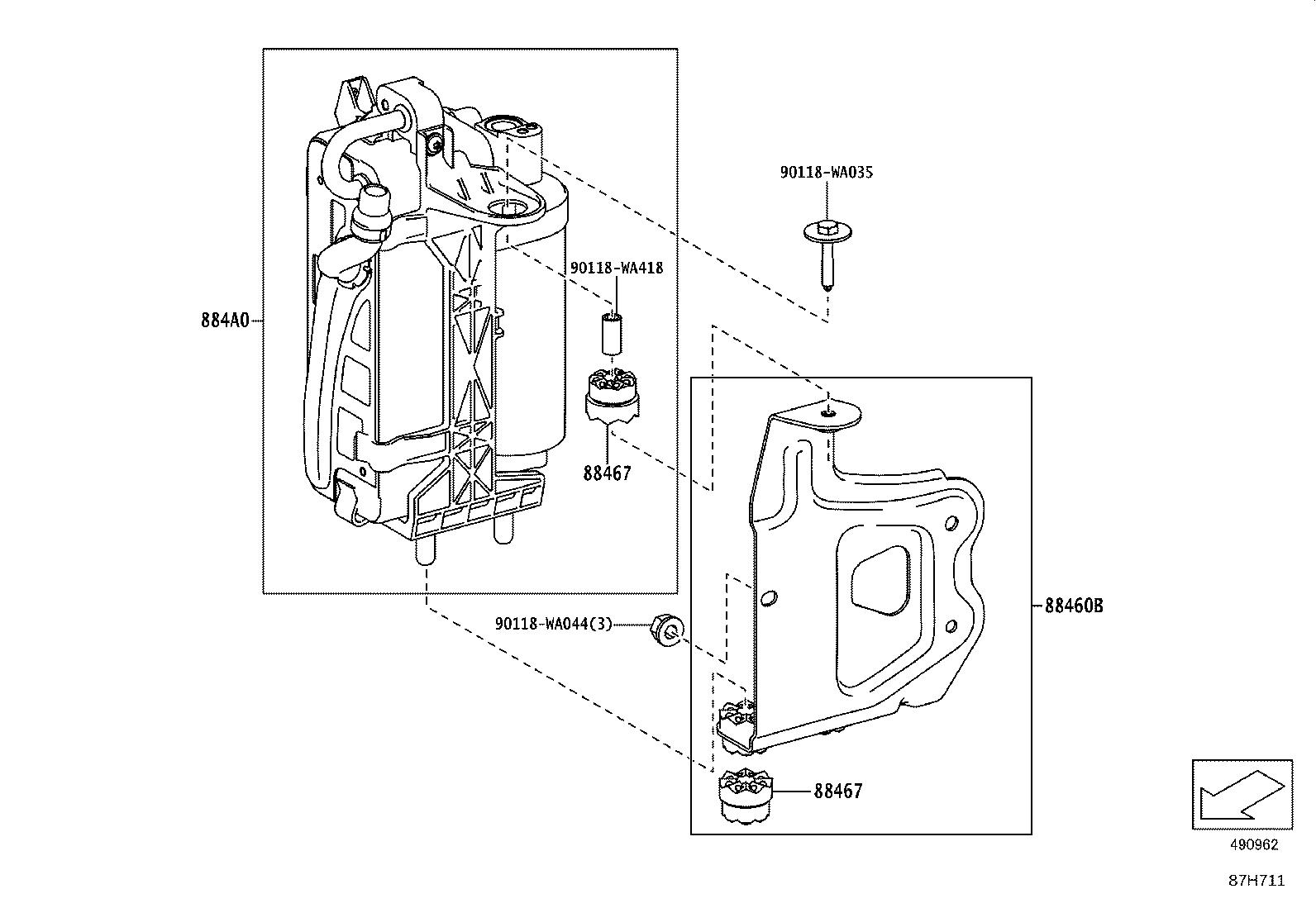

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

diagram 88460B 88467 88467 884A0 90118WA035 90118WA044 90118WA418
Part # Description Qty Price
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-WAA01

DB2#,4#,81

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
44546-WAA01

DB2#,4#,81

 3
88467 - CUSHION, COOLER CONDENSER, NO.1
44546-WAA01

DB2#,4#,81

 3
884A0 - CONDENSER ASSY, COOLER
88460-WAA01

DB2#,4#,81

 1
Common parts
90118-WA035
90118-WA044
90118-WA418

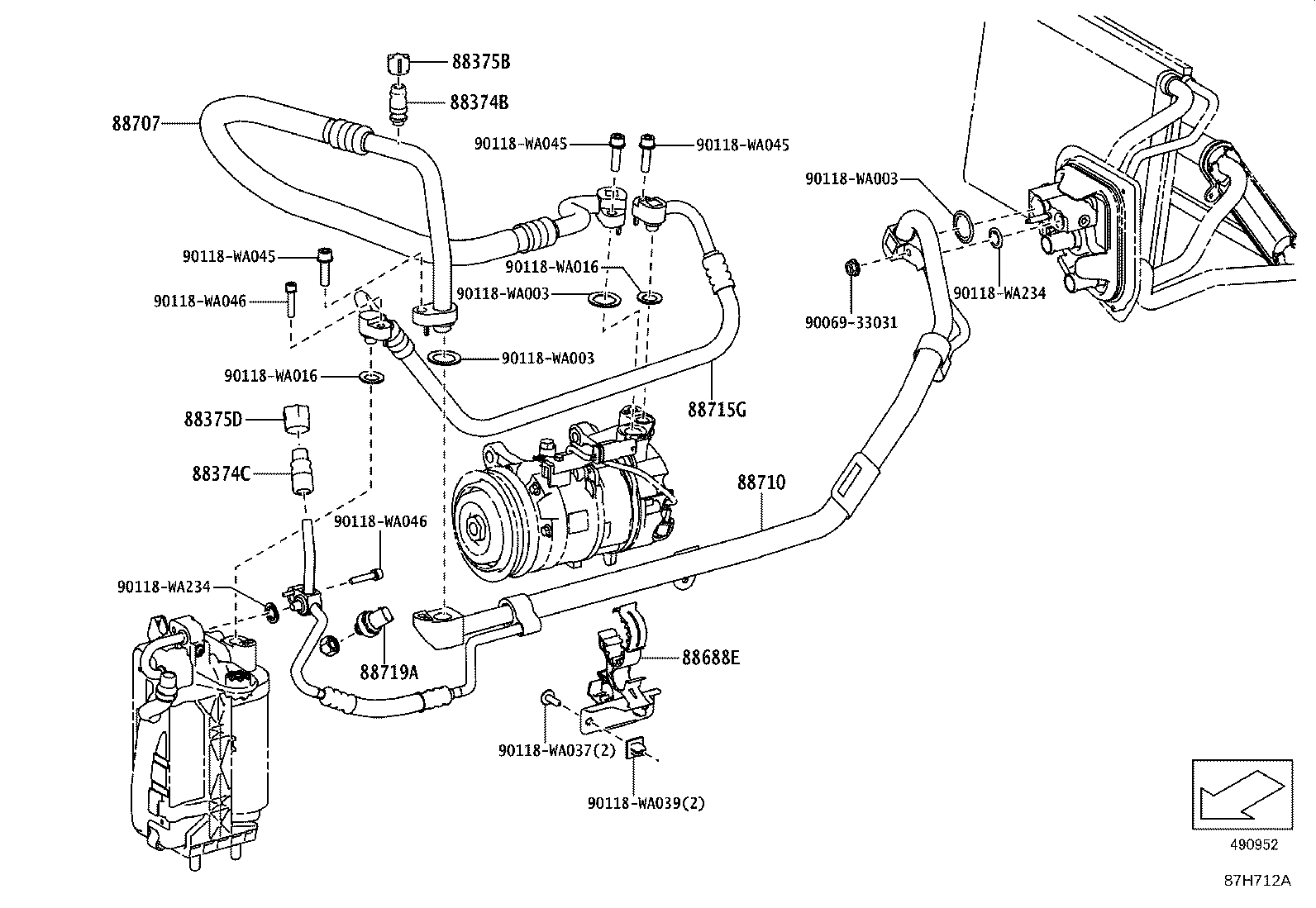

ILLUST NO. 2 OF 2(1903- )DB2#,8#

Click highlighted areas on diagram

diagram 88374B 88374C 88375B 88375D 88688E 88707 88710 88715G 88719A 9006933031 90118WA003 90118WA003 90118WA003 90118WA016 90118WA016 90118WA037 90118WA039 90118WA045 90118WA045 90118WA045 90118WA046 90118WA046 90118WA234 90118WA234
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-WAA01

DB2#,4#,81

 1
88374C - VALVE, SERVICE, NO.2
88374-WAA01

DB2#,4#,81

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-WAA03

DB2#,4#,81

REFRIGERANT CORRESPONDENCE-R1234YF

 1
88375-WAA01

DB2#,4#,81

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-WAA04

DB2#,4#,81

REFRIGERANT CORRESPONDENCE-R1234YF

 1
88375-WAA02

DB2#,4#,81

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-WAA01

DB2#,4#,81

 1
88707 - PIPE SUB-ASSY, SUCTION
88704-WAA02

DB4#

 1
88704-WAA04

DB4#

REFRIGERANT CORRESPONDENCE-R1234YF

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-WAA01

DB2#,4#,81

 1
88710-WAA02

DB2#,4#,81

REFRIGERANT CORRESPONDENCE-R1234YF

 1
88715G - TUBE, DISCHARGE, G
88703-WAA02

DB4#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-WAA01

DB2#,4#,81

 1
Common parts
90069-33031
90118-WA003
90118-WA016
90118-WA037
90118-WA039
90118-WA045
90118-WA046
90118-WA234

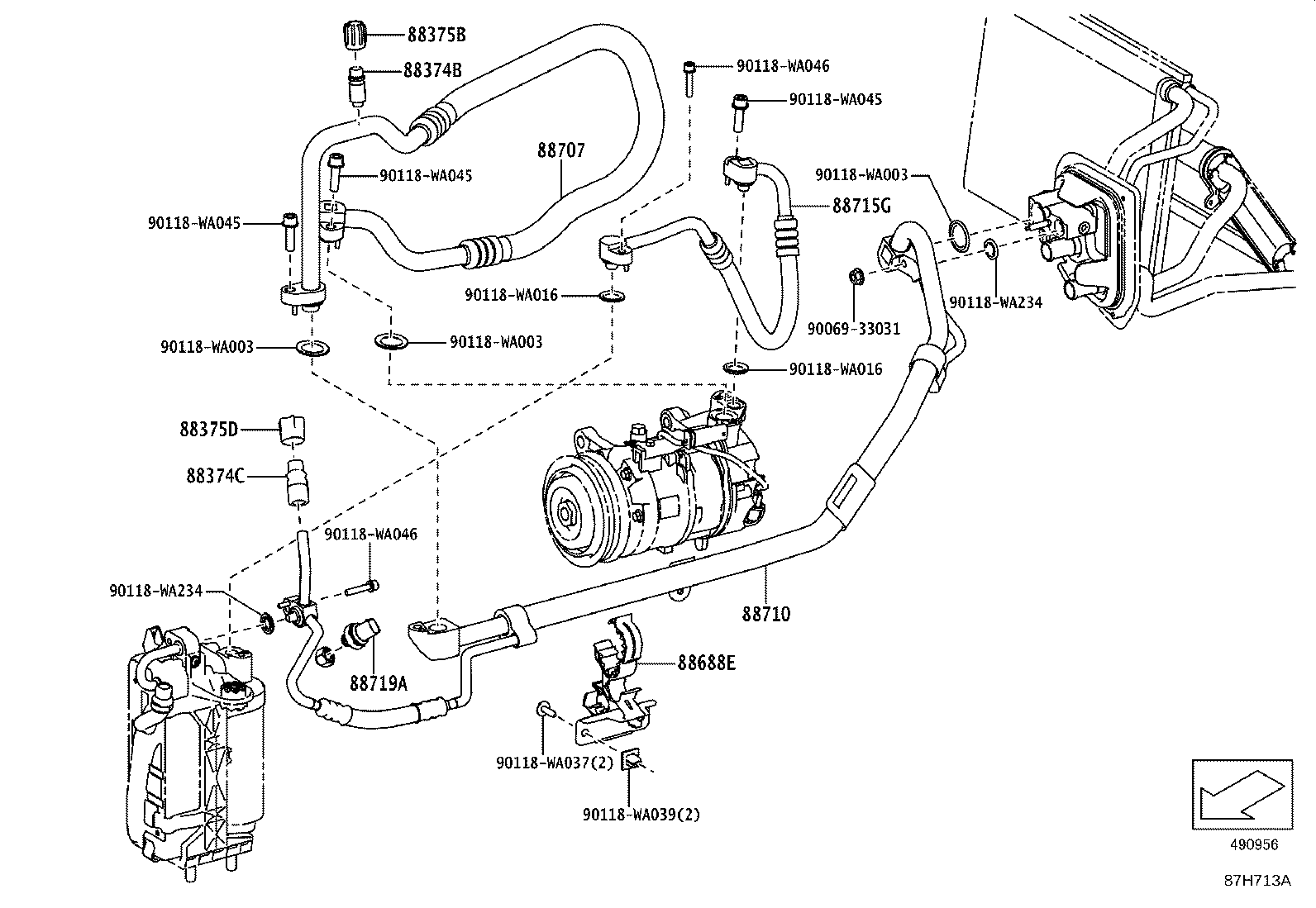

ILLUST NO. 2 OF 2(1903- )DB0#,4#

Click highlighted areas on diagram

diagram 88374B 88374C 88375B 88375D 88688E 88707 88710 88715G 88719A 9006933031 90118WA003 90118WA003 90118WA003 90118WA016 90118WA016 90118WA037 90118WA039 90118WA045 90118WA045 90118WA045 90118WA046 90118WA046 90118WA234 90118WA234
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-WAA01

DB2#,4#,81

 1
88374C - VALVE, SERVICE, NO.2
88374-WAA01

DB2#,4#,81

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-WAA03

DB2#,4#,81

REFRIGERANT CORRESPONDENCE-R1234YF

 1
88375-WAA01

DB2#,4#,81

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-WAA04

DB2#,4#,81

REFRIGERANT CORRESPONDENCE-R1234YF

 1
88375-WAA02

DB2#,4#,81

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-WAA01

DB2#,4#,81

 1
88707 - PIPE SUB-ASSY, SUCTION
88704-WAA02

DB4#

 1
88704-WAA04

DB4#

REFRIGERANT CORRESPONDENCE-R1234YF

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-WAA01

DB2#,4#,81

 1
88710-WAA02

DB2#,4#,81

REFRIGERANT CORRESPONDENCE-R1234YF

 1
88715G - TUBE, DISCHARGE, G
88703-WAA02

DB4#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-WAA01

DB2#,4#,81

 1
Common parts
90069-33031
90118-WA003
90118-WA016
90118-WA037
90118-WA039
90118-WA045
90118-WA046
90118-WA234
