DB42R-ZRRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B58
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

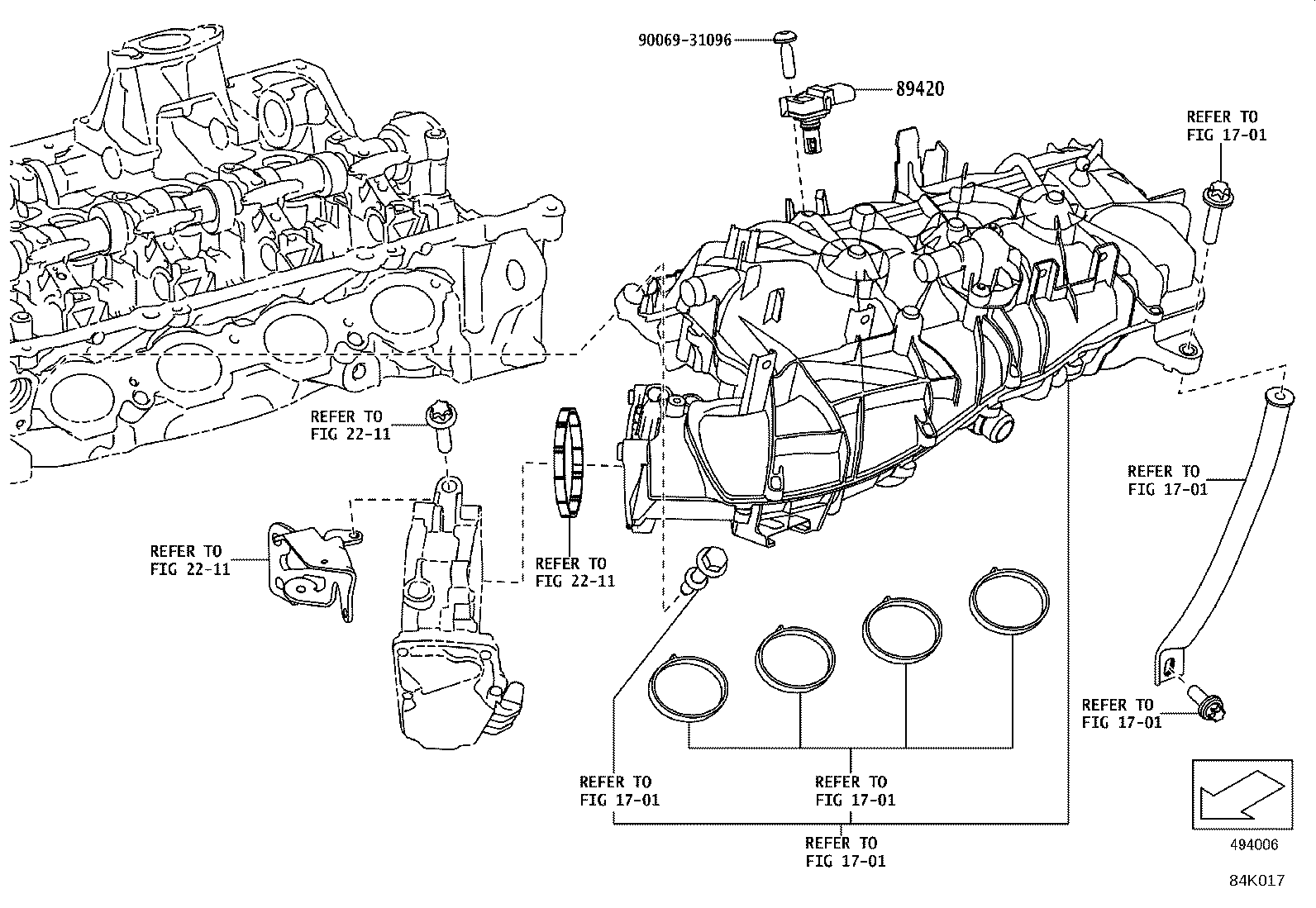

ILLUST NO. 1 OF 5(1903- )DB2#,8#

Click highlighted areas on diagram

diagram 1701 1701 1701 1701 1701 1701 2211 2211 2211 89420 9006931096
Part # Description Qty Price
89420 - SENSOR ASSY, VACUUM
89420-WAA01

DB2#,4#,81

 1
Common parts
90069-31096
Linked diagrams
1701
2211

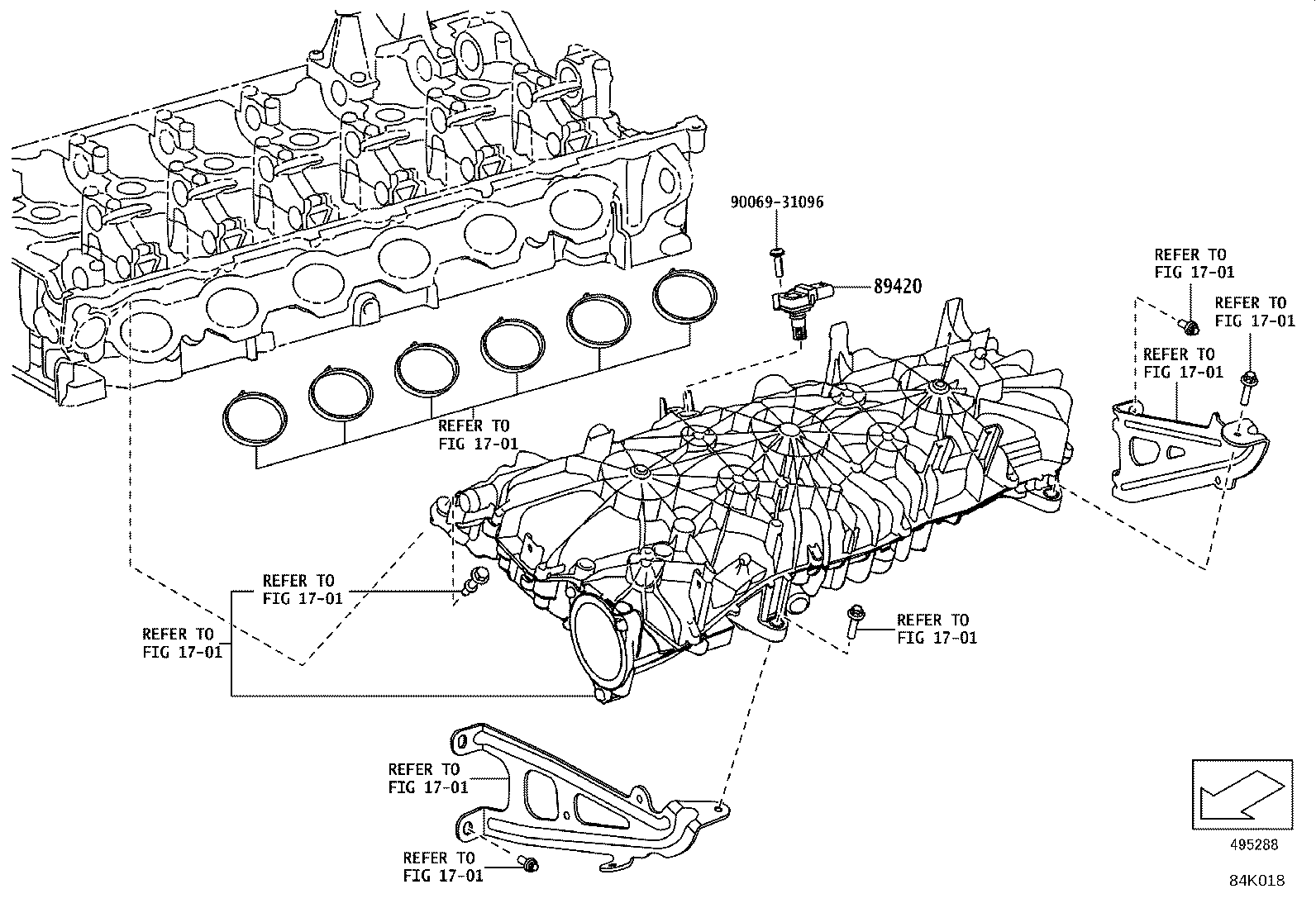

ILLUST NO. 1 OF 5(1903- )DB0#,4#

Click highlighted areas on diagram

diagram 1701 1701 1701 1701 1701 1701 1701 1701 1701 89420 9006931096
Part # Description Qty Price
89420 - SENSOR ASSY, VACUUM
89420-WAA01

DB2#,4#,81

 1
Common parts
90069-31096
Linked diagrams
1701

ILLUST NO. 2 OF 5(1903- )DB2#,8#

Click highlighted areas on diagram

diagram 89661
Part # Description Qty Price
89661 - COMPUTER, ENGINE CONTROL
89661-WAA01

DB2#,8#

 1
89661-WAA02

DB4#

 1

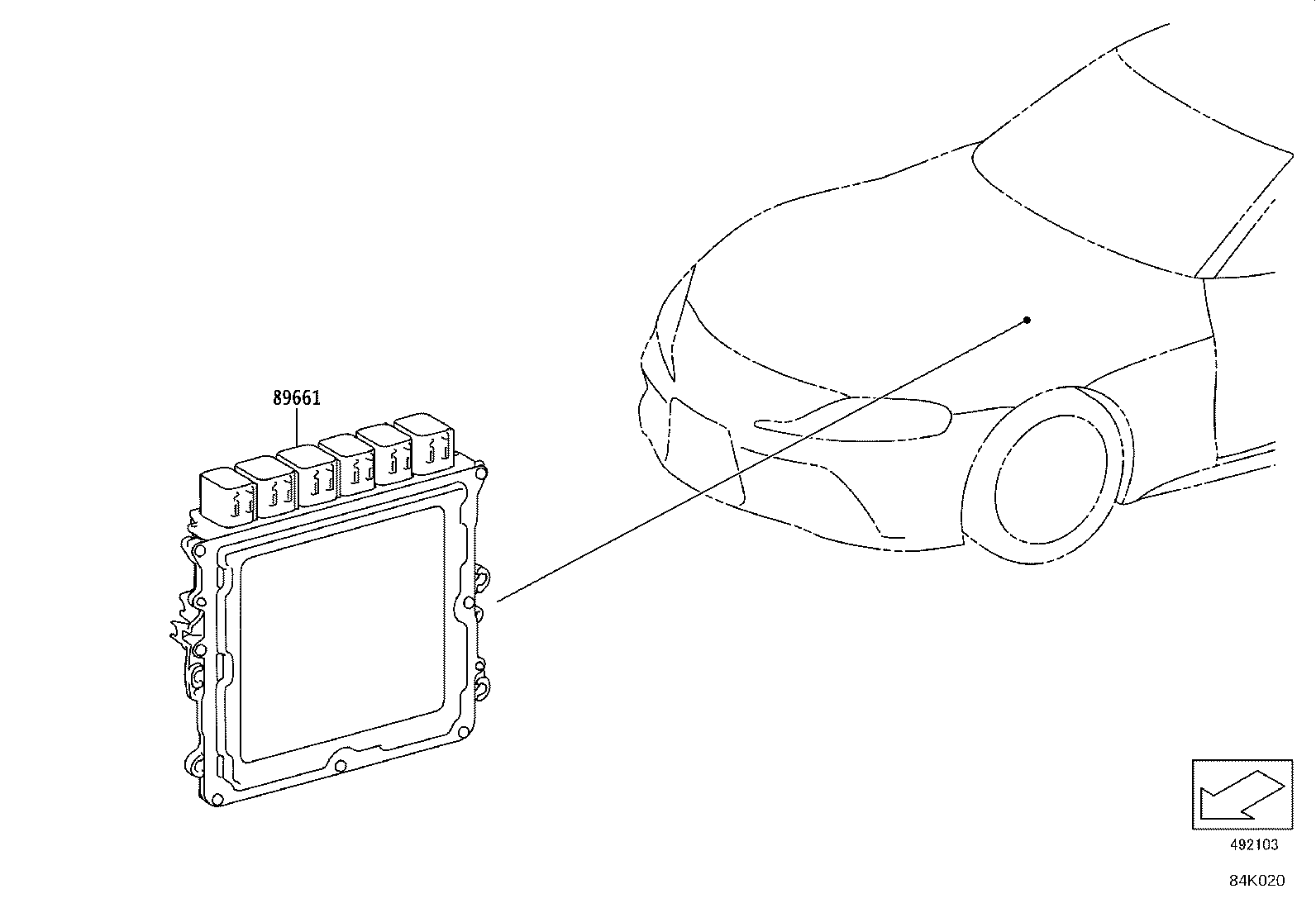

ILLUST NO. 2 OF 5(1903- )DB0#,4#

Click highlighted areas on diagram

diagram 89661
Part # Description Qty Price
89661 - COMPUTER, ENGINE CONTROL
89661-WAA01

DB2#,8#

 1
89661-WAA02

DB4#

 1

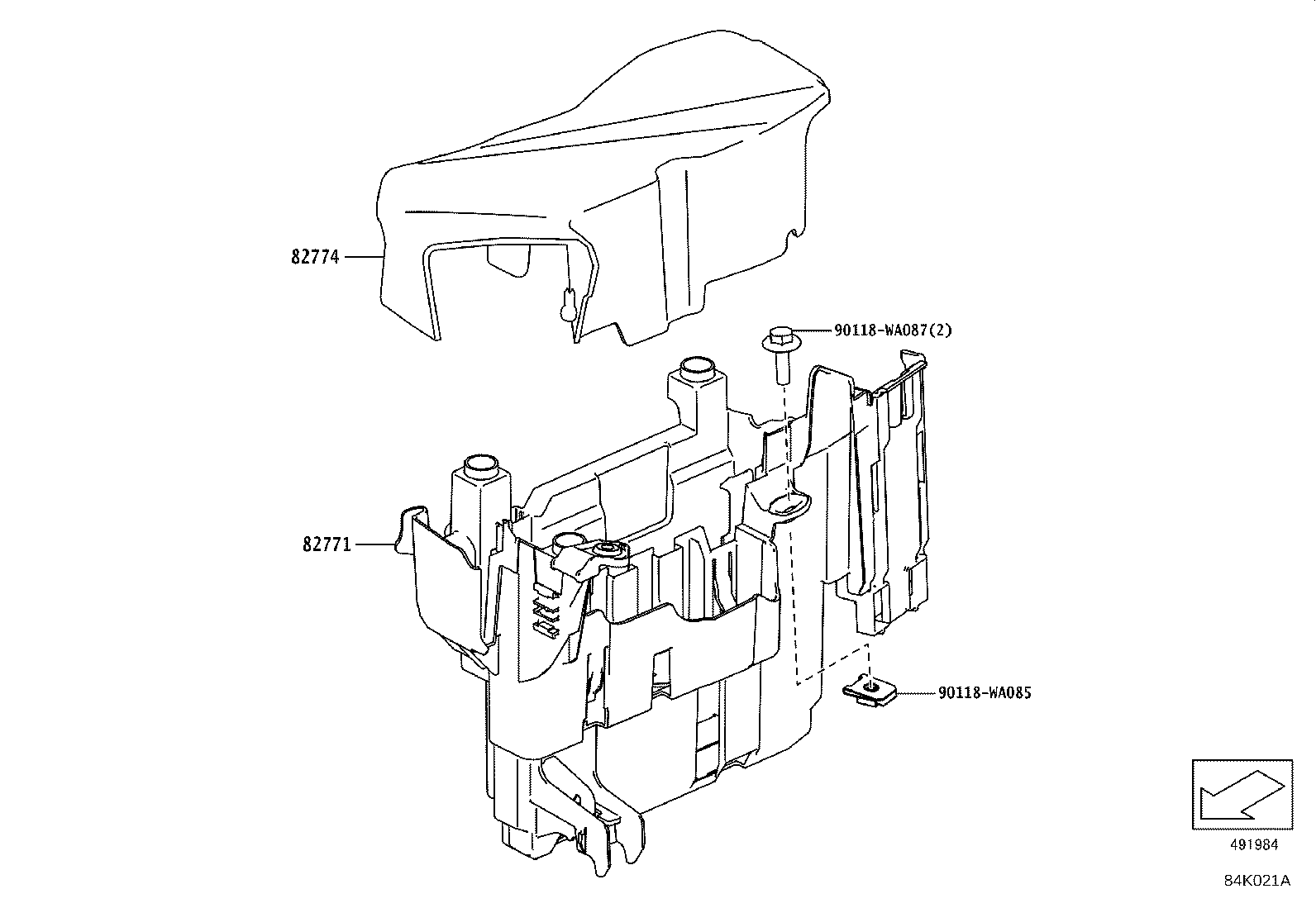

ILLUST NO. 3 OF 5(1903- )

Click highlighted areas on diagram

diagram 82771 82774 90118WA085 90118WA087
Part # Description Qty Price
82771 - BOX, ENGINE ROOM ECU
89679-WAA01

DB2#,4#,81

 1
82774 - COVER, ENGINE ROOM ECU
82774-WAA01

DB2#,4#,81

 1
Common parts
90118-WA085
90118-WA087

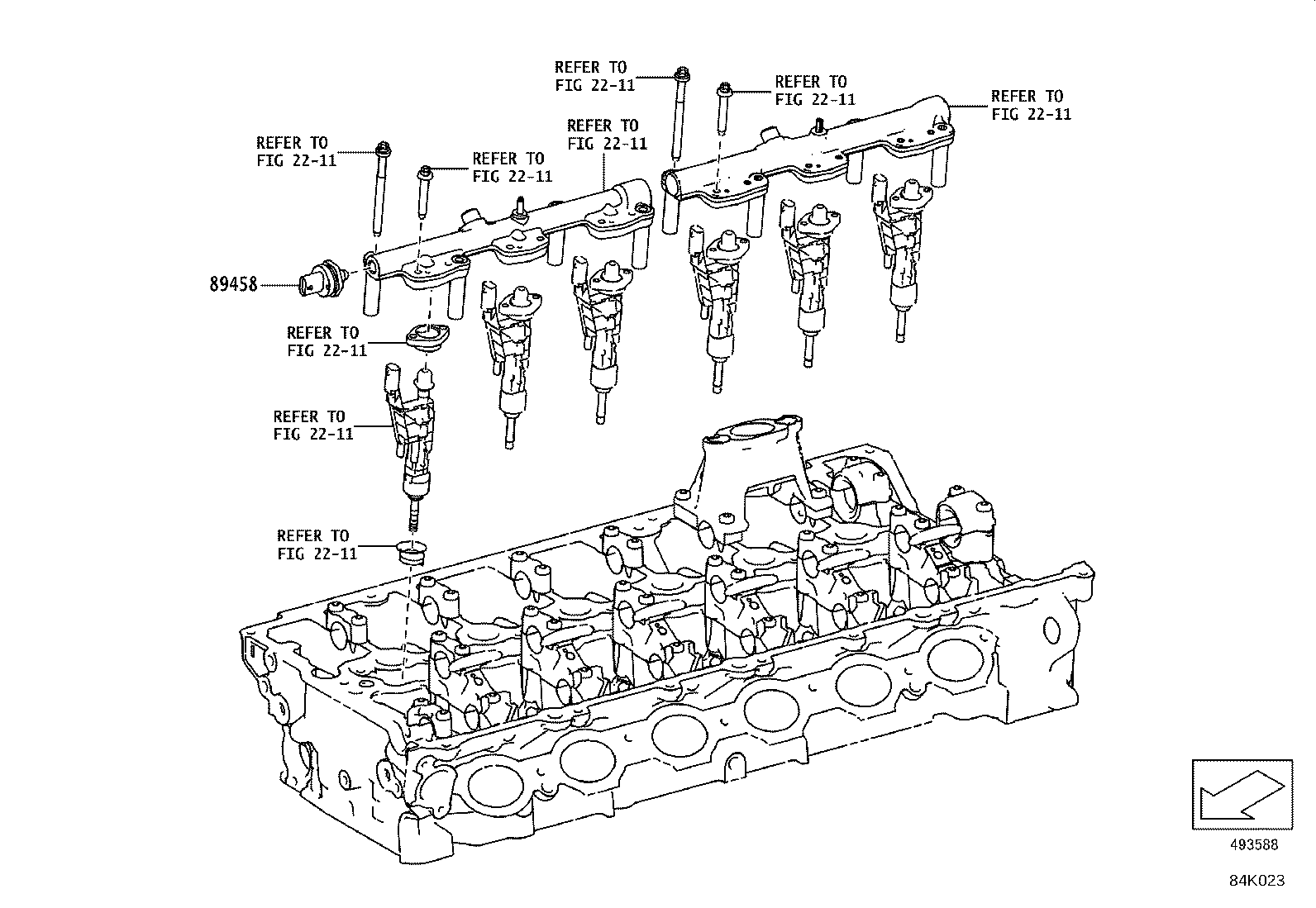

ILLUST NO. 4 OF 5(1903- )DB2#,8#

Click highlighted areas on diagram

diagram 2211 2211 2211 2211 2211 2211 89458
Part # Description Qty Price
89458 - SENSOR, FUEL PRESSURE
89458-WAA01

DB2#,4#,81

 1
Linked diagrams
2211

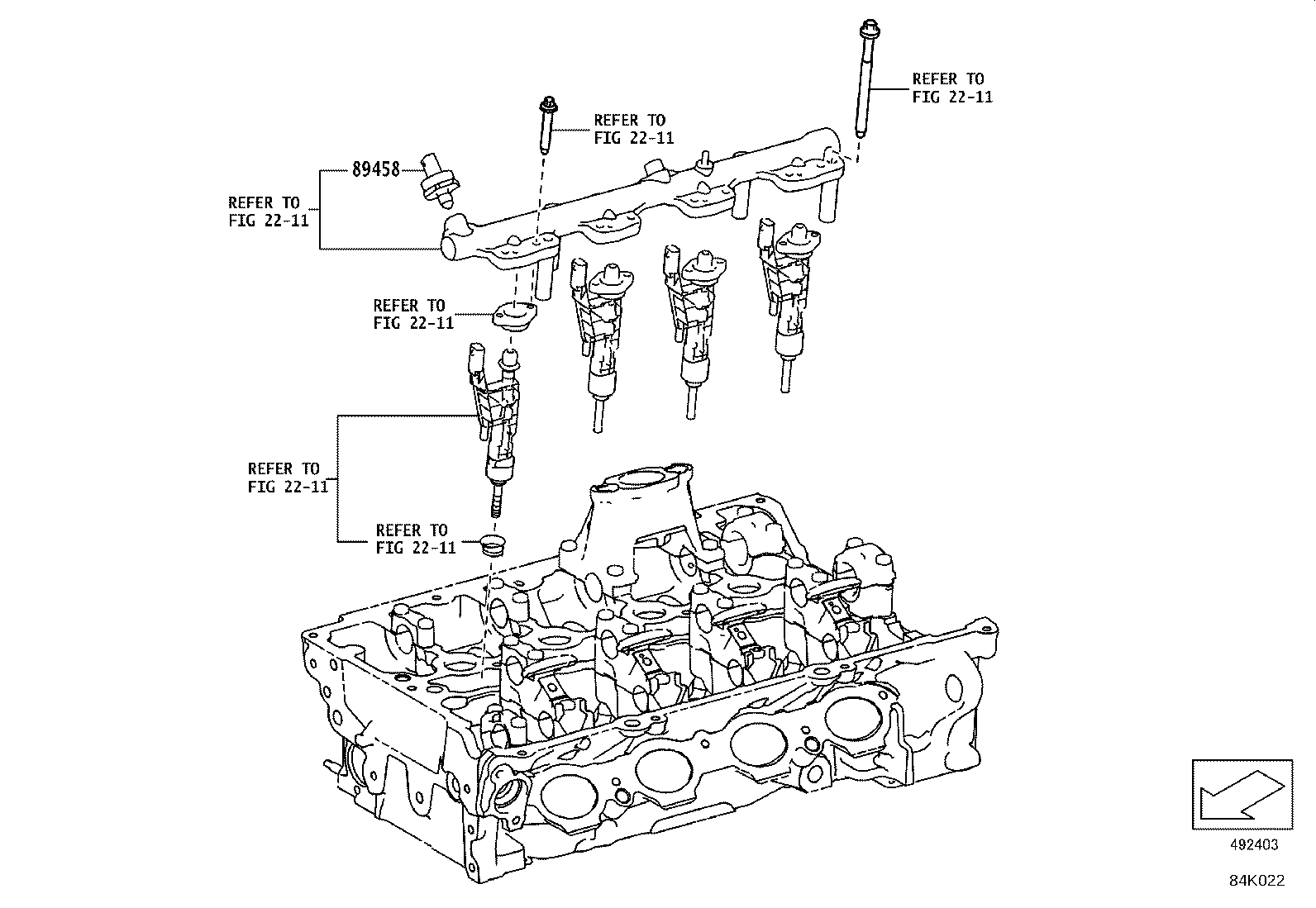

ILLUST NO. 4 OF 5(1903- )DB0#,4#

Click highlighted areas on diagram

diagram 2211 2211 2211 2211 2211 2211 2211 2211 2211 89458
Part # Description Qty Price
89458 - SENSOR, FUEL PRESSURE
89458-WAA01

DB2#,4#,81

 1
Linked diagrams
2211

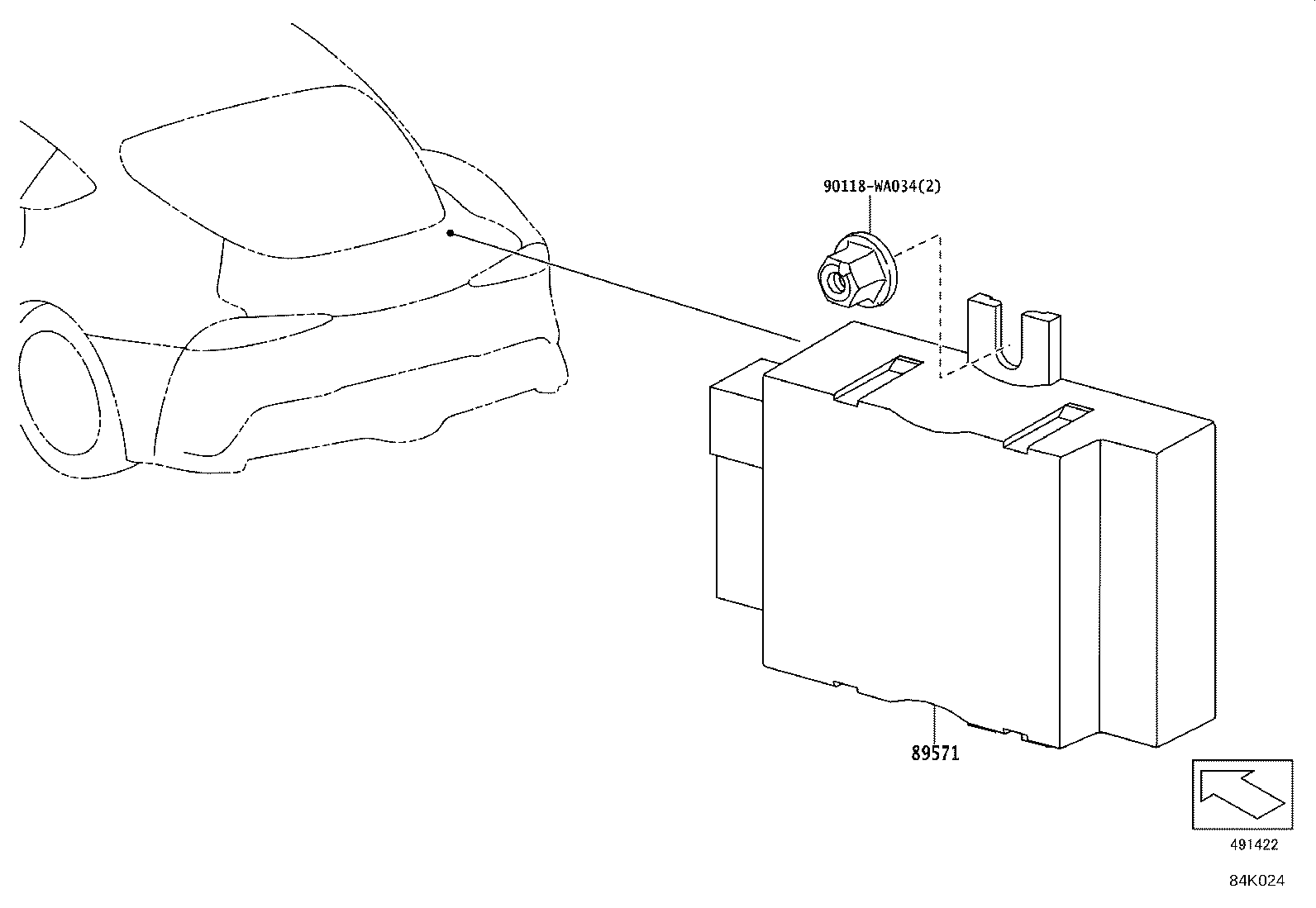

ILLUST NO. 5 OF 5(1903- )

Click highlighted areas on diagram

diagram 89571 90118WA034
Part # Description Qty Price
89571 - COMPUTER, FUEL PUMP CONTROL
89571-WAA02

DB2#,4#,81

 1
Common parts
90118-WA034
