DB42R-ZRRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B58
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

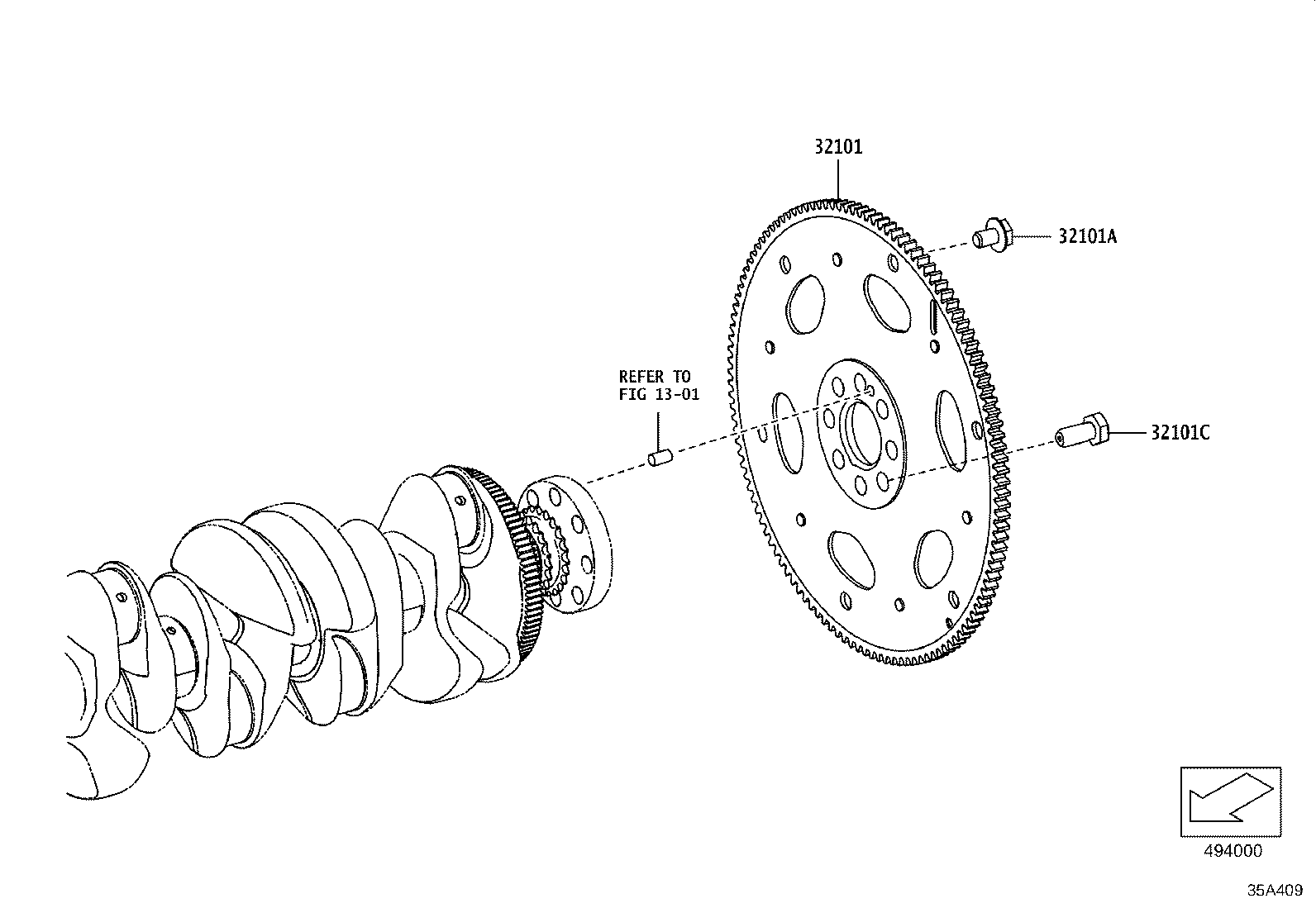

ILLUST NO. 2 OF 2(1903- )

Click highlighted areas on diagram

diagram 1301 32101 32101A 32101C
Part # Description Qty Price
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
13451-WAA01

DB2#,4#,81

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90118-WA373

DB2#,4#,81

M10X17,5Z1-10.9

 6
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90118-WA380

DB2#,4#,81

M12X1.5X25.5

 8
Linked diagrams
1301

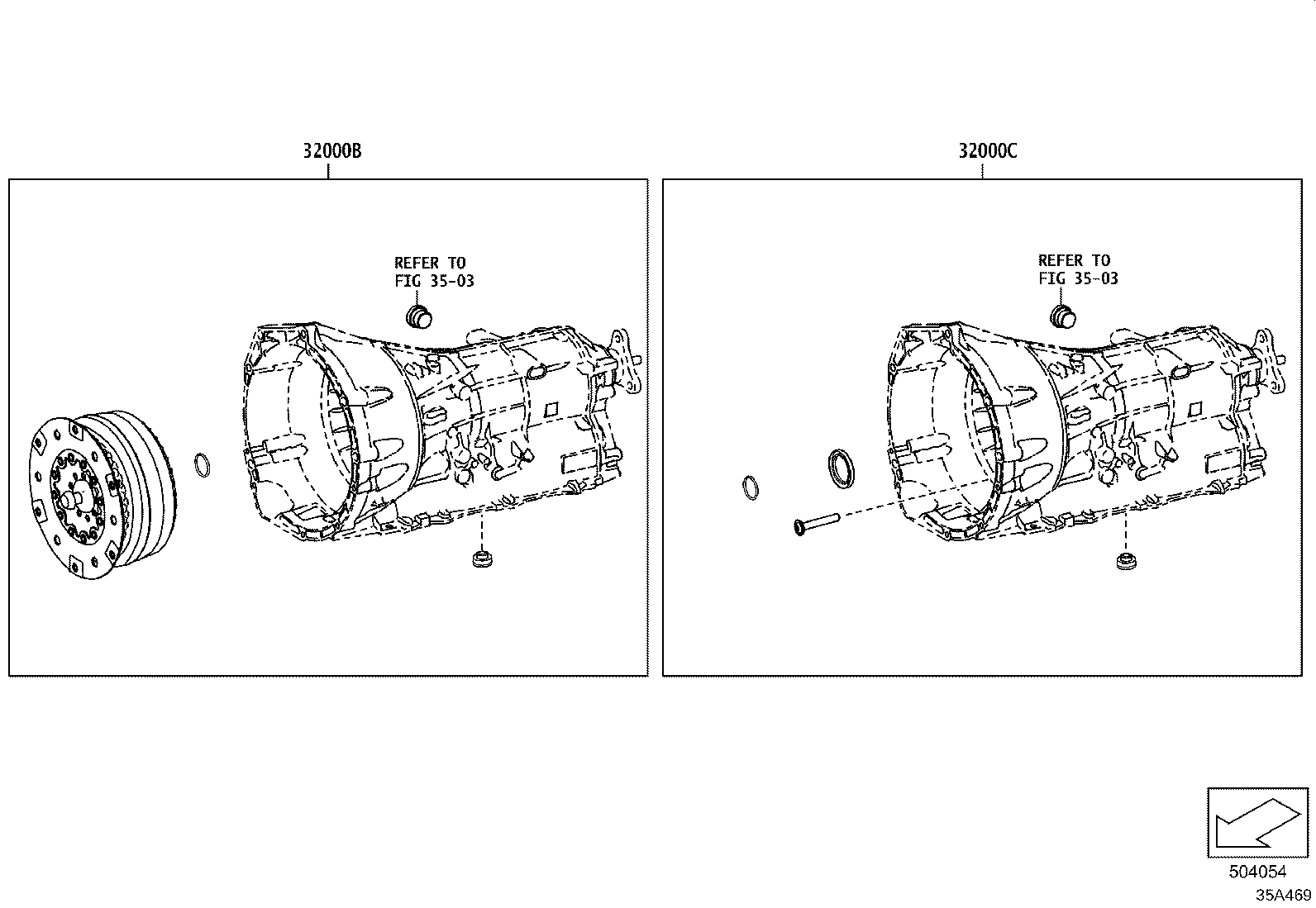

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

diagram 32000B 32000C 3503 3503
Part # Description Qty Price
32000B - REPAIR KIT(FOR TORQUE CONVERTER)
32000-WAA01

DB4#

 1
32000C - REPAIR KIT(FOR DRIVE UNIT)
90118-WA763

DB2#,4#,81

 1
Linked diagrams
3503
