DB42R-ZRRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B58
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

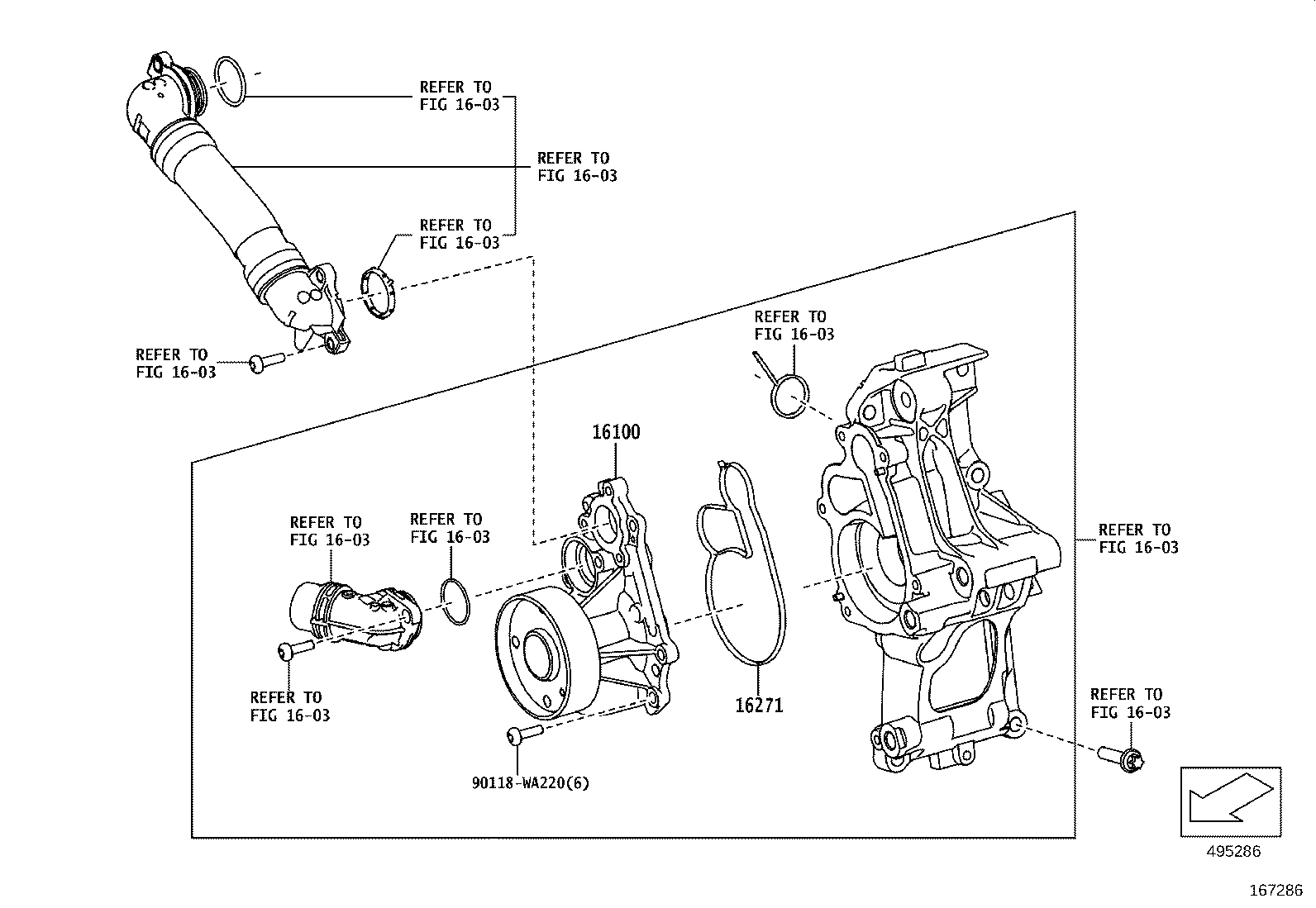

ILLUST NO. 1 OF 3(1903- )B58#

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 16100 16271 90118WA220
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-WAA04

B58..DB4#

 1
16271 - GASKET, WATER PUMP
16271-WAA01

B58..DB4#

 1
Common parts
90118-WA220
Linked diagrams
1603

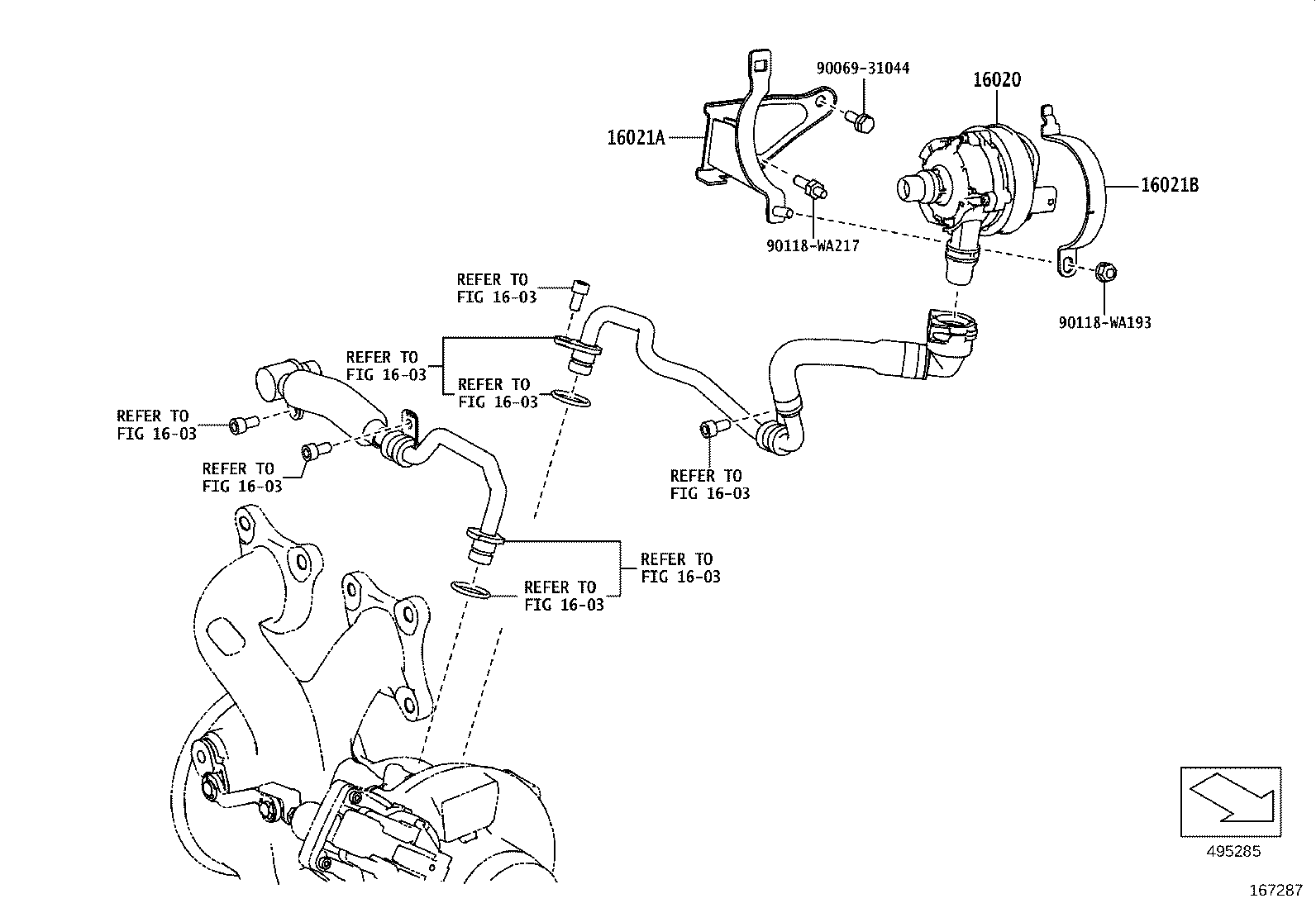

ILLUST NO. 2 OF 3(1903- )B58#

Click highlighted areas on diagram

diagram 16020 16021A 16021B 1603 1603 1603 1603 1603 1603 1603 1603 9006931044 90118WA193 90118WA217
Part # Description Qty Price
16020 - PUMP ASSY, WATER
16100-WAA01

B48#,B58..DB2#,4#,81

 1
16021A - BRACKET SUB-ASSY, WATER PUMP, NO.1
16021-WAA05

B58..DB4#

 1
16021B - BRACKET SUB-ASSY, WATER PUMP, NO.2
16021-WAA07

B58..DB4#

 1
Common parts
90069-31044
90118-WA193
90118-WA217
Linked diagrams
1603

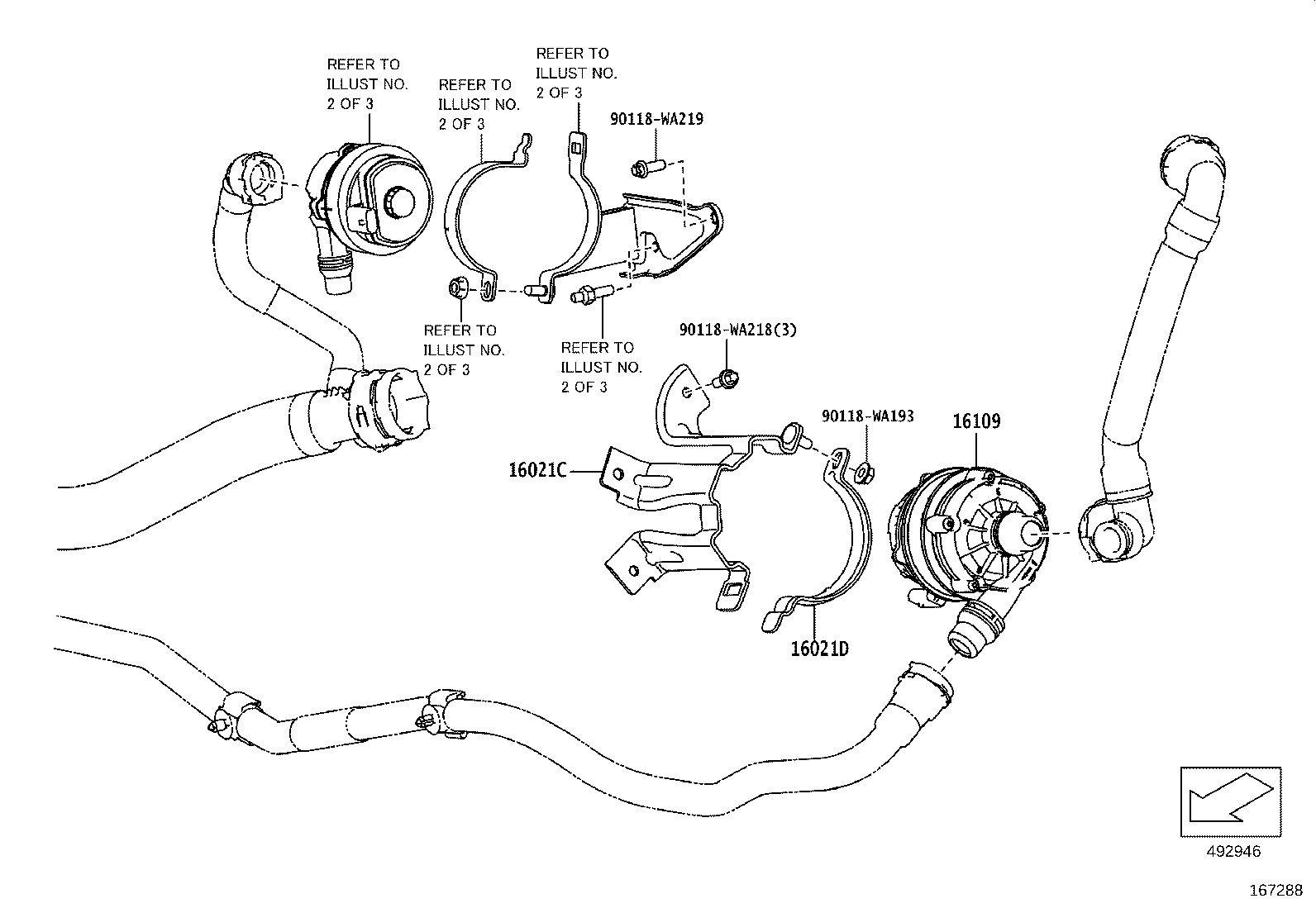

ILLUST NO. 3 OF 3(1903- )B58#

Click highlighted areas on diagram

diagram 16021C 16021D 16109 90118WA193 90118WA218 90118WA219
Part # Description Qty Price
16021C - BRACKET SUB-ASSY, WATER PUMP, NO.3
16021-WAA01

B58..DB4#

 1
16021D - BRACKET SUB-ASSY, WATER PUMP, NO.4
16021-WAA06

B58..DB4#

 1
16109 - PUMP SUB-ASSY, WATER
16100-WAA02

B48#,B58..DB2#,4#,81

 1
Common parts
90118-WA193
90118-WA218
90118-WA219
