DB23L-ZTLA (2020)

Toyota Supra

Production Jul 2020 - Sep 9999
Engine B46H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

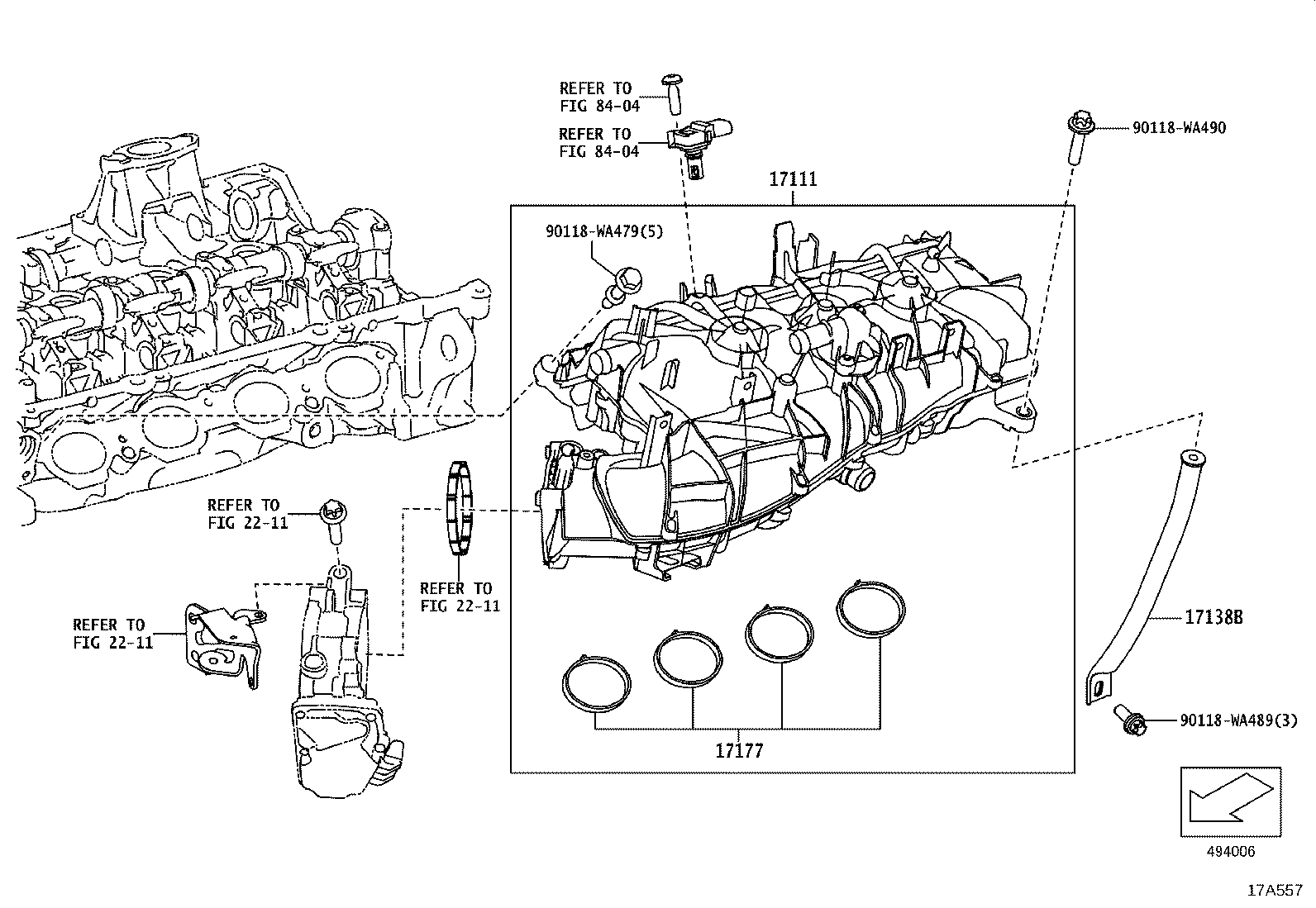

ILLUST NO. 1 OF 4(2007- )B46H

Click highlighted areas on diagram

diagram 17111 17138B 17177 2211 2211 2211 8404 8404 90118WA479 90118WA489 90118WA490
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-WAA02

B46H..DB23

 1
17138B - STAY, INTAKE MANIFOLD
17139-WAA01

B46H..DB23

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-WAA01

B46H..DB23

 4
Common parts
90118-WA479
90118-WA489
90118-WA490
Linked diagrams
2211
8404

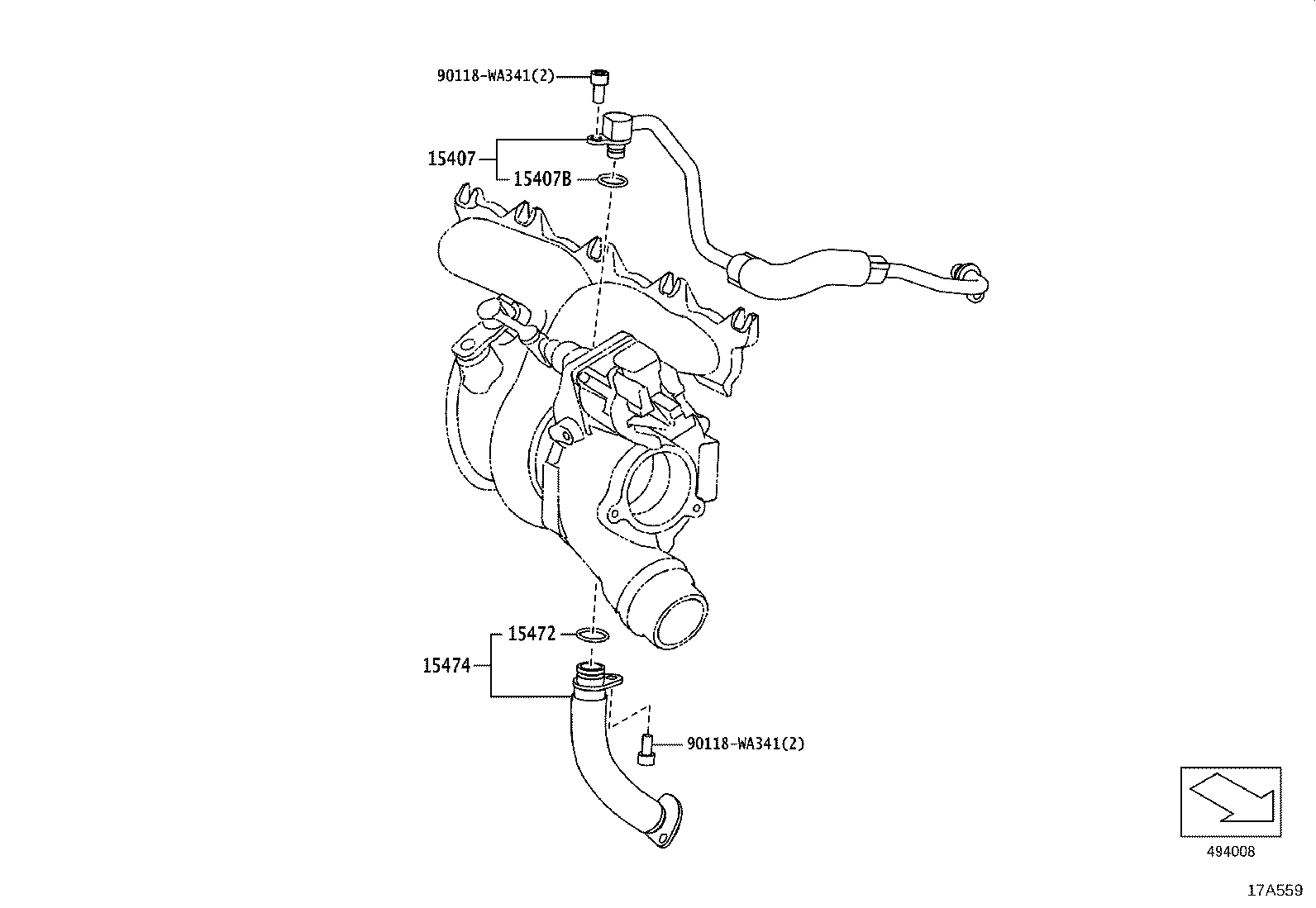

ILLUST NO. 3 OF 4(2007- )B46H

Click highlighted areas on diagram

diagram 15407 15407B 15472 15474 90118WA341 90118WA341
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-WAA01

B46H..DB23

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90118-WA527

B46H..DB23

 2
15472 - GASKET, TURBO OIL OUTLET, NO.1
90118-WA541

B46H..DB23

 2
15474 - PIPE, TURBO OIL OUTLET
15474-WAA01

B46H..DB23

 1
Common parts
90118-WA341

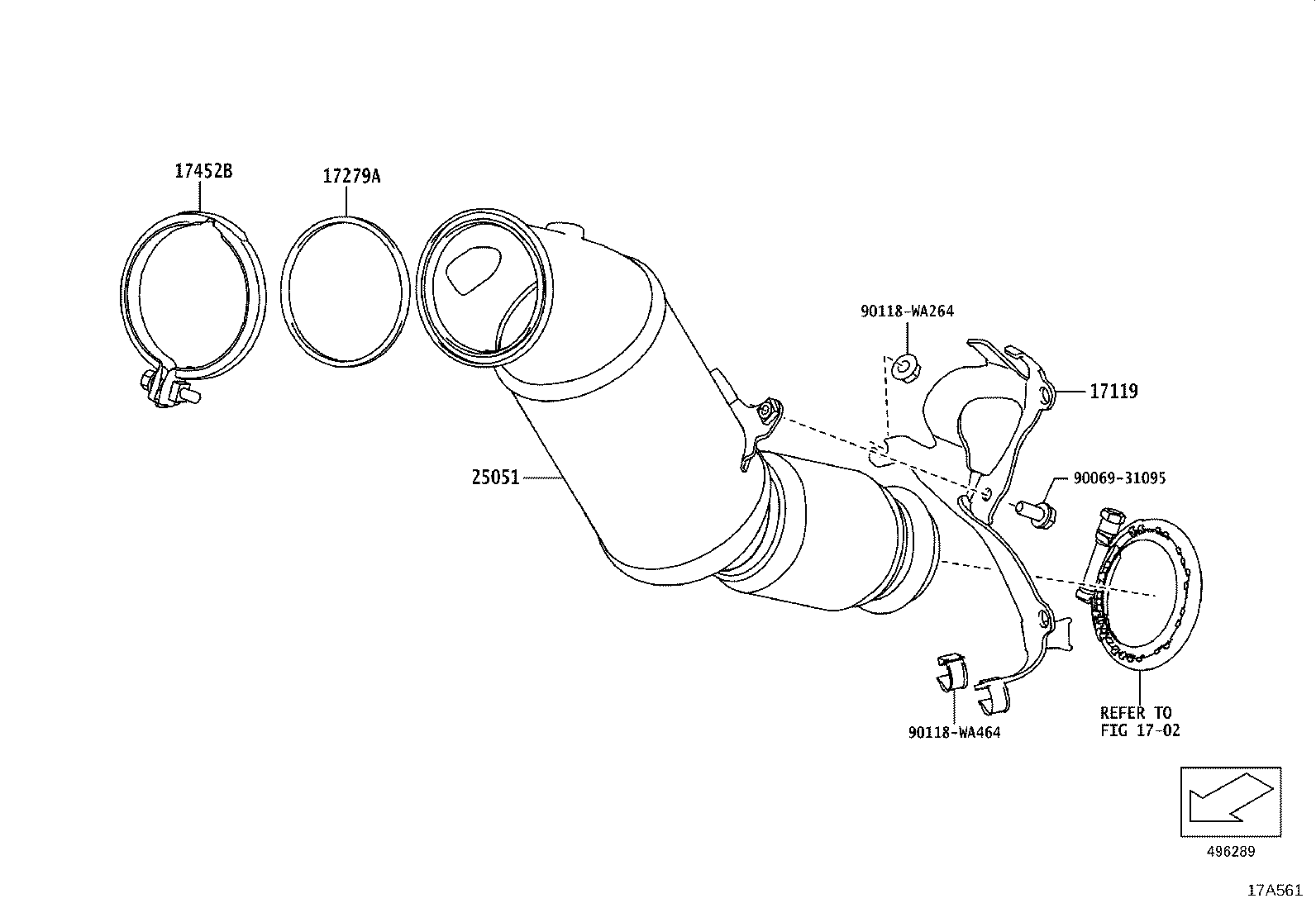

ILLUST NO. 4 OF 4(2007- )B46H

Click highlighted areas on diagram

diagram 1702 17119 17279A 17452B 25051 9006931095 90118WA264 90118WA464
Part # Description Qty Price
17119 - STAY, MANIFOLD, NO.2
17118-WAA02

B46H..DB23

 1
17279A - GASKET, TURBINE OUTLET ELBOW, NO.1
17279-WAA01

B46H..DB23

 1
17452B - CLAMP, EXHAUST PIPE
17452-WAA01

B46H..DB23

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-WAA01

B46H..DB23

*114=*TMC/8782813/Y

 1
Common parts
90069-31095
90118-WA264
90118-WA464
Linked diagrams
1702

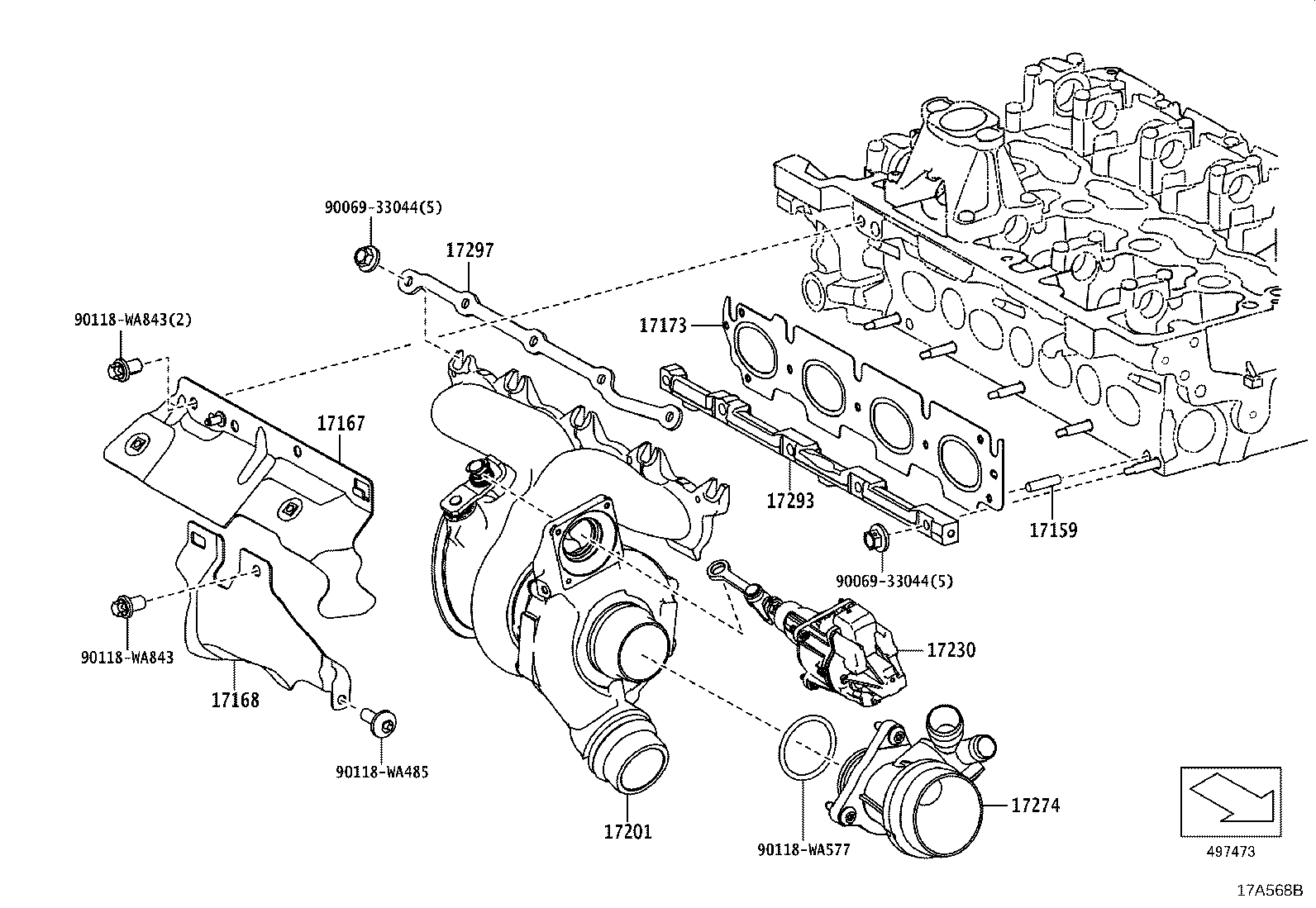

ILLUST NO. 2 OF 4(2007- )B46H

Click highlighted areas on diagram

diagram 17159 17167 17168 17173 17201 17230 17274 17293 17297 9006933044 9006933044 90118WA485 90118WA577 90118WA843 90118WA843
Part # Description Qty Price
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90118-WA491

B46H..DB23

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-WAA01

B46H..DB23

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-WAA01

B46H..DB23

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-WAA01

B46H..DB23

 1
17201 - TURBOCHARGER SUB-ASSY
17201-WAA09

B46H..DB23

 1
17230 - ACTUATOR ASSY, W/BRACKET
17230-WAA02

B46H..DB23

 1
17274 - ELBOW, COMPRESSOR INLET
17274-WAA02

B46H..DB23

 1
17293 - STAY, TURBOCHARGER
17293-WAA02

B46H..DB23

 1
17297 - STAY, TURBOCHARGER, NO.2
17297-WAA01

B46H..DB23

 1
Common parts
90069-33044
90118-WA485
90118-WA577
90118-WA843
