DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

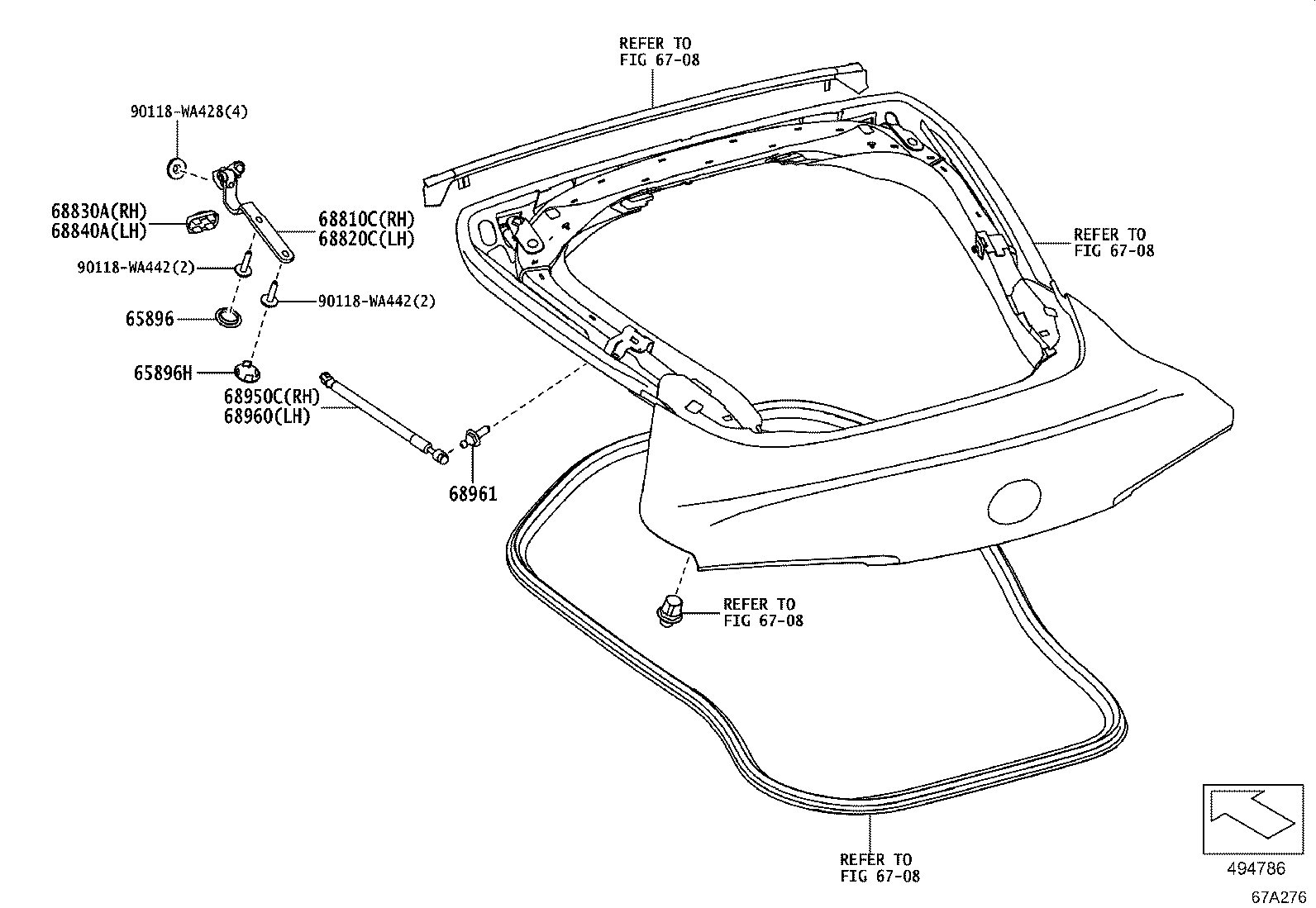

BACK DOOR HINGE

diagram 65896 65896H 6708 6708 6708 6708 68810C 68820C 68830A 68840A 68950C 68960 68961 90118WA428 90118WA442 90118WA442
Part # Description Qty Price
65896 - CAP, SET BOLT
90118-WA444

DB2#,4#,81

 2
65896H - CAP, COVER TOP SET BOLT, B
90118-WA400

DB2#,4#,81

 2
68810C - HINGE ASSY, BACK DOOR, RH
64571-WAA01

DB2#,4#,81

 1
68820C - HINGE ASSY, BACK DOOR, LH
64572-WAA01

DB2#,4#,81

 1
68830A - COVER, BACK DOOR HINGE, RH
90118-WA450

DB2#,4#,81

 1
68840A - COVER, BACK DOOR HINGE, LH
90118-WA450

DB2#,4#,81

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-WAA01

DB2#,4#,81

 1
68960 - STAY ASSY, BACK DOOR, LH
68950-WAA01

DB2#,4#,81

 1
68961 - BOLT, BACK DOOR STAY
68961-WAA01

DB2#,4#,81

 2
Common parts
90118-WA428
90118-WA442
Linked diagrams
6708

ILLUST NO. 2 OF 2(1903- )

Click highlighted areas on diagram

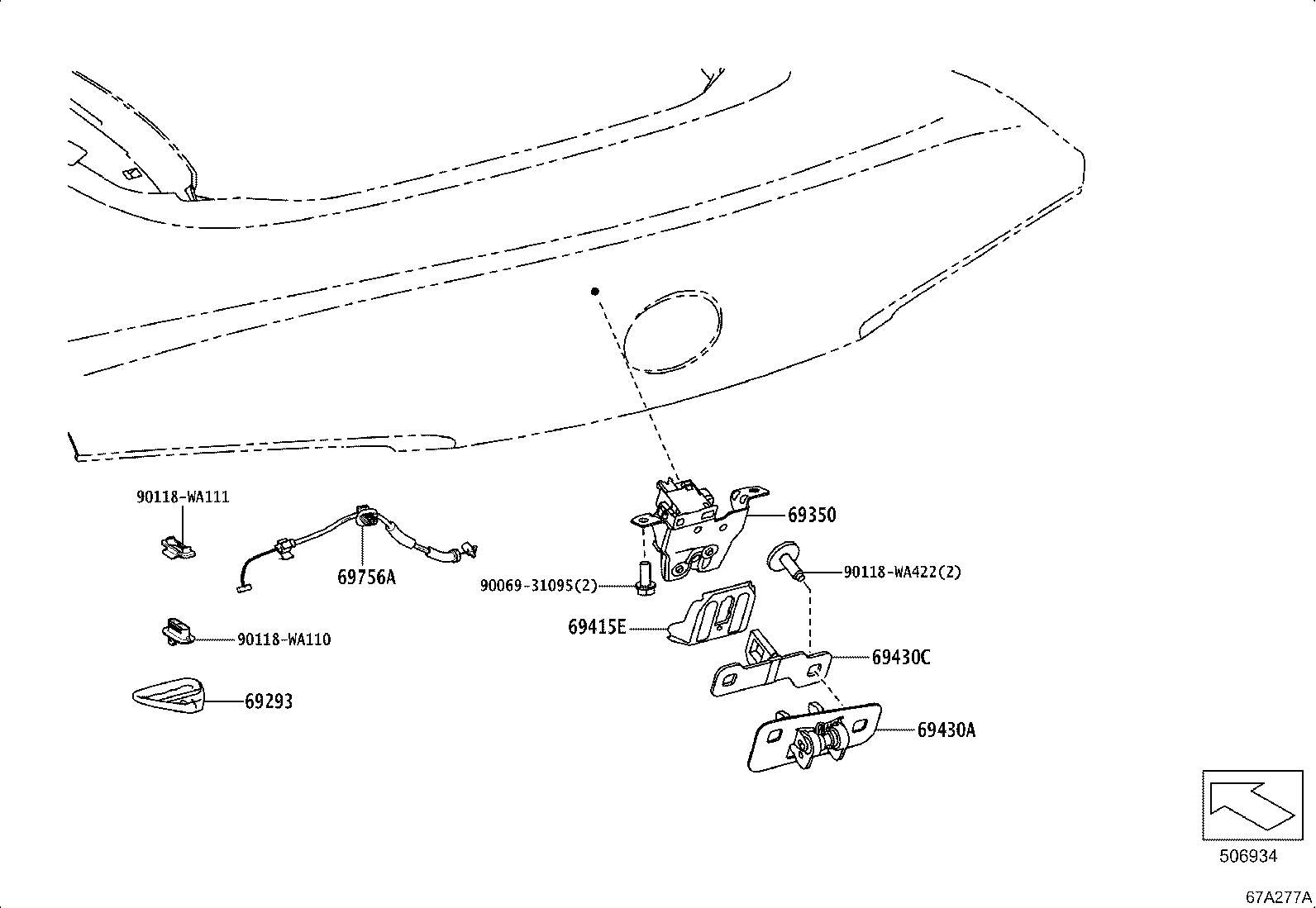

BACK DOOR LOCK & STRIKER

diagram 69293 69350 69415E 69430A 69430C 69756A 9006931095 90118WA110 90118WA111 90118WA422
Part # Description Qty Price
69293 - HANDLE, BACK DOOR
90118-WA787

DB2#,4#,81

LUG & BACK DR.RELEASE-ELECTRIC & EMERGENCY UNLOCK

 1
69350 - LOCK ASSY, BACK DOOR
64600-WAA01

DB2#,4#,81

 1
69415E - COVER, BACK DOOR LOCK STRIKER
69321-WAA01

DB2#,4#,81

 1
69430A - STRIKER ASSY, BACK DOOR LOWER LOCK
64443-WAA01

DB2#,4#,81

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
64620-WAA01

DB2#,4#,81

 1
69756A - CABLE, BACK DOOR LOCKING CONTROL
69730-WAA01

DB2#,4#,81

LUG & BACK DR.RELEASE-ELECTRIC & EMERGENCY UNLOCK

 1
Common parts
90069-31095
90118-WA110
90118-WA111
90118-WA422
