DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

Click highlighted areas on diagram

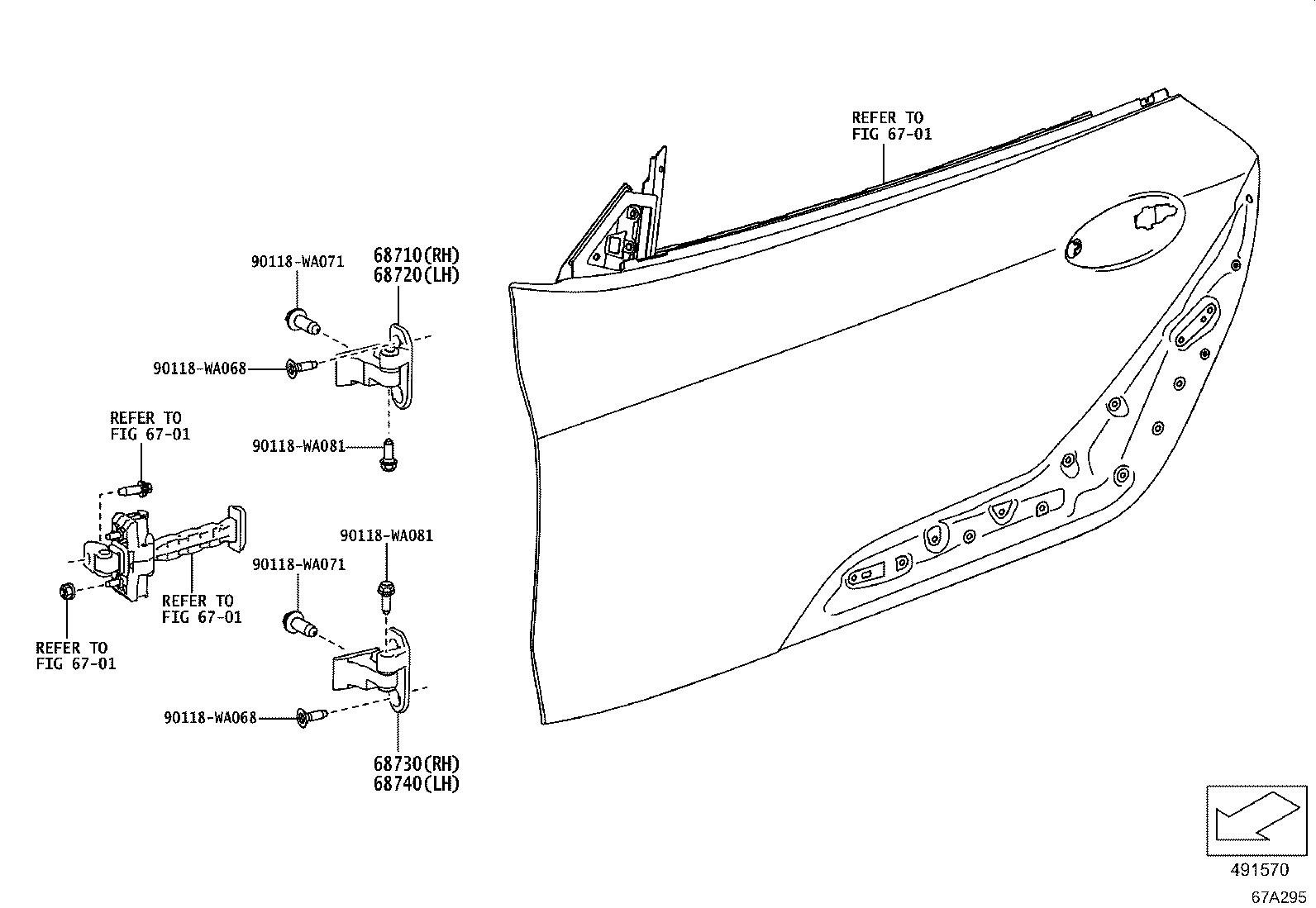

diagram 6701 6701 6701 6701 68710 68720 68730 68740 90118WA068 90118WA068 90118WA071 90118WA071 90118WA081 90118WA081
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-WAA01

DB2#,4#,81

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-WAA01

DB2#,4#,81

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-WAA01

DB2#,4#,81

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-WAA01

DB2#,4#,81

 1
Common parts
90118-WA068
90118-WA071
90118-WA081
Linked diagrams
6701

(1903- )

Click highlighted areas on diagram

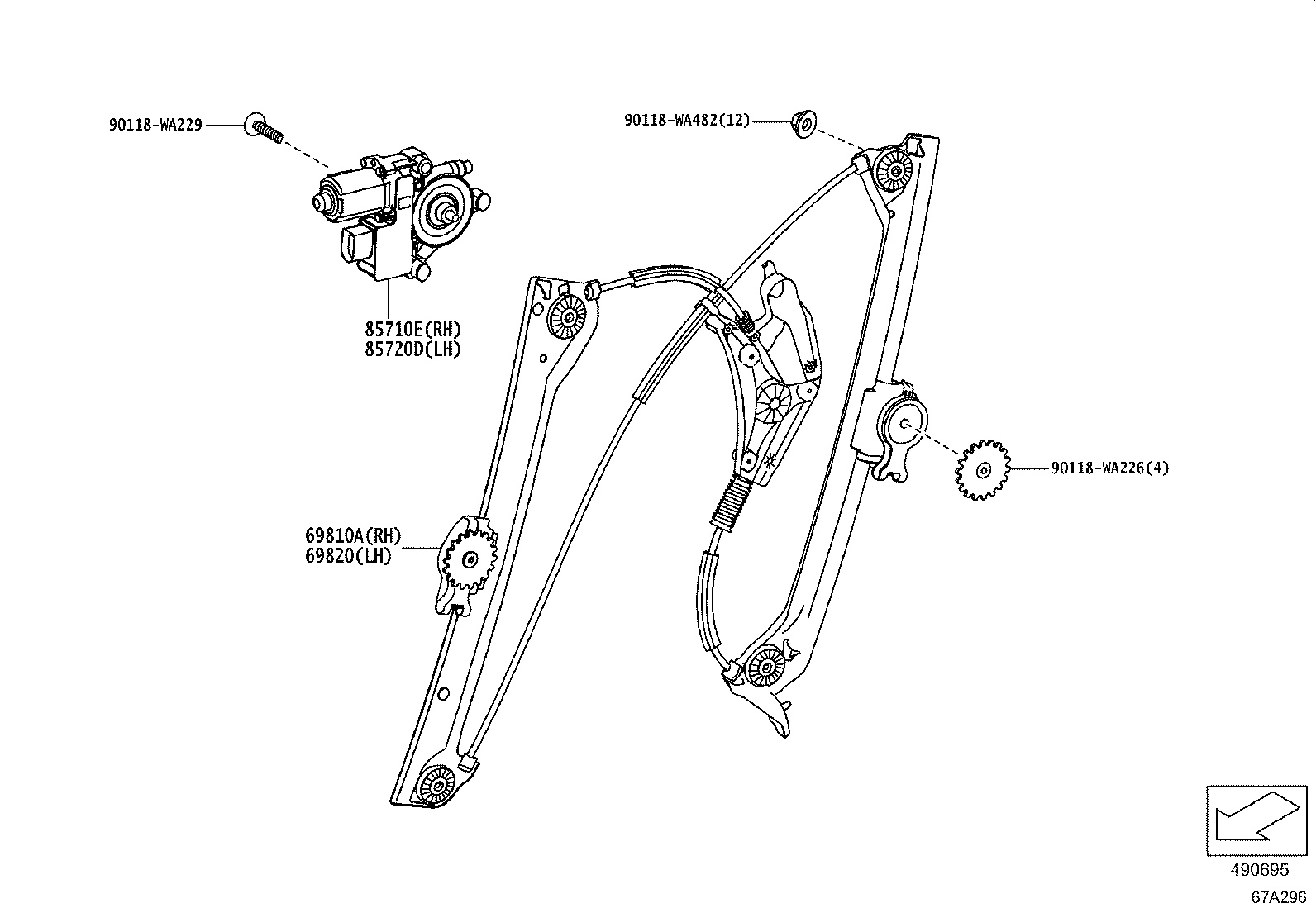

diagram 69810A 69820 85710E 85720D 90118WA226 90118WA229 90118WA482
Part # Description Qty Price
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69801-WAA01

DB2#,4#,81

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69802-WAA01

DB2#,4#,81

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-WAA04

DB2#,4#,8#

 1
85710-WAA05

DB2#,4#,81

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-WAA03

DB2#,4#,81

 1
85720-WAA02

DB2#,4#,8#

 1
Common parts
90118-WA226
90118-WA229
90118-WA482
