DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1903- )

Click highlighted areas on diagram

diagram 51201 51219 51447D 57795 90118WA196 90118WA197 90118WA214 90118WA215 90118WA216 90118WA239 90118WA241 90118WA245 90118WA356 90118WA357 90118WA416 90118WA417 90118WA754 90118WA818
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-WAA01

DB2#,4#,81

 1
51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51202-WAA01

DB2#,4#,81

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-WAA01

DB2#,4#,81

 1
57795 - NUT, SUSPENSION MENBER BODY BRACKET
90118-WA198

DB2#,4#,81

 2
Common parts
90118-WA196
90118-WA197
90118-WA214
90118-WA215
90118-WA216
90118-WA239
90118-WA241
90118-WA245
90118-WA356
90118-WA357
90118-WA416
90118-WA417
90118-WA754
90118-WA818

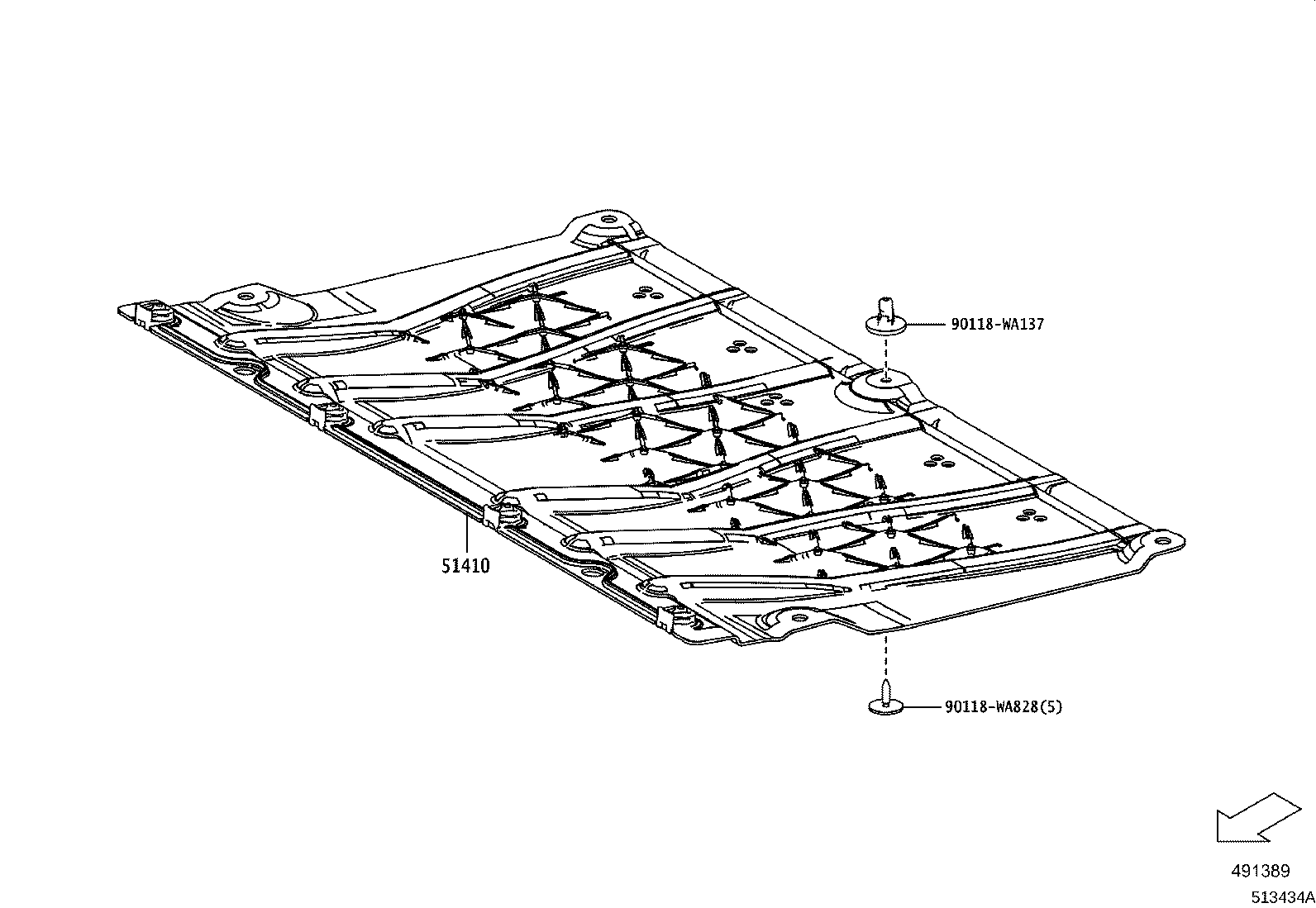

ILLUST NO. 3 OF 4(1903- )

Click highlighted areas on diagram

diagram 51410 90118WA137 90118WA828
Part # Description Qty Price
51410 - COVER ASSY, ENGINE UNDER, NO.1
51410-WAA01

DB2#,4#,81

 1
Common parts
90118-WA137
90118-WA828

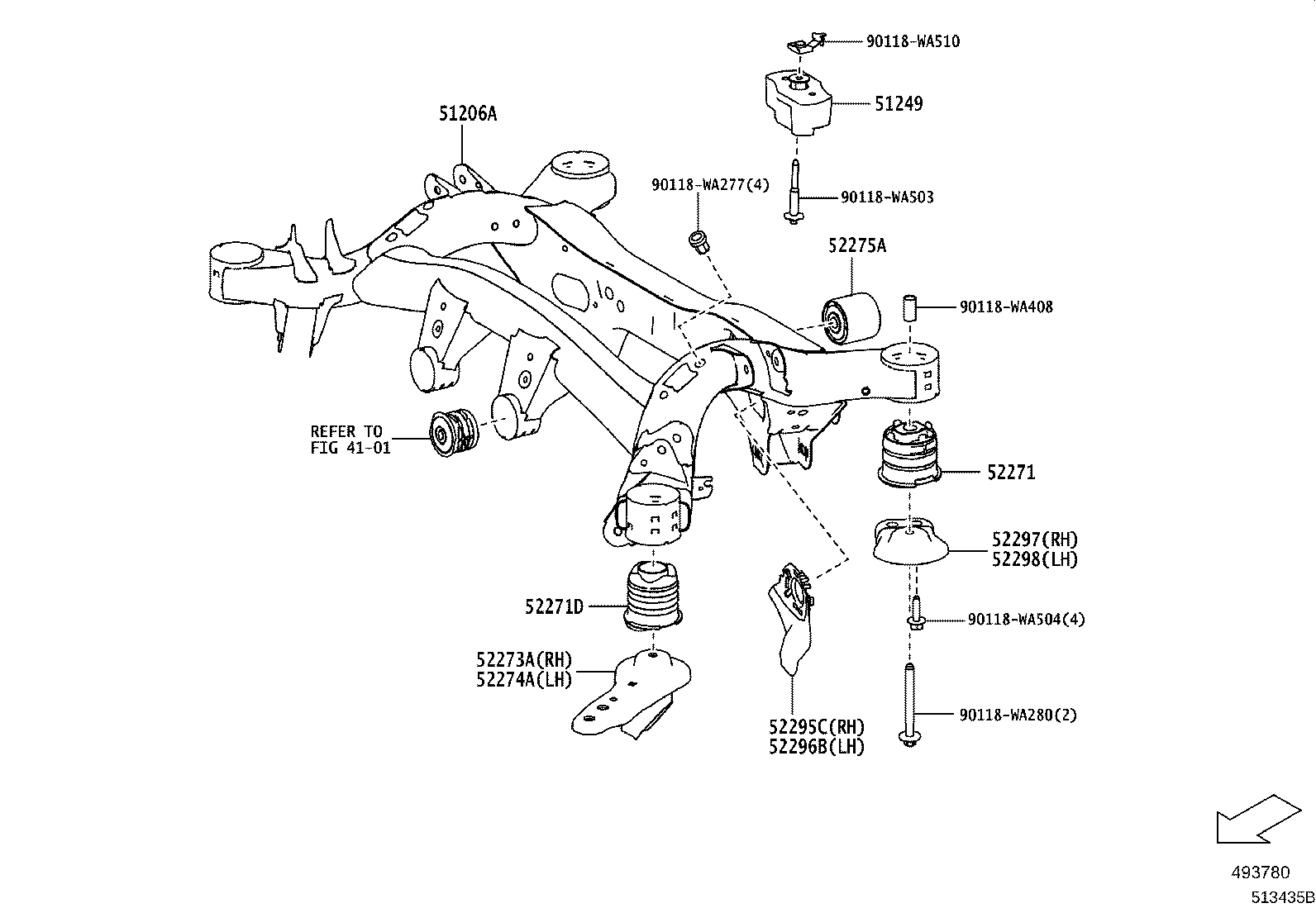

ILLUST NO. 2 OF 4(1903- )

Click highlighted areas on diagram

diagram 4101 51206A 51249 52271 52271D 52273A 52274A 52275A 52295C 52296B 52297 52298 90118WA277 90118WA280 90118WA408 90118WA503 90118WA504 90118WA510
Part # Description Qty Price
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-WAA06

DB2#,8#

 1
51206-WAA08

DB2#,81

 1
52271 - CUSHION, REAR SUSPENSION MEMBER
52275-WAA01

DB2#,4#,81

 2
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-WAA02

DB2#,4#,81

 2
52271-WAA01

DB2#,4#,8#

 2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52203-WAA01

DB2#,4#,81

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52204-WAA01

DB2#,4#,81

 1
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-WAA03

DB2#,81

 1
52295C - GUARD, STONE, RH
90118-WA509

DB2#,4#,81

 1
52296B - GUARD, STONE, LH
90118-WA507

DB2#,81

 1
52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH
52274-WAA01

DB2#,4#,81

 1
52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH
52274-WAA01

DB2#,4#,81

 1
Common parts
90118-WA277
90118-WA280
90118-WA408
90118-WA503
90118-WA504
90118-WA510
Linked diagrams
4101

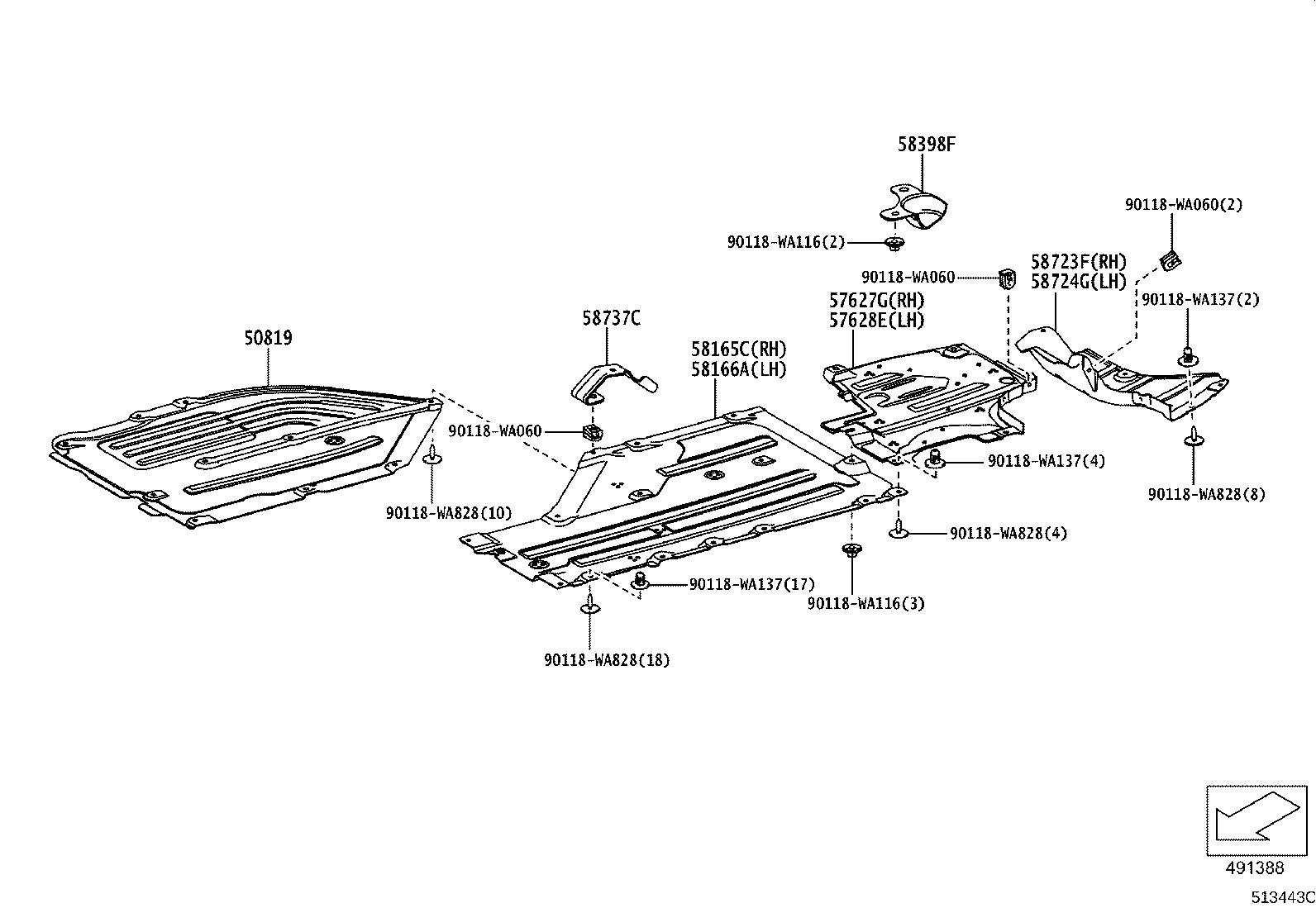

ILLUST NO. 4 OF 4(1903- )

Click highlighted areas on diagram

diagram 50819 57627G 57628E 58165C 58166A 58398F 58723F 58724G 58737C 90118WA060 90118WA060 90118WA060 90118WA116 90118WA116 90118WA137 90118WA137 90118WA137 90118WA828 90118WA828 90118WA828 90118WA828
Part # Description Qty Price
50819 - COVER, FRONT FLOOR
58167-WAA01

DB2#,4#,81

 1
57627G - COVER, REAR FLOOR SIDE MEMBER, RH
57627-WAA01

DB2#,4#,81

 1
57628E - COVER, REAR FLOOR SIDE MEMBER, LH
57628-WAA01

DB2#,4#,81

 1
58165C - COVER, FRONT FLOOR, RH
53882-WAA01

DB2#,4#,81

 1
58166A - COVER, FRONT FLOOR, LH
53883-WAA01

DB2#,4#,81

 1
58398F - COVER, FLOOR UNDER, NO.1
58398-WAA01

DB2#,4#,81

 1
58723F - PROTECTOR, UNDERBODY, REAR RH
58723-WAA01

DB2#,4#,81

 1
58724G - PROTECTOR, UNDERBODY, REAR LH
58724-WAA01

DB2#,4#,81

 1
58737C - BRACKET, FLOOR COVER
58737-WAA01

DB2#,4#,81

 1
Common parts
90118-WA060
90118-WA116
90118-WA137
90118-WA828
