DB21L-ZTLW (2019)
Toyota Supra

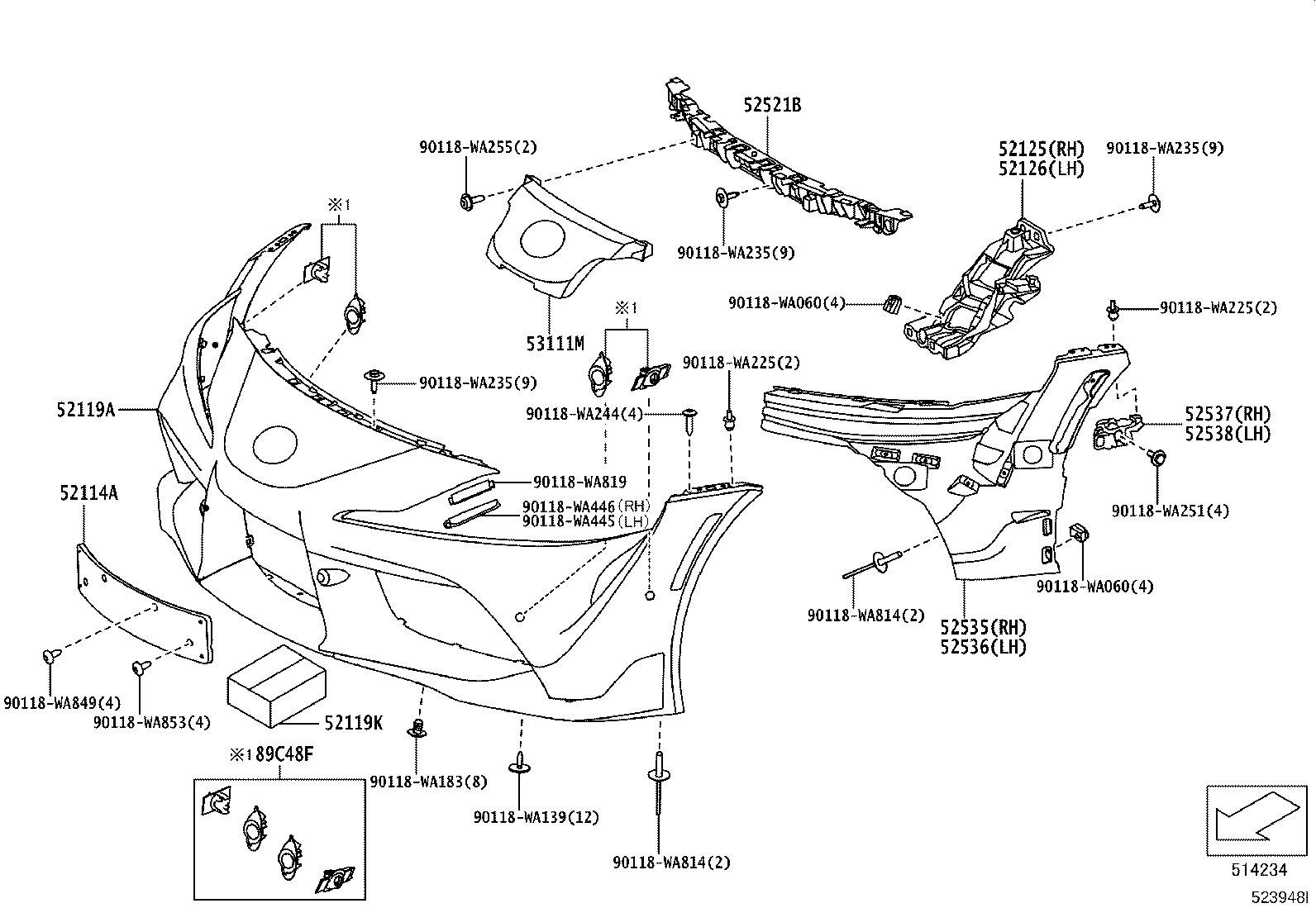

ILLUST NO. 1 OF 4(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-WAA01 |
DB2#,4#,81 SWITZERLAND SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 FRANCE SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 NETHERLAND SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 AUSTRIA SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 GERMANY SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 SPAIN SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 ITALY SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 WITHOUT(DESTINATION PACKAGE(ERP))&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 BELGIUM, LUXEMBOURG SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 UNITED KINGDOM SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 ICELAND SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 USA SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 ABU DHABI SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 CENTRAL EAST EU SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 EU MEDITERRANEAN SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 BALTIC SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 BAHRAIN SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 DUBAI, SHARJAH SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 NORDIC SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 KUWAIT SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 CANADA SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 QATAR SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 PORTUGAL SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 LEBANON SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 REST EUROPE SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 ISRAEL, PALESTINE SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 SAUDI ARABIA SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 TURKEY SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 MEXICO SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 OMAN SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 GUAM SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 MIDDLE & NEAR EAST SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 SRI LANKA SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 SINGAPORE SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 EAST EUROPE 2 SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 RUSSIA SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 MALAYSIA SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 REST ASIA SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 INDONESIA SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 EAST AFRICAN COMMUNITY SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 SOUTH AFRICA SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 EAST EUROPE 1 SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 HONG KONG, MACAU SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 PHILIPPINES SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA02 |
DB2#,4#,81 JAPAN SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 CHINA SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 NEW ZEALAND SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 THAILAND SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA02 |
DB2#,4#,81 JAPAN SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 TAIWAN SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52114-WAA02 |
DB2#,4#,81 LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 52114-WAA01 |
DB2#,4#,81 AUSTRALIA SPEC&LICENSE PLATE BRACKET-ECE SIZE ATTACHMENT |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-WAA05 |
DB2#,4#,81 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-WAA01 |
DB2#,4#,81 |
1 | ||
| 52119K - REPAIR KIT, FRONT BUMPER | ||||
| 90118-WA832 |
DB2#,4#,81 |
1 | ||
| 52125 - RETAINER, FRONT BUMPER, RH | ||||
| 52535-WAA01 |
DB2#,4#,81 |
1 | ||
| 52126 - RETAINER, FRONT BUMPER, LH | ||||
| 52536-WAA01 |
DB2#,4#,81 |
1 | ||
| 52521B - RETAINER, FRONT BUMPER, UPPER | ||||
| 52141-WAA01 |
DB2#,4#,81 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52125-WAA01 |
DB2#,4#,81 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52126-WAA01 |
DB2#,4#,81 |
1 | ||
| 52537 - RETAINER, FRONT BUMPER END, RH | ||||
| 52537-WAA01 |
DB2#,4#,81 |
1 | ||
| 52538 - RETAINER, FRONT BUMPER END, LH | ||||
| 52538-WAA01 |
DB2#,4#,81 |
1 | ||
| 53111M - SUPPORT, FRONT BUMPER, INNER | ||||
| 53111-WAA01 |
DB2#,4#,81 |
1 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-WAA02 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA060 | ||||
| 90118-WA139 | ||||
| 90118-WA183 | ||||
| 90118-WA225 | ||||
| 90118-WA235 | ||||
| 90118-WA244 | ||||
| 90118-WA251 | ||||
| 90118-WA255 | ||||
| 90118-WA445 | ||||
| 90118-WA446 | ||||
| 90118-WA814 | ||||
| 90118-WA819 | ||||
| 90118-WA849 | ||||
| 90118-WA853 | ||||

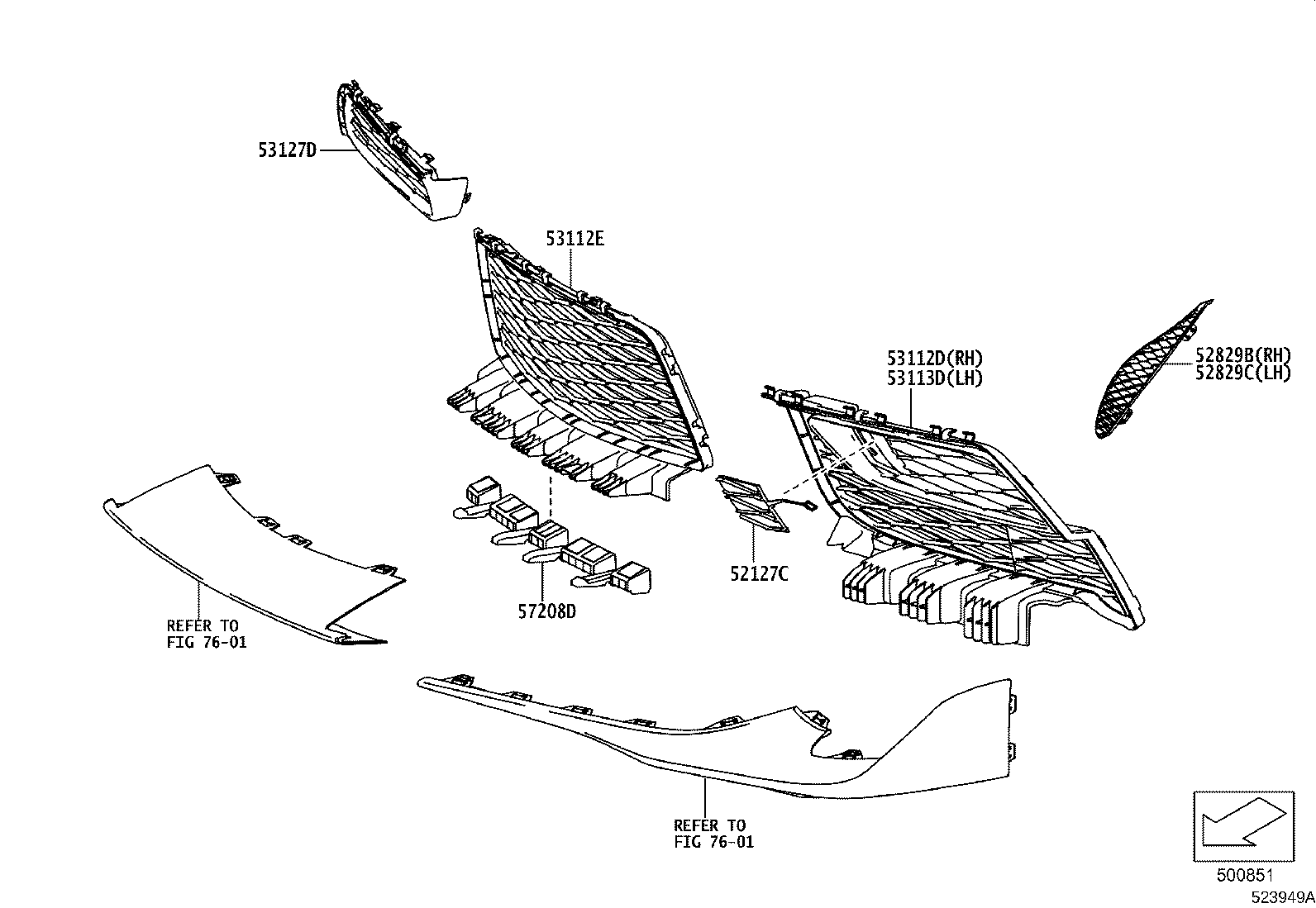

ILLUST NO. 2 OF 4(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-WAA01 |
DB2#,4#,81 |
1 | ||
| 52829B - GRILLE, COOL AIR INTAKE, RH | ||||
| 52812-WAA01 |
DB2#,4#,81 |
1 | ||
| 52829C - GRILLE, COOL AIR INTAKE, LH | ||||
| 52811-WAA01 |
DB2#,4#,81 |
1 | ||
| 53112D - GRILLE, RADIATOR, LOWER RH | ||||
| 53141-WAA03 |
DB2#,81 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-WAA01 |
DB2#,4#,81 |
1 | ||
| 53113D - GRILLE, RADIATOR, LOWER LH | ||||
| 53142-WAA03 |
DB2#,81 |
1 | ||
| 53127D - GRILLE, RADIATOR, LOWER SIDE RH | ||||
| 52813-WAA01 |
DB2#,4#,81 |
1 | ||
| 52813-WAA02 |
DB2#,4#,81 CRUISE CONTROL-WITH(ALL-SPEED *ACC) |
1 | ||
| 57208D - SPACER SUB-ASSY, FRONT BUMPER SUPPORT, NO.2 | ||||
| 52148-WAA03 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 7601 | ||||

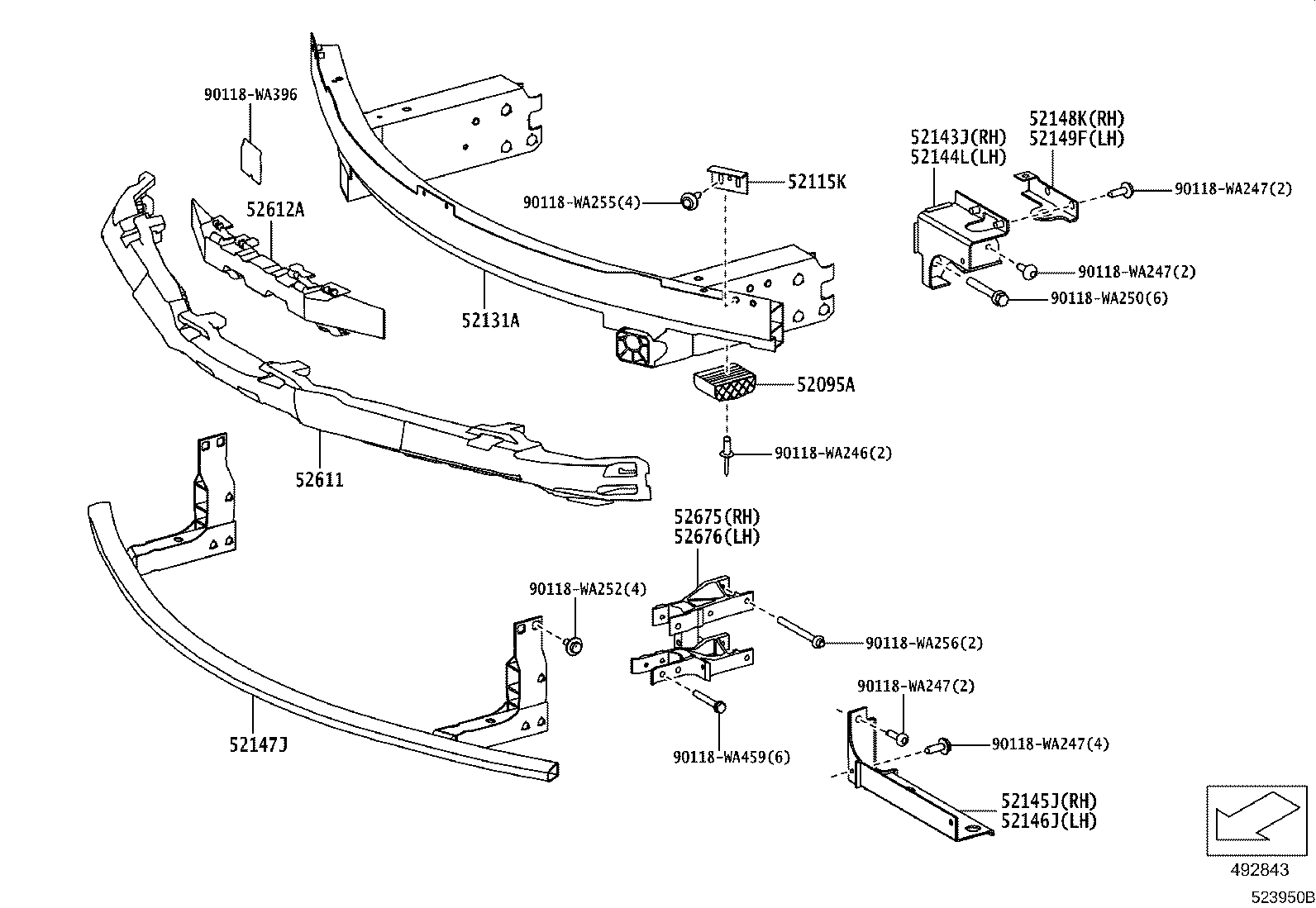

ILLUST NO. 3 OF 4(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52095A - ABSORBER, IMPACT | ||||
| 52095-WAA01 |
DB2#,4#,81 |
2 | ||
| 52115K - SUPPORT, FRONT BUMPER SIDE | ||||
| 52115-WAA01 |
DB2#,4#,81 |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-WAA01 |
DB2#,4#,81 |
1 | ||
| 52147J - REINFORCEMENT, FRONT BUMPER, LOWER | ||||
| 52147-WAA01 |
DB2#,4#,81 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-WAA01 |
DB2#,4#,81 |
1 | ||
| 52612A - SUPPORT, FRONT BUMPER ENERGY ABSORBER | ||||
| 52612-WAA01 |
DB2#,4#,81 |
1 | ||
| 52675 - SUPPORT, FRONT BUMPER LOWER SIDE, RH | ||||
| 52675-WAA01 |
DB2#,4#,81 |
1 | ||
| 52676 - SUPPORT, FRONT BUMPER LOWER SIDE, LH | ||||
| 52676-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA246 | ||||
| 90118-WA247 | ||||
| 90118-WA250 | ||||
| 90118-WA252 | ||||
| 90118-WA255 | ||||
| 90118-WA256 | ||||
| 90118-WA396 | ||||
| 90118-WA459 | ||||

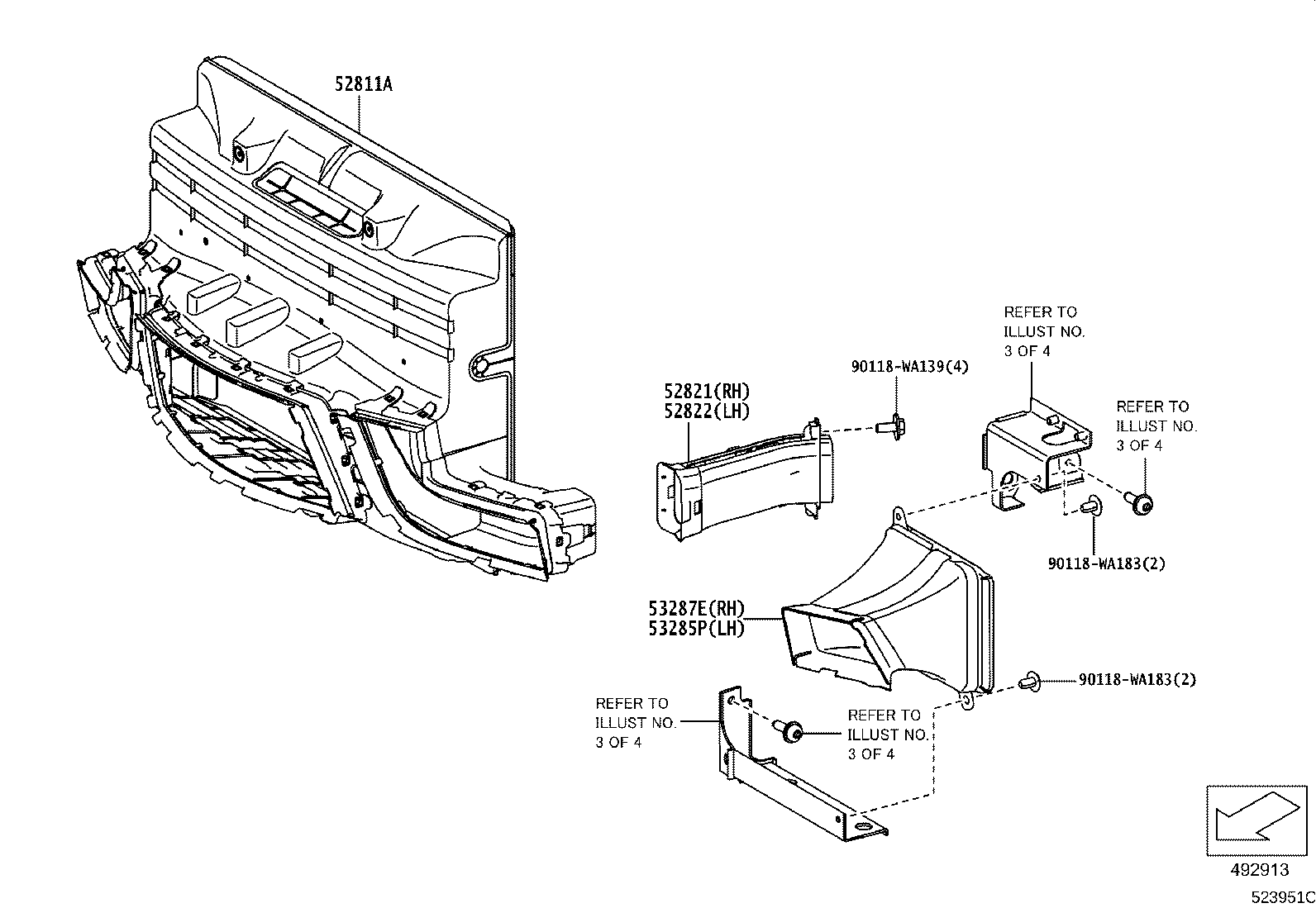

ILLUST NO. 4 OF 4(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52811A - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 53207-WAA01 |
DB2#,4#,81 |
1 | ||
| 52821 - DUCT, AIR INTAKE, RH | ||||
| 52821-WAA01 |
DB2#,4#,81 |
1 | ||
| 52822 - DUCT, AIR INTAKE, LH | ||||
| 52822-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA139 | ||||
| 90118-WA183 | ||||
