KP61L-PGMREA (1982)

Toyota Starlet

Production Aug 1982 - Dec 1983
Engine 4KE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

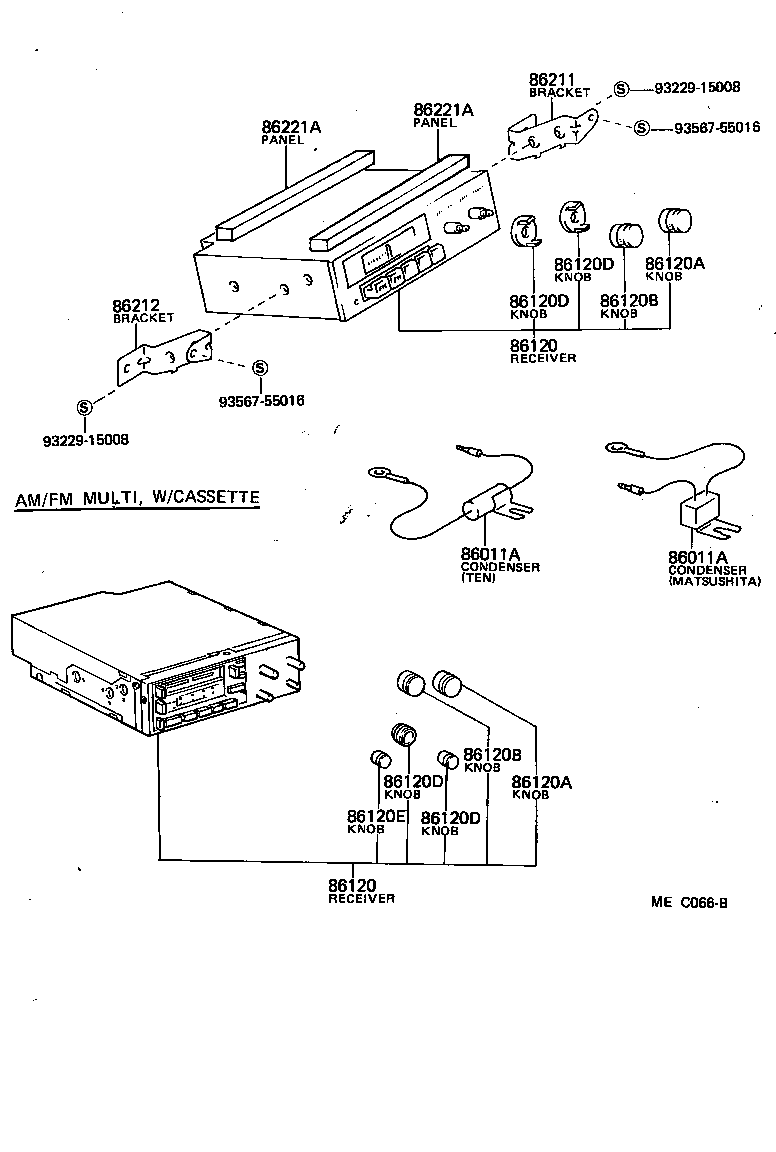

Click highlighted areas on diagram

diagram 86011A 86011A 86120 86120 86120A 86120A 86120B 86120B 86120D 86120D 86120D 86120D 86120E 86211 86212 86221A 86221A 9322915008 9322915008 9356755016 9356755016
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04033

KP61

IG COIL,MATSUSHITA

 1
90980-04027

KP61

IG COIL,TEN

 1
90980-04010

KP61..USA

REGULATOR,EXCL/ARCTIC

 1
86011A - CONDENSER, RADIO SETTING
90980-04033

KP61

IG COIL,MATSUSHITA

 1
90980-04027

KP61

IG COIL,TEN

 1
90980-04010

KP61..USA

REGULATOR,EXCL/ARCTIC

 1
86120 - RECEIVER ASSY, RADIO
86120-10200

KP61

AM/FM & CASSETE

 1
86120-14450

KP61

AM/FM

 1
86120-16110

KP61

AM/FM

 1
86120-14420

KP61

AM

 1
86120-12360

KP61

AM/FM & CASSETE

 1
86120-10180

KP61

AM

 1
86120-10250

KP61

AM/FM & CASSETE

 1
86120 - RECEIVER ASSY, RADIO
86120-10200

KP61

AM/FM & CASSETE

 1
86120-14450

KP61

AM/FM

 1
86120-16110

KP61

AM/FM

 1
86120-14420

KP61

AM

 1
86120-12360

KP61

AM/FM & CASSETE

 1
86120-10180

KP61

AM

 1
86120-10250

KP61

AM/FM & CASSETE

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14180

KP61

AM,AM/FM

 1
86128-12100

KP61

AM/FM & CASSETTE

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14180

KP61

AM,AM/FM

 1
86128-12100

KP61

AM/FM & CASSETTE

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-14160

KP61

AM,AM/FM

 1
86128-12080

KP61

AM/FM & CASSETTE

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-14160

KP61

AM,AM/FM

 1
86128-12080

KP61

AM/FM & CASSETTE

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-14200

KP61

AM

 1
86128-14200

KP61

AM/FM

 2
86128-14420

KP61

AM/FM & CASSETTE (BASS)

 1
86128-14440

KP61

AM/FM & CASSETTE (TRE)

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-14200

KP61

AM

 1
86128-14200

KP61

AM/FM

 2
86128-14420

KP61

AM/FM & CASSETTE (BASS)

 1
86128-14440

KP61

AM/FM & CASSETTE (TRE)

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-14200

KP61

AM

 1
86128-14200

KP61

AM/FM

 2
86128-14420

KP61

AM/FM & CASSETTE (BASS)

 1
86128-14440

KP61

AM/FM & CASSETTE (TRE)

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-14200

KP61

AM

 1
86128-14200

KP61

AM/FM

 2
86128-14420

KP61

AM/FM & CASSETTE (BASS)

 1
86128-14440

KP61

AM/FM & CASSETTE (TRE)

 1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-14320

KP61

 1
86211 - BRACKET, RADIO, NO.1
86207-10020

KP61

AM/FM & CASSETE

 1
86211-10070

KP61

 1
86207-10010

KP61

AM,AM/FM

 1
86212 - BRACKET, RADIO, NO.2
86208-10010

KP61

AM,AM/FM

 1
86208-10020

KP61

AM/FM & CASSETE

 1
86212-10060

KP61

 1
86221A - PANEL, RADIO RECEIVER
86221-12020

KP61

AM,AM/FM

 2
86221A - PANEL, RADIO RECEIVER
86221-12020

KP61

AM,AM/FM

 2
Common parts
93229-15008
93567-55016
