KP61L-PGMREA (1982)
Toyota Starlet
Production
Aug 1982
-
Dec 1983
Engine
4KE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )

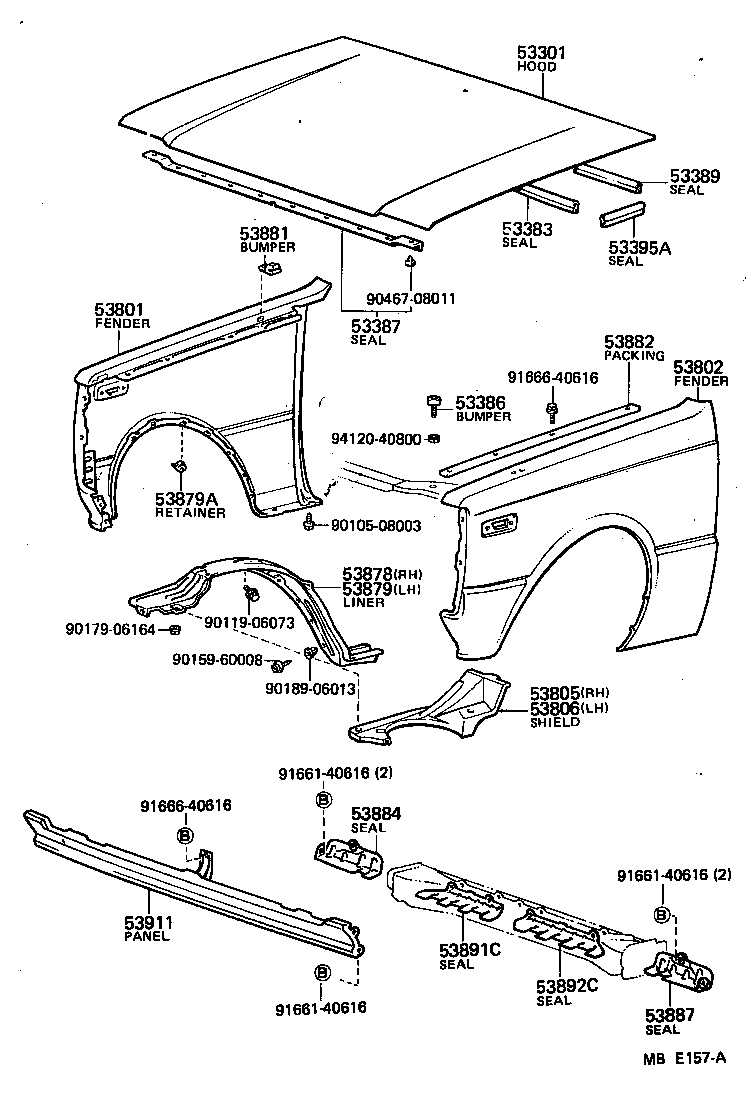

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-10191 |
KP61 |
1 | ||
| 53301-10190 |
KP61 |
1 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-10011 |
KP61 |
1 | ||
| 53386 - BUMPER, HOOD, REAR | ||||
| 53382-20011 |
KP61 |
2 | ||
| 53387 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-10030 |
KP61 |
1 | ||
| 53381-10031 |
KP61 |
1 | ||
| 53389 - SEAL, HOOD TO COWL TOP SIDE | ||||
| 53389-10011 |
KP61 |
2 | ||
| 53389-10020 |
KP61 |
1 | ||
| 53395A - SEAL, HOOD TO FRONT END PANEL, NO.1 | ||||
| 53395-10010 |
KP61 |
1 | ||
| 53395-10010 |
KP61 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-10340 |
KP61 |
1 | ||
| 53801-10400 |
KP61 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-10390 |
KP61 |
1 | ||
| 53802-10440 |
KP61 W/O ANTENNA HOLE |
1 | ||
| 53802-10520 |
KP61 W/ANTENNA HOLE |
1 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-10011 |
KP61 |
1 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-10011 |
KP61 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-10010 |
KP61 |
8 | ||
| 53881 - BUMPER, FENDER TO HOOD | ||||
| 53384-10040 |
KP61 |
2 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-10041 |
KP61 |
2 | ||
| 53882-10042 |
KP61 |
2 | ||
| 53884 - SEAL, FRONT FENDER SPLASH SHIELD, RH | ||||
| 53888-10021 |
KP61 |
1 | ||
| 53888-10020 |
KP61 |
1 | ||
| 53887 - SEAL, FRONT FENDER SPLASH SHIELD, LH | ||||
| 53889-10010 |
KP61 |
1 | ||
| 53889-10011 |
KP61 |
1 | ||
| 53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT | ||||
| 53891-10010 |
KP61 |
1 | ||
| 53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-10010 |
KP61 |
1 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53902-10040 |
KP61 LWR |
1 | ||
| 53902-10031 |
KP61 |
1 | ||
| 53901-10080 |
KP61 UPR |
1 | ||
| Common parts | ||||
| 90105-08003 | ||||
| 90119-06073 | ||||
| 90159-60008 | ||||
| 90179-06164 | ||||
| 90189-06013 | ||||
| 90467-08011 | ||||
| 91661-40616 | ||||
| 91666-40616 | ||||
| 94120-40800 | ||||
