KP61L-PGMREA (1982)

Toyota Starlet

Production Aug 1982 - Dec 1983
Engine 4KE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

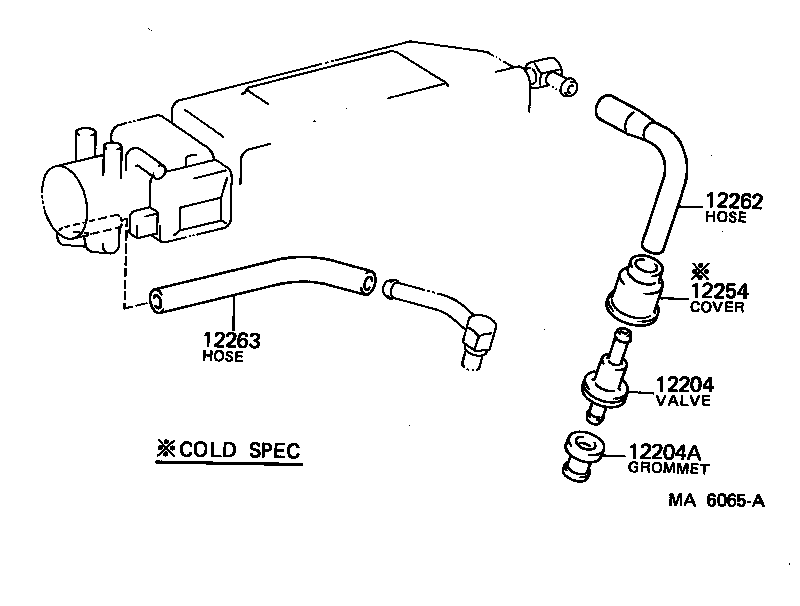

Click highlighted areas on diagram

diagram 12204 12204A 12254 12262 12263
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-13060

4KE..KP61

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-16003

4K#..KP61

 1
12254 - COVER, VENTILATION VALVE
12236-24010

4KE..KP61..USA

COLD SPEC

 1
12262 - HOSE, VENTILATION, NO.2
12261-13040

4KE..KP61

 1
12263 - HOSE, VENTILATION, NO.3
90445-16569

4KE..KP61

 1
