KP61L-PGMRCK (1980)
Toyota Starlet
Production
Aug 1980
-
Aug 1982
Engine
4KC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

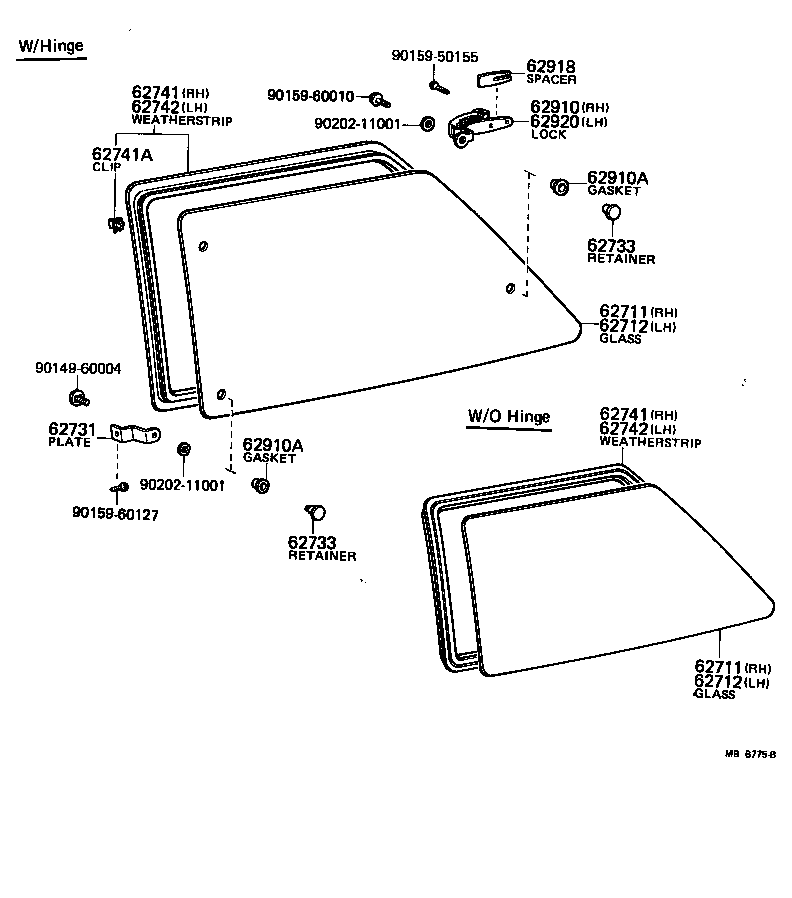

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62711 - GLASS, QUARTER WINDOW, RH | ||||
| 62711-10090 |
KP61 *TEM,T=4.0,W/HINGE |
1 | ||
| 62711-10111 |
KP61 *TEM,T=3.5,W/O HINGE |
1 | ||
| 62711 - GLASS, QUARTER WINDOW, RH | ||||
| 62711-10090 |
KP61 *TEM,T=4.0,W/HINGE |
1 | ||
| 62711-10111 |
KP61 *TEM,T=3.5,W/O HINGE |
1 | ||
| 62712 - GLASS, QUARTER WINDOW, LH | ||||
| 62712-10071 |
KP61 *TEM,T=3.5,W/O HINGE |
1 | ||
| 62712-10050 |
KP61 *TEM,T=4.0,W/HINGE |
1 | ||
| 62712 - GLASS, QUARTER WINDOW, LH | ||||
| 62712-10071 |
KP61 *TEM,T=3.5,W/O HINGE |
1 | ||
| 62712-10050 |
KP61 *TEM,T=4.0,W/HINGE |
1 | ||
| 62731 - PLATE, QUARTER OR SIDE WINDOW HINGE | ||||
| 62731-10080 |
KP61 |
4 | ||
| 62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE | ||||
| 62735-12010 |
KP61 |
6 | ||
| 62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE | ||||
| 62735-12010 |
KP61 |
6 | ||
| 62741 - WEATHERSTRIP, QUARTER WINDOW, RH | ||||
| 62741-10050 |
KP61 W/HINGE |
1 | ||
| 62741-10060 |
KP61 W/O HINGE |
1 | ||
| 62741 - WEATHERSTRIP, QUARTER WINDOW, RH | ||||
| 62741-10050 |
KP61 W/HINGE |
1 | ||
| 62741-10060 |
KP61 W/O HINGE |
1 | ||
| 62741A - CLIP, QUARTER WINDOW WEATHERSTRIP | ||||
| 62759-12010 |
KP61 W/HINGE |
6 | ||
| 62742 - WEATHERSTRIP, QUARTER WINDOW, LH | ||||
| 62742-10050 |
KP61 W/HINGE |
1 | ||
| 62742-10060 |
KP61 W/O HINGE |
1 | ||
| 62742 - WEATHERSTRIP, QUARTER WINDOW, LH | ||||
| 62742-10050 |
KP61 W/HINGE |
1 | ||
| 62742-10060 |
KP61 W/O HINGE |
1 | ||
| 62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH | ||||
| 62910-10060 |
KP61 |
1 | ||
| 62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) | ||||
| 90385-11001 |
KP61 |
6 | ||
| 62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) | ||||
| 90385-11001 |
KP61 |
6 | ||
| 62918 - SPACER, QUARTER WINDOW LOCK SUPPORT | ||||
| 62918-10030 |
KP61 W/HINGE |
6 | ||
| 62920 - LOCK ASSY, QUARTER WINDOW, LH | ||||
| 62910-10060 |
KP61 |
1 | ||
| Common parts | ||||
| 90149-60004 | ||||
| 90159-50155 | ||||
| 90159-60010 | ||||
| 90159-60127 | ||||
| 90202-11001 | ||||
