KP61L-PGMRCK (1980)
Toyota Starlet
Production
Aug 1980
-
Aug 1982
Engine
4KC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

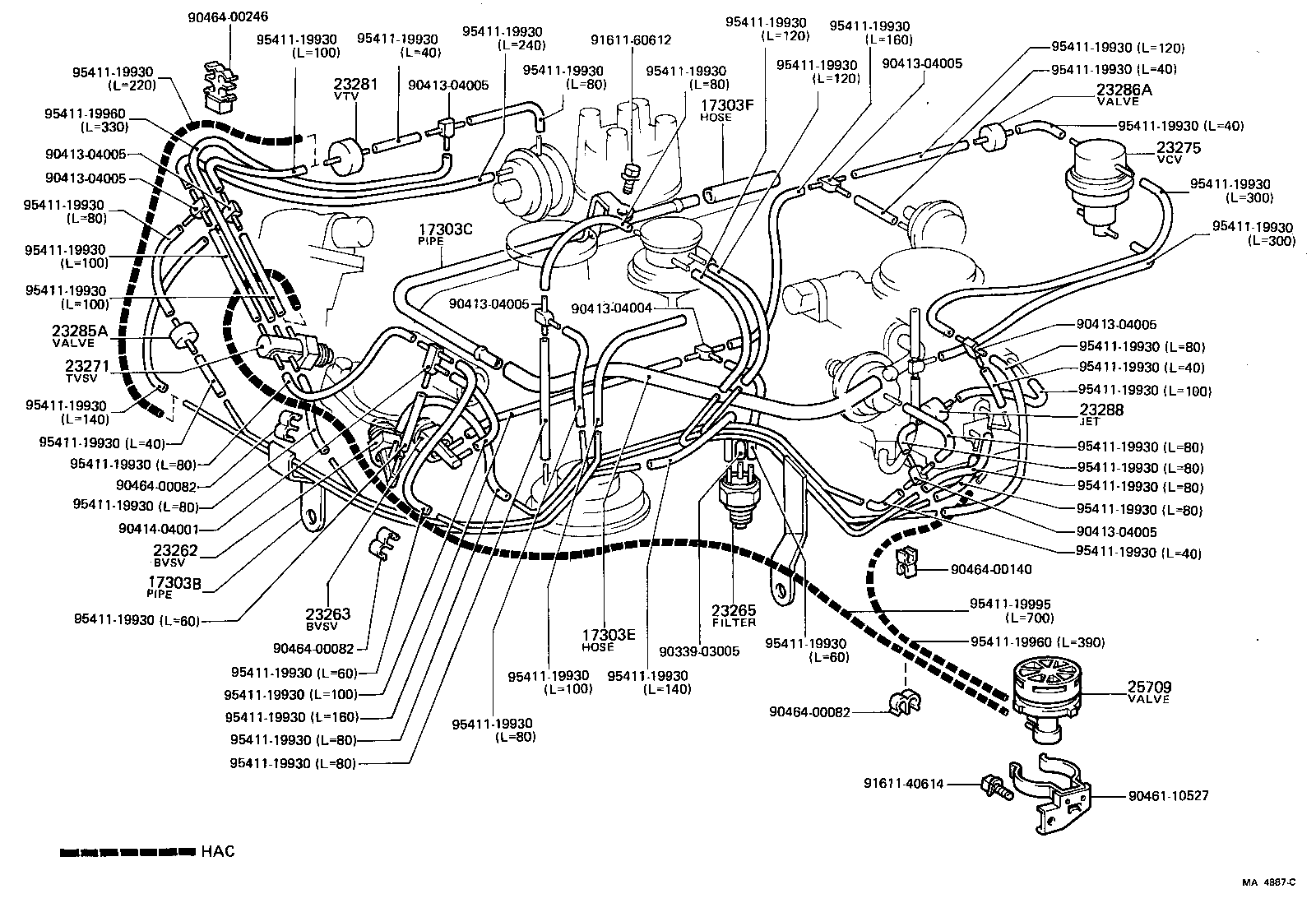

(8008-8108)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-13050 |
4KC..KP61 |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 23818-13020 |
4KC..KP61 |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90910-05129 |
4KC..KP61 |
1 | ||
| 17303F - HOSE, NO.2(FOR AIR PIPE) | ||||
| 90445-14069 |
4KC..KP61 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
4KC..KP61 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05052 |
4KC..KP61 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
4KC..KP61 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02067 |
4KC..KP61 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03102 |
4KC..KP61 |
1 | ||
| 90925-03132 |
4KC..KP61 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
4KC..KP61 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4KC..KP61 |
1 | ||
| 23286A - VALVE, CHECK, NO.2 | ||||
| 90917-10049 |
4KC..KP61 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
4KC..KP61 |
1 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-13011 |
4KC..KP61 COLD,HIGH ALTITUDE SPEC |
1 | ||
| 25709-13010 |
4KC..KP61 COLD,HIGH ALTITUDE SPEC |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90461-10527 | ||||
| 90464-00082 | ||||
| 90464-00140 | ||||
| 90464-00246 | ||||
| 91611-40614 | ||||
| 91611-60612 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||

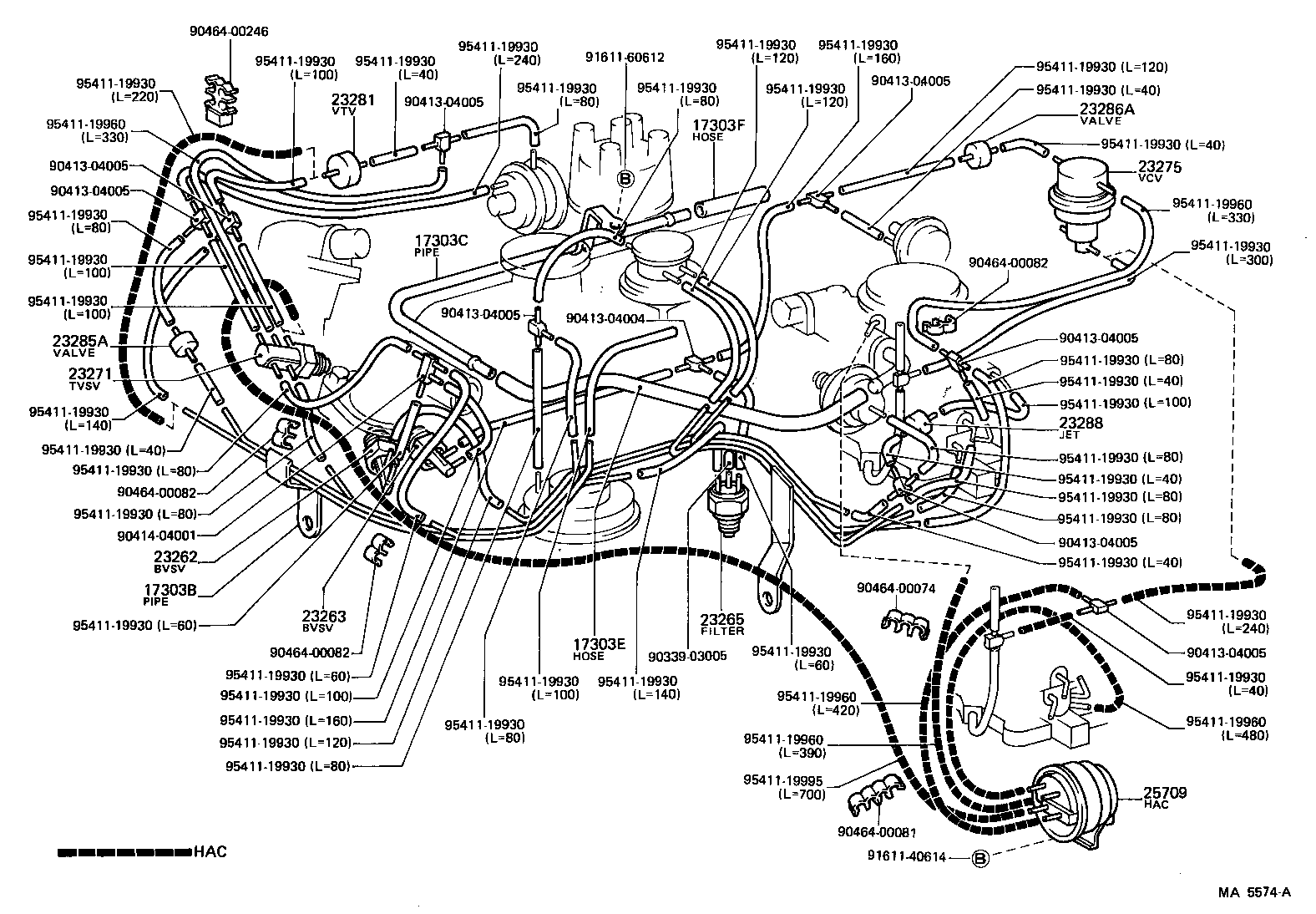

(8108-8208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-13050 |
4KC..KP61 |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 23818-13020 |
4KC..KP61 |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90910-05129 |
4KC..KP61 |
1 | ||
| 17303F - HOSE, NO.2(FOR AIR PIPE) | ||||
| 90445-14069 |
4KC..KP61 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
4KC..KP61 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05052 |
4KC..KP61 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
4KC..KP61 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02067 |
4KC..KP61 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03102 |
4KC..KP61 |
1 | ||
| 90925-03132 |
4KC..KP61 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
4KC..KP61 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4KC..KP61 |
1 | ||
| 23286A - VALVE, CHECK, NO.2 | ||||
| 90917-10049 |
4KC..KP61 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
4KC..KP61 |
1 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-13011 |
4KC..KP61 COLD,HIGH ALTITUDE SPEC |
1 | ||
| 25709-13010 |
4KC..KP61 COLD,HIGH ALTITUDE SPEC |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00246 | ||||
| 91611-40614 | ||||
| 91611-60612 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
(8108-8208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

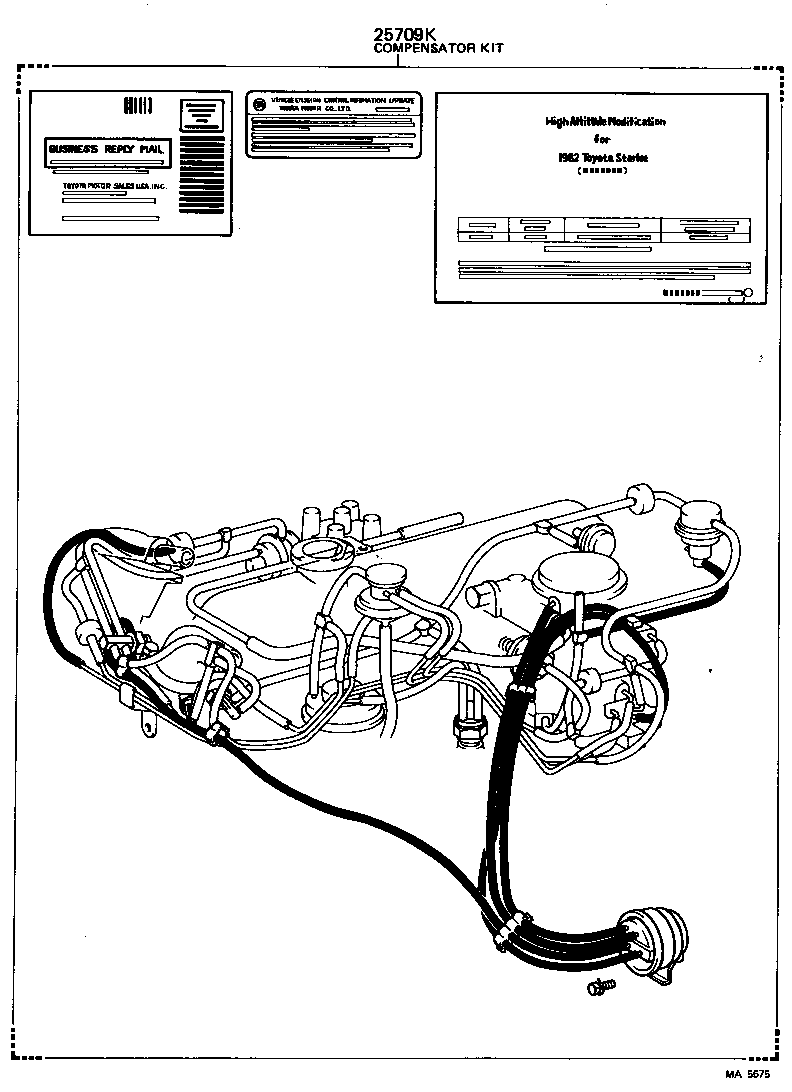

| 25709K - COMPENSATOR KIT, HIGH ALTITUDE | ||||
| 04215-13010 |
4KC..KP61 |
1 | ||
(8008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01009 | ||||
| 90925-01015 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01023 | ||||
| 90925-01024 | ||||
| 90925-01026 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01031 | ||||
| 90925-01032 | ||||
| 90925-01041 | ||||
| 90925-01042 | ||||
