KP61L-PGMRCA (1980)
Toyota Starlet
Production
Aug 1980
-
Aug 1982
Engine
4KC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8208)

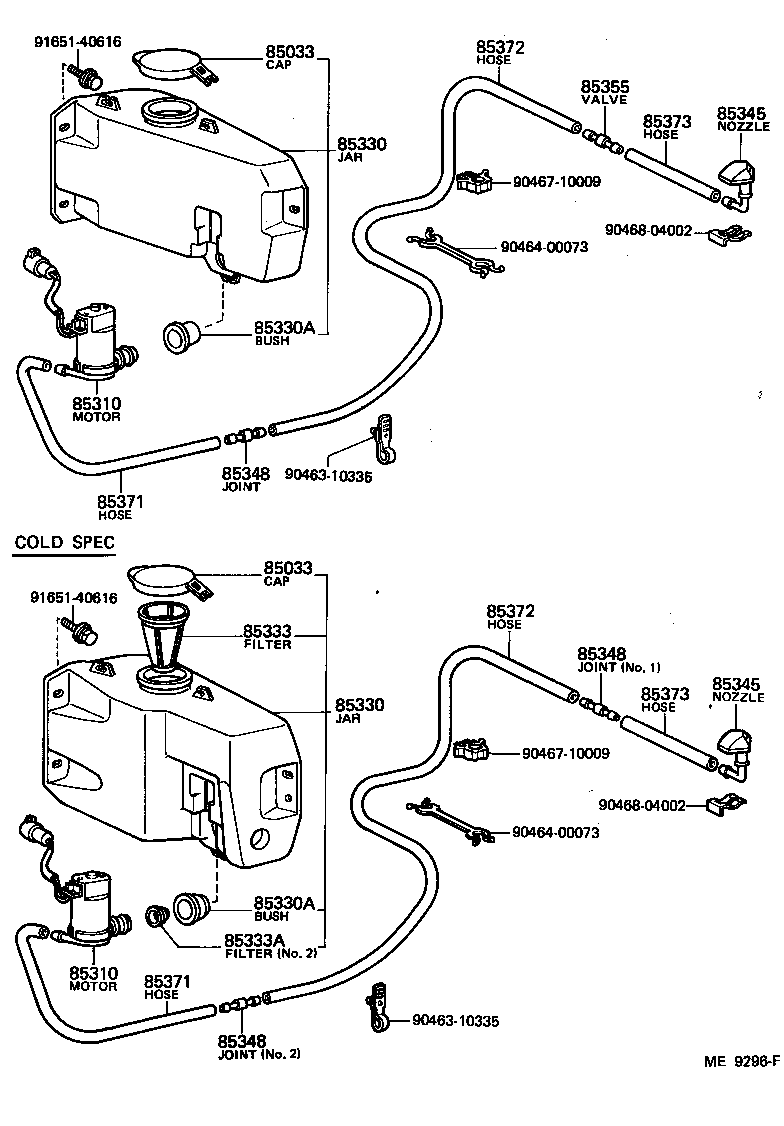

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-60010 |
KP61 |
1 | ||
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-60010 |
KP61 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20130 |
KP61 COLD SPEC |
1 | ||
| 85310-12120 |
KP61..USA |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20130 |
KP61 COLD SPEC |
1 | ||
| 85310-12120 |
KP61..USA |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-10081 |
KP61..USA |
1 | ||
| 85330-10161 |
KP61 COLD SPEC |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-10081 |
KP61..USA |
1 | ||
| 85330-10161 |
KP61 COLD SPEC |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
KP61..USA |
1 | ||
| 90099-32103 |
KP61 COLD SPEC |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
KP61..USA |
1 | ||
| 90099-32103 |
KP61 COLD SPEC |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-60010 |
KP61 COLD SPEC |
1 | ||
| 85333A - FILTER, WINDSHIELD WASHER JAR, NO.2 | ||||
| 85333-20020 |
KP61 COLD SPEC |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-10080 |
KP61 |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-10080 |
KP61 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-20010 |
KP61 NO.2,COLD SPEC |
1 | ||
| 85355-10060 |
KP61..USA |
1 | ||
| 85349-14010 |
KP61 NO.1,COLD SPEC |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-20010 |
KP61 NO.2,COLD SPEC |
1 | ||
| 85355-10060 |
KP61..USA |
1 | ||
| 85349-14010 |
KP61 NO.1,COLD SPEC |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-20010 |
KP61 NO.2,COLD SPEC |
1 | ||
| 85355-10060 |
KP61..USA |
1 | ||
| 85349-14010 |
KP61 NO.1,COLD SPEC |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-30010 |
KP61..USA |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90445-09016 |
KP61 COLD SPEC |
1 | ||
| 90446-06020 |
KP61..USA |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90445-09016 |
KP61 COLD SPEC |
1 | ||
| 90446-06020 |
KP61..USA |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85343-10080 |
KP61..USA *H,L=1310 |
1 | ||
| 85343-10050 |
KP61 COLD SPEC |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85343-10080 |
KP61..USA *H,L=1310 |
1 | ||
| 85343-10050 |
KP61 COLD SPEC |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
KP61..USA *H,L=80 |
1 | ||
| 90099-33080 |
KP61 *H,L=80,COLD SPEC |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
KP61..USA *H,L=80 |
1 | ||
| 90099-33080 |
KP61 *H,L=80,COLD SPEC |
1 | ||
| Common parts | ||||
| 90463-10335 | ||||
| 90464-00073 | ||||
| 90467-10009 | ||||
| 90468-04002 | ||||
| 91651-40616 | ||||
