KP61L-PGMRCA (1980)

Toyota Starlet

Production Aug 1980 - Aug 1982
Engine 4KC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

Click highlighted areas on diagram

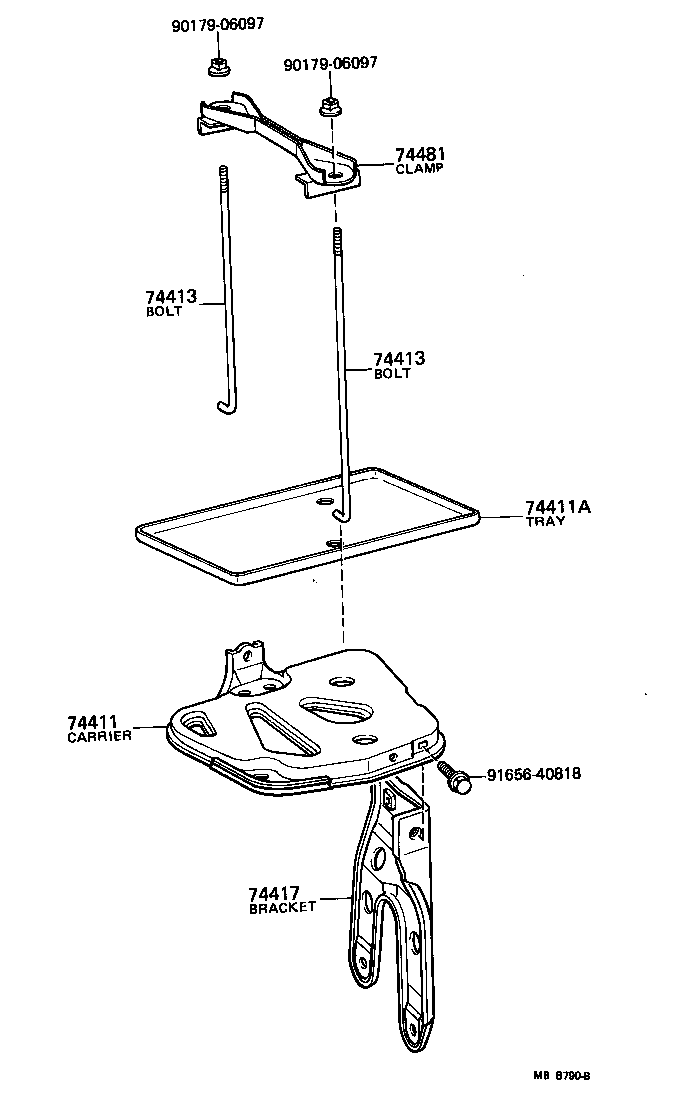

diagram 74411 74411A 74413 74413 74417 74481 9017906097 9017906097 9165640818
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-10082

KP61

 1
74411A - TRAY, BATTERY
74431-14030

KP61

 1
74413 - BOLT, BATTERY CLAMP
74451-30060

KP61

L=210

 1
74451-14010

KP61

L=236

 1
74413 - BOLT, BATTERY CLAMP
74451-30060

KP61

L=210

 1
74451-14010

KP61

L=236

 1
74417 - BRACKET, BATTERY CARRIER
74417-10022

KP61

 1
74481 - CLAMP, BATTERY HOLD DOWN
74481-10100

KP61

 1
Common parts
90179-06097
91656-40818
