KP61L-PGMRCA (1980)
Toyota Starlet
Production
Aug 1980
-
Aug 1982
Engine
4KC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

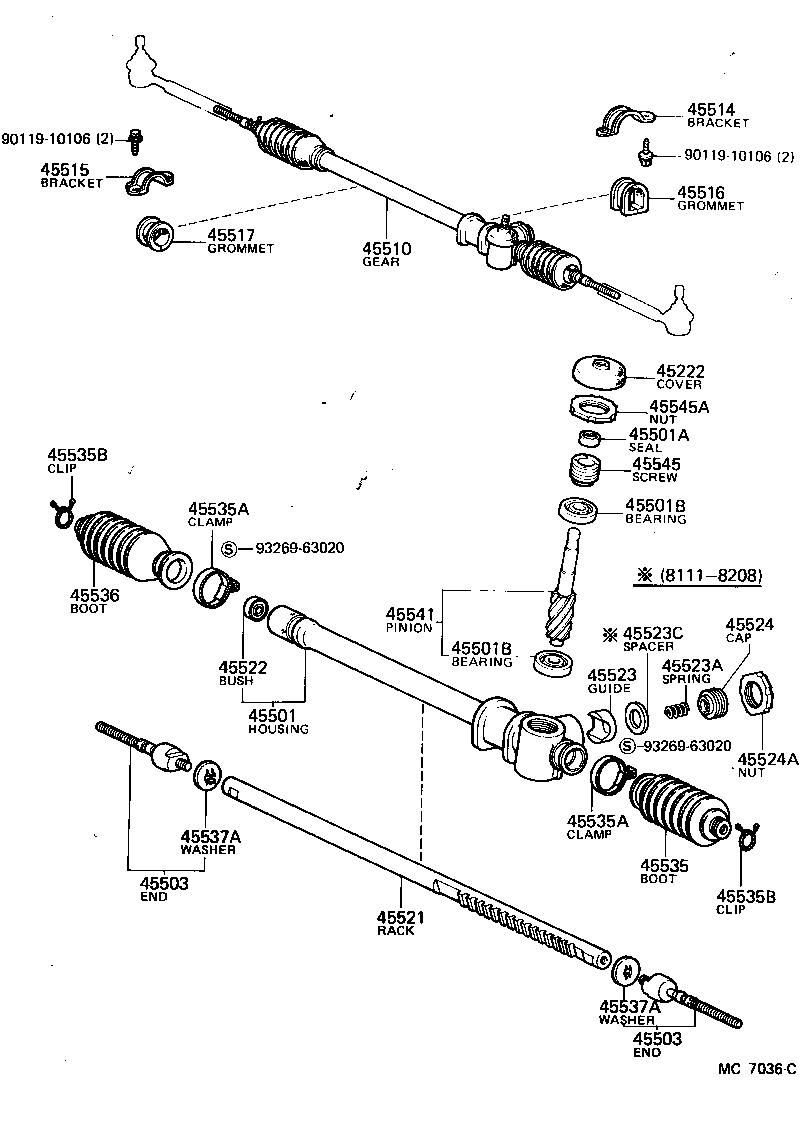

(8008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-10030 |
KP61 |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-10060 |
KP61 |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
KP61 |
1 | ||
| 45501B - BEARING, RADIAL BALL(FOR STEERING RACK HOUSING) | ||||
| 90363-15003 |
KP61 UPR |
1 | ||
| 90363-13001 |
KP61 LWR |
1 | ||
| 45501B - BEARING, RADIAL BALL(FOR STEERING RACK HOUSING) | ||||
| 90363-15003 |
KP61 UPR |
1 | ||
| 90363-13001 |
KP61 LWR |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19015 |
KP61 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19015 |
KP61 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-10020 |
KP61 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-10010 |
KP61 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-10010 |
KP61 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-10020 |
KP61 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-10010 |
KP61 |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-10021 |
KP61 |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-10030 |
KP61 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-10010 |
KP61 |
1 | ||
| 45523-16011 |
KP61 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
KP61 |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
KP61 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
KP61 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36001 |
KP61 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-10021 |
KP61 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
KP61 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
KP61 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
KP61 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
KP61 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-10021 |
KP61 |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
KP61 |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
KP61 |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-10901 |
KP61 |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
KP61 |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
KP61 |
1 | ||
| Common parts | ||||
| 90119-10106 | ||||
| 93269-63020 | ||||

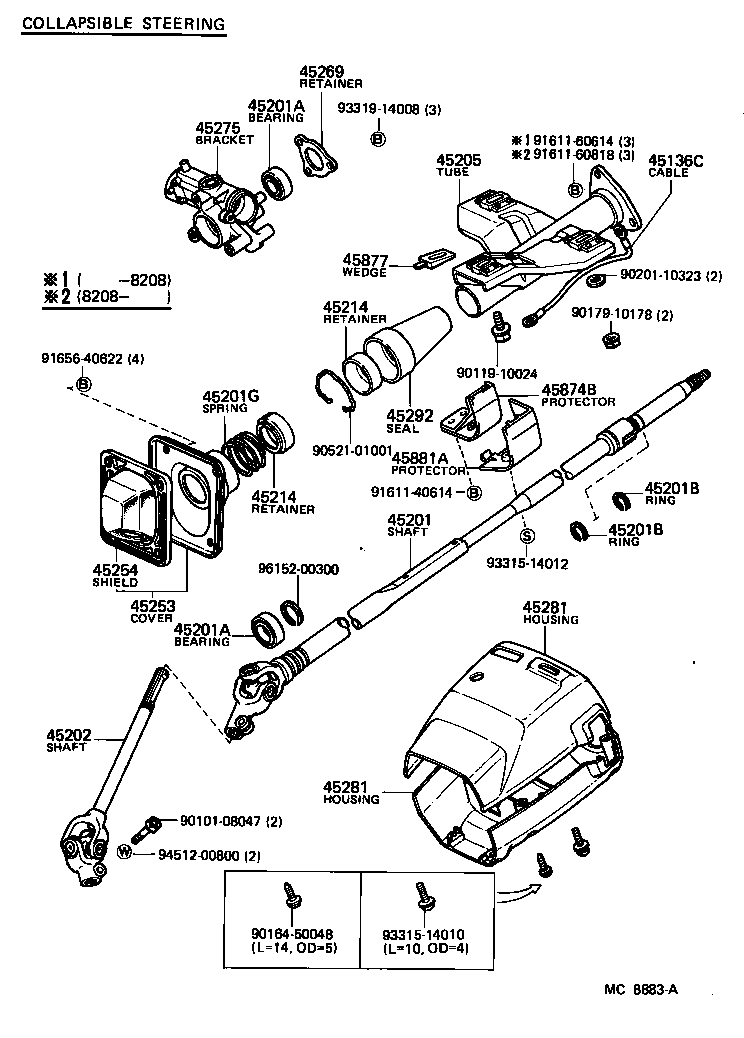

(8008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07129 |
KP61 |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-10020 |
KP61 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30015 |
KP61 LWR |
1 | ||
| 90363-18038 |
KP61 UPR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30015 |
KP61 LWR |
1 | ||
| 90363-18038 |
KP61 UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KP61 T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
KP61 T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KP61 T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
KP61 T=1.20,T=1.2 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-32003 |
KP61 |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-10030 |
KP61 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-10040 |
KP61 |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
KP61 |
2 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
KP61 |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-10020 |
KP61 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-10021 |
KP61 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
KP61 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45275-16010 |
KP61 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1005006 |
KP61 LWR,LIGHT BROWN,BROWN |
1 | ||
| 45286-1601001 |
KP61 UPR,BLACK,BLACK |
1 | ||
| 45287-1005001 |
KP61 LWR,BLACK,BLACK |
1 | ||
| 45286-1601006 |
KP61 UPR,LIGHT BROWN,BROWN |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1005006 |
KP61 LWR,LIGHT BROWN,BROWN |
1 | ||
| 45286-1601001 |
KP61 UPR,BLACK,BLACK |
1 | ||
| 45287-1005001 |
KP61 LWR,BLACK,BLACK |
1 | ||
| 45286-1601006 |
KP61 UPR,LIGHT BROWN,BROWN |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-10010 |
KP61 |
1 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
KP61 |
1 | ||
| Common parts | ||||
| 90101-08047 | ||||
| 90119-10024 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 90521-01001 | ||||
| 91611-40614 | ||||
| 91611-60614 | ||||
| 91611-60818 | ||||
| 91656-40622 | ||||
| 93315-14010 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| 96152-00300 | ||||
