KP61L-PGMRCA (1980)
Toyota Starlet
Production
Aug 1980
-
Aug 1982
Engine
4KC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8208)

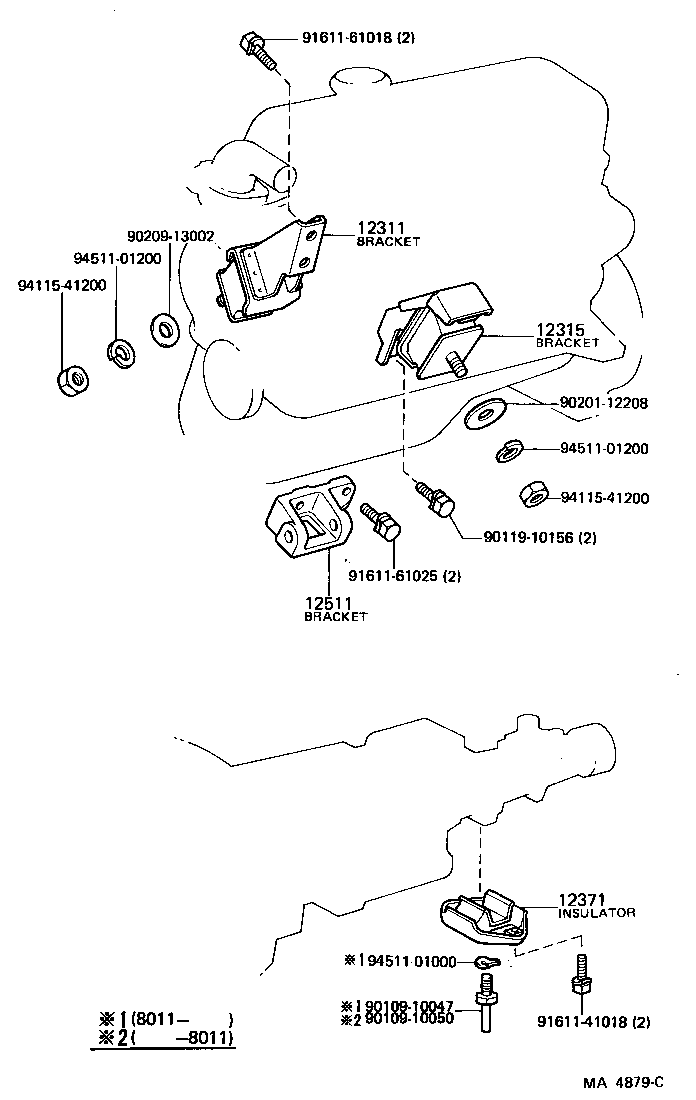

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12301-13060 |
4KC..KP61 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12302-13042 |
4KC..KP61 |
1 | ||
| 12302-13043 |
4KC..KP61 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-13010 |
4K#..KP61 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-24011 |
4K#..KP61 |
1 | ||
| Common parts | ||||
| 90109-10047 | ||||
| 90109-10050 | ||||
| 90119-10156 | ||||
| 90201-12208 | ||||
| 90209-13002 | ||||
| 91611-41018 | ||||
| 91611-61018 | ||||
| 91611-61025 | ||||
| 94115-41200 | ||||
| 94511-01000 | ||||
| 94511-01200 | ||||
