KP61L-PGKREK (1982)

Toyota Starlet

Production Aug 1982 - Dec 1983
Engine 4KE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

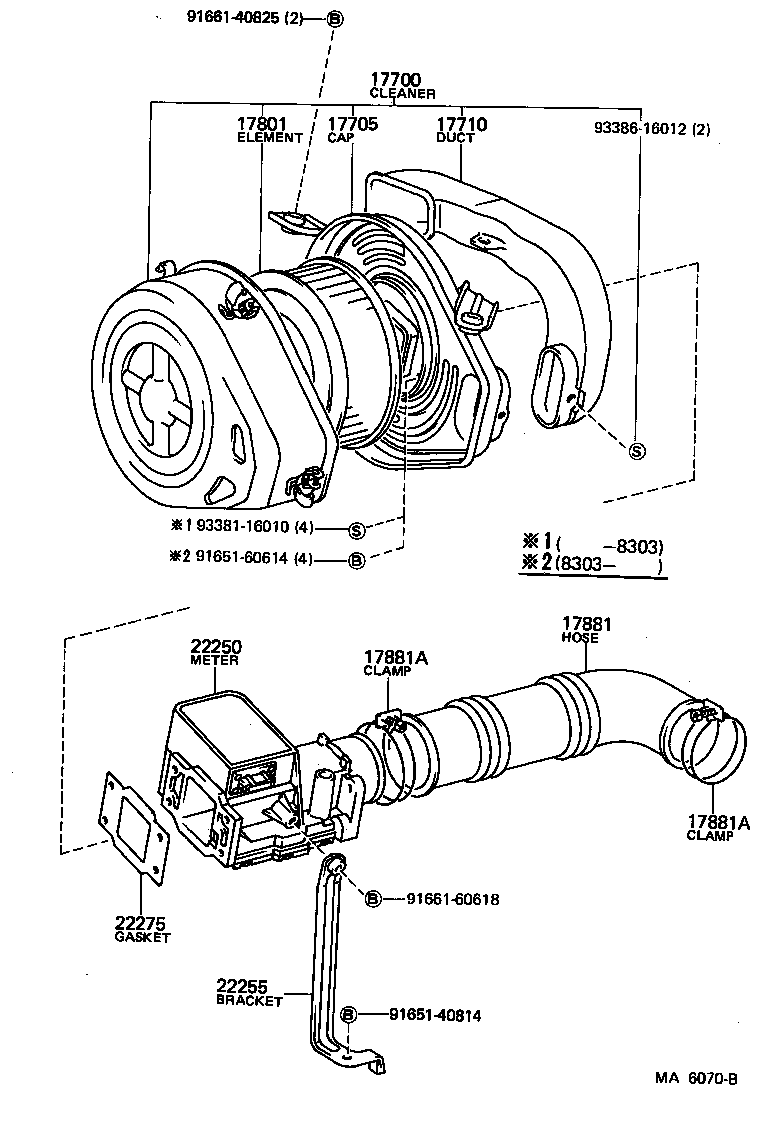

Click highlighted areas on diagram

diagram 17700 17705 17710 17801 17881 17881A 17881A 22250 22255 22275 9165140814 9165160614 9166140825 9166160618 9338116010 9338616012
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-13340

4KE..KP61

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-13070

4KE..KP61

 1
17710 - DUCT SUB-ASSY, AIR CLEANER INLET, NO.1
17751-13010

4KE..KP61

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-24010

4KE..KP61

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13060

4KE..KP61

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10600

4KE..KP61

THROTTLE BODY SIDE

 1
96111-10750

4KE..KP61

AIR FLOW METER SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10600

4KE..KP61

THROTTLE BODY SIDE

 1
96111-10750

4KE..KP61

AIR FLOW METER SIDE

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-13020

4KE..KP61

 1
22255 - BRACKET, AIR FLOW METER
22209-13010

4KE..KP61

 1
22275 - GASKET, AIR FLOW METER
22275-26021

4KE..KP61

 1
Common parts
91651-40814
91651-60614
91661-40825
91661-60618
93381-16010
93386-16012
