KP61L-PGKREA (1982)

Toyota Starlet

Production Aug 1982 - Dec 1983
Engine 4KE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

Click highlighted areas on diagram

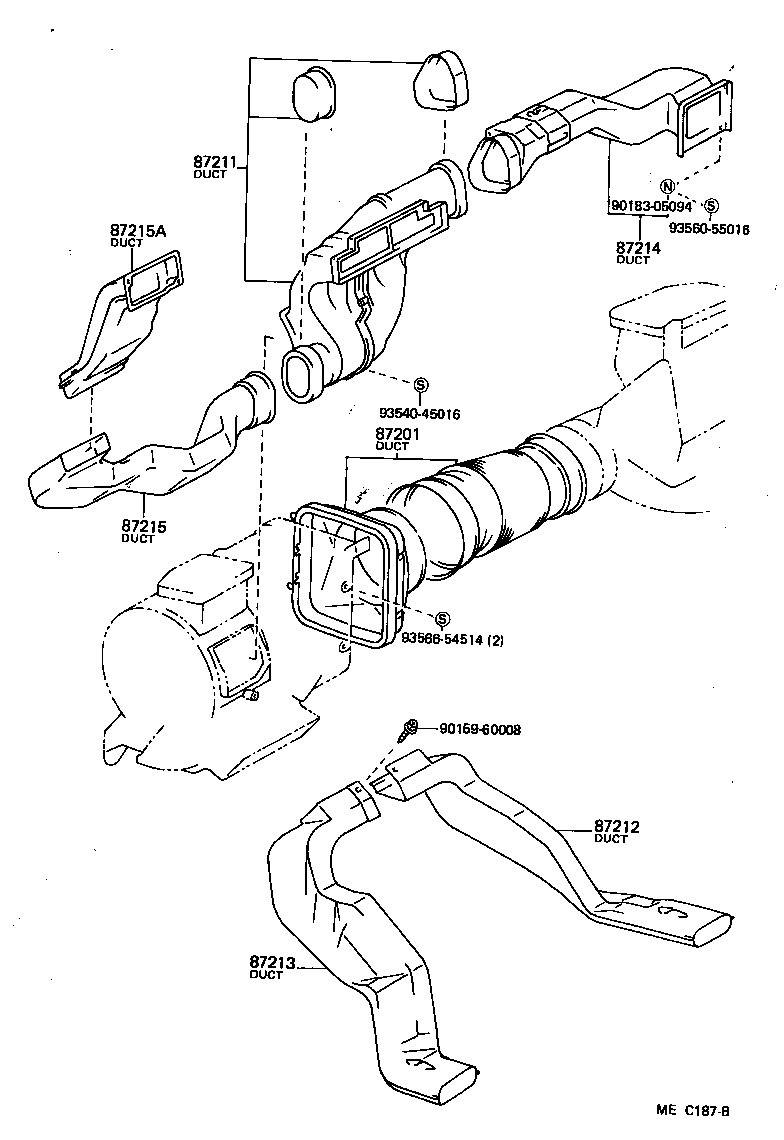

diagram 87201 87211 87212 87213 87214 87215 87215A 9015960008 9018305094 9354045016 9356055016 9356654514
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-10080

KP61

 1
87201-10020

KP61

 1
87211 - DUCT, AIR, NO.1
55086-10040

KP61..USA

 1
87201-10040

KP61

 1
87212 - DUCT, AIR, REAR NO.1
87212-10080

KP61

 1
87213 - DUCT, AIR, REAR NO.2
87213-10070

KP61

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55088-10020

KP61..4F..USA

 1
55088-10010

KP61..USA

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-10010

KP61..USA

 1
55845-10010

KP61..4F..USA

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55084-10010

KP61..USA

 1
55846-10020

KP61..4F..USA

 1
Common parts
90159-60008
90183-05094
93540-45016
93560-55016
93566-54514

(8208- )

Click highlighted areas on diagram

diagram 55906A 55907A 55908A 55909A 55910 5593324010 55937 55937 8302 8401 9048013002 9356755016
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-10120

KP61

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-10070

KP61

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-10050

KP61

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-10050

KP61

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-10151

KP61

 1
55910-10200

KP61

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

KP61

 3
55905-12060

KP61

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

KP61

 3
55905-12060

KP61

 4
Common parts
55933-24010
90480-13002
93567-55016
Linked diagrams
8302
8401
