KP61L-PGKREA (1982)

Toyota Starlet

Production Aug 1982 - Dec 1983
Engine 4KE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

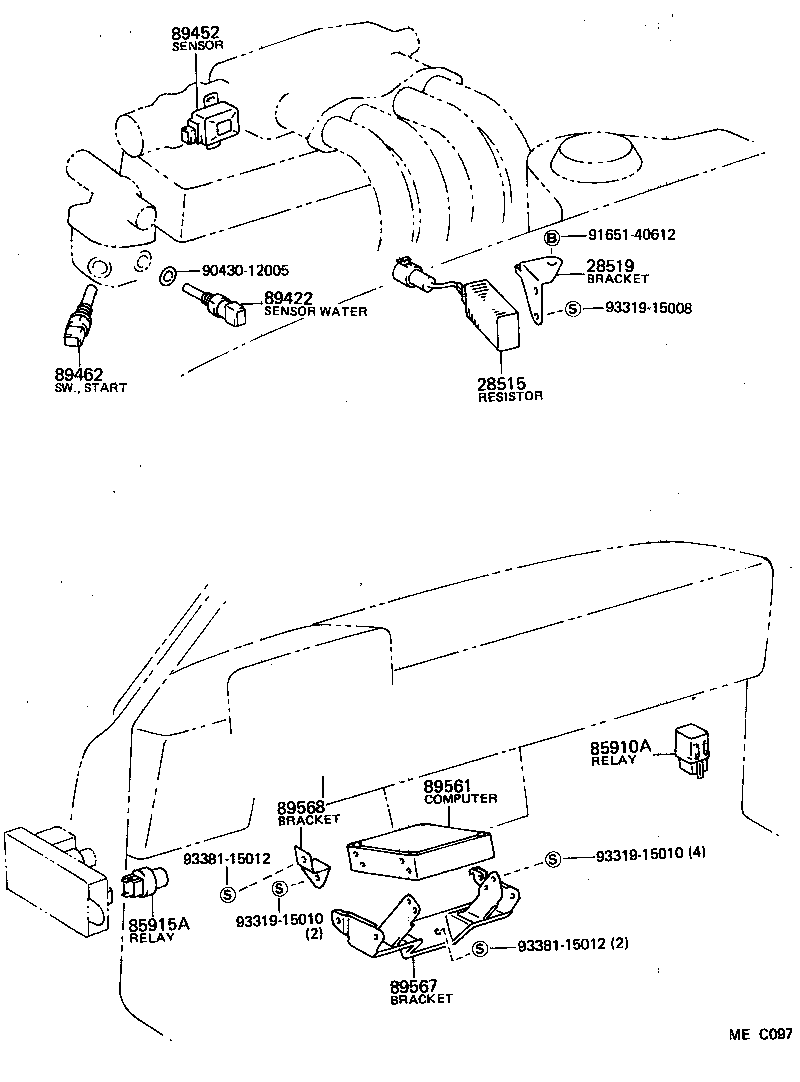

Click highlighted areas on diagram

diagram 28515 28519 85910A 85915A 89422 89452 89462 89561 89567 89568 9043012005 9165140612 9331915008 9331915010 9331915010 9338115012 9338115012
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-52010

4KE..KP61

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-13010

4KE..KP61

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

KP61

 1
85915A - RELAY, MAIN
90987-02004

KP61

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

KP61

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-12010

KP61

 1
89462 - SWITCH, START INJECTOR TIME
89462-30011

KP61

 1
89561 - COMPUTER, FUEL INJECTION
89561-10020

KP61..4F

 1
89561-10021

KP61..4F

 1
89567 - BRACKET, FUEL INJECTION COMPUTER
89567-10020

KP61

 1
89568 - BRACKET, FUEL INJECTION COMPUTER
89568-10020

KP61

 1
Common parts
90430-12005
91651-40612
93319-15008
93319-15010
93381-15012
