KP61L-PGKREA (1982)

Toyota Starlet

Production Aug 1982 - Dec 1983
Engine 4KE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

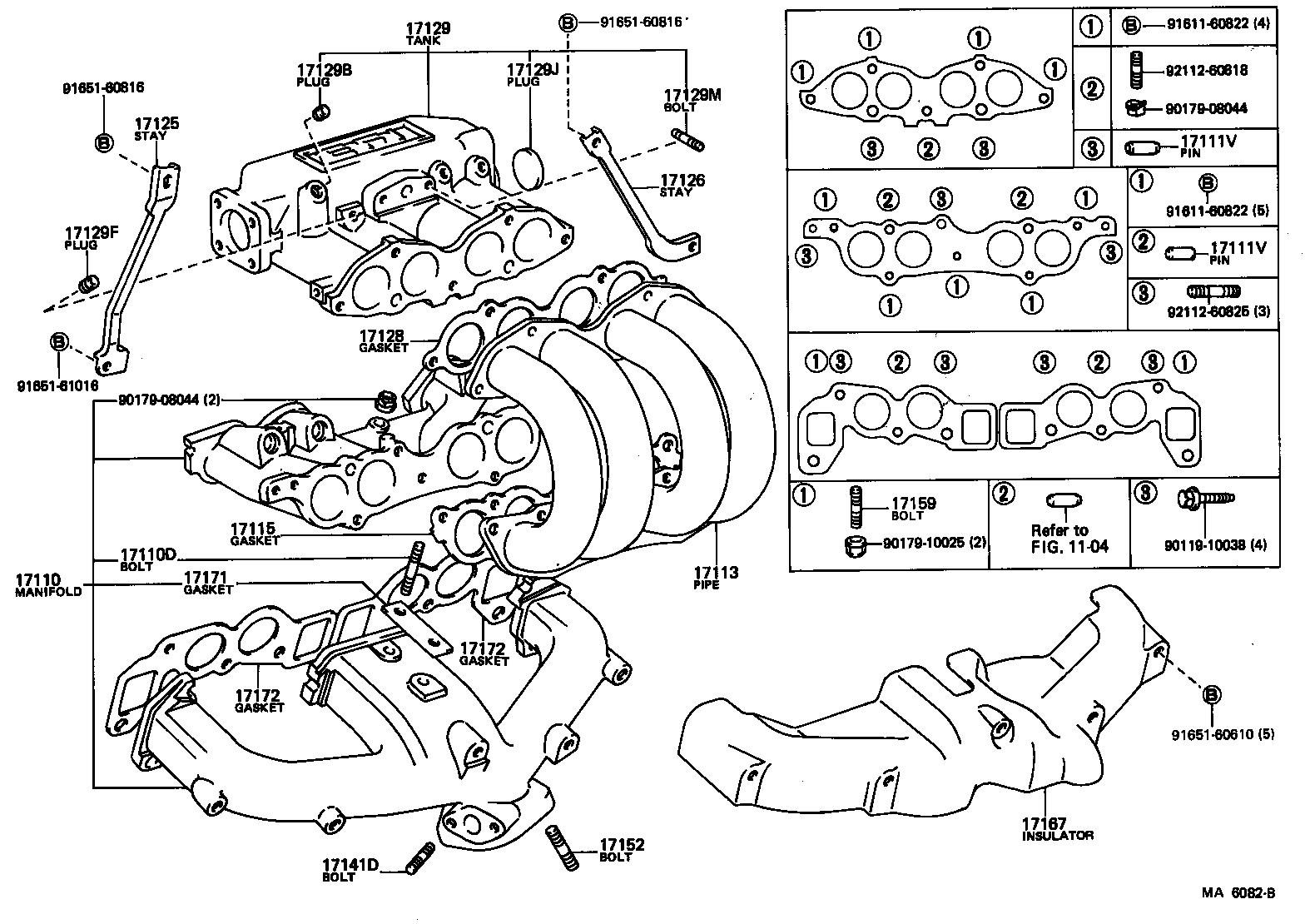

Click highlighted areas on diagram

diagram 1104 17110 17110D 17111V 17111V 17113 17115 17125 17126 17128 17129 17129B 17129F 17129J 17129M 17141D 17152 17159 17167 17171 17172 17172 9011910038 9017908044 9017908044 9017910025 9161160822 9161160822 9165160610 9165160816 9165160816 9165161016 9211260818 9211260825
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-13120

4KE..KP61

 1
17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
92122-60822

4KE..KP61

 2
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90250-08120

4KE..KP61

 4
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90250-08120

4KE..KP61

 4
17113 - PIPE, INTAKE
17103-13010

4KE..KP61

 1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
17115-13010

4KE..KP61

 1
17125 - STAY, SURGE TANK, NO.1
17125-13010

4KE..KP61

 1
17126 - STAY, SURGE TANK, NO.2
17126-13010

4KE..KP61

 1
17128 - GASKET, SURGE TANK
17128-13010

4KE..KP61

 1
17129 - TANK, INTAKE AIR SURGE
17109-13010

4KE..KP61

 1
17129B - PLUG
90344-52013

4KE..KP61

 1
17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE
90345-51025

4KE..KP61

 1
17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
96411-43500

4KE..KP61

OD=35

 1
17129M - BOLT, STUD(FOR COLD START INJECTOR)
92122-40612

4KE..KP61

 2
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

4KE..KP61

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

4K#..KP61

L=41,S=14&21

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-41028

4K#..KP61

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-13050

4KE..KP61

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-13030

4KE..KP61

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-13021

4KE..KP61

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-13021

4KE..KP61

 2
Common parts
90119-10038
90179-08044
90179-10025
91611-60822
91651-60610
91651-60816
91651-61016
92112-60818
92112-60825
Linked diagrams
1104
