SXV20L-GKPNKA (2000)
Toyota Solara
Production
Feb 2000
-
Jul 2001
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

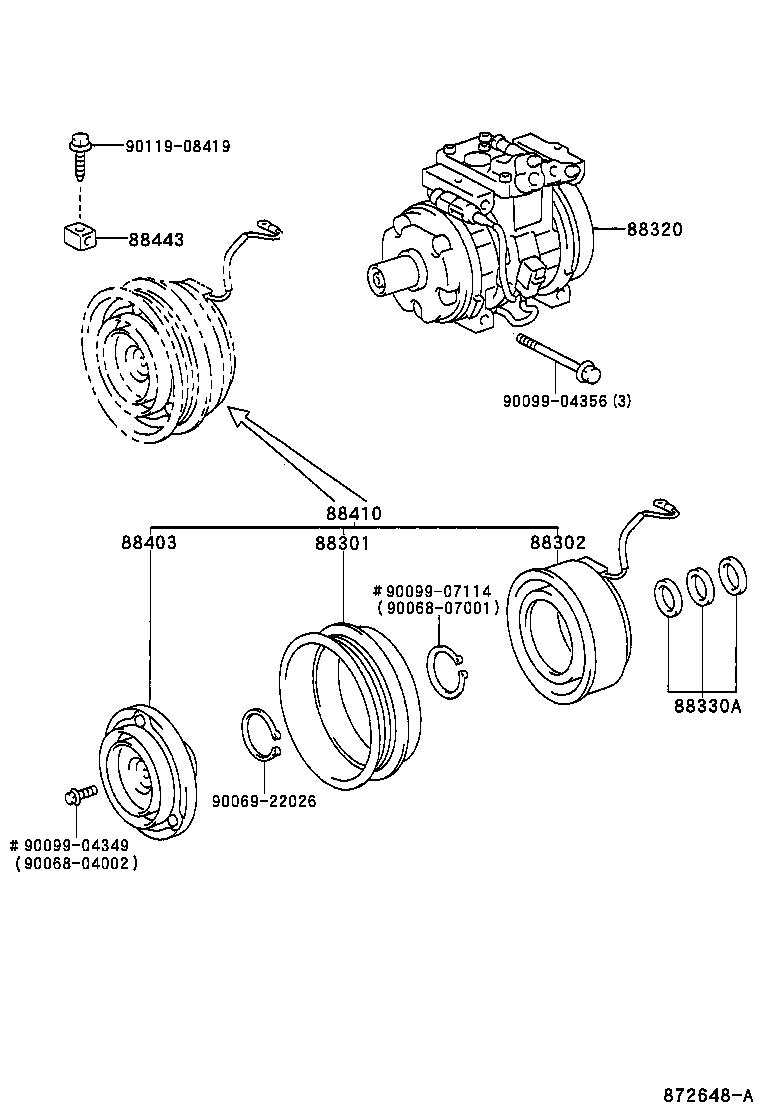

ILLUST NO. 1 OF 2(9806-0107)SXV20
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-06040 |
SXV20 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-06030 |
SXV20 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-06070 |
SXV20 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ACV20,MCV20,SXV20 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-06050 |
SXV20 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-06070 |
SXV20 |
1 | ||
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-03010 |
SXV20 |
1 | ||
| Common parts | ||||
| 90068-04002 | ||||
| 90068-07001 | ||||
| 90069-22026 | ||||
| 90099-04349 | ||||
| 90099-04356 | ||||
| 90099-07114 | ||||
| 90119-08419 | ||||
