SXV20L-GKPNKA (2000)
Toyota Solara
Production
Feb 2000
-
Jul 2001
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9806-0107)SXV20..ATM

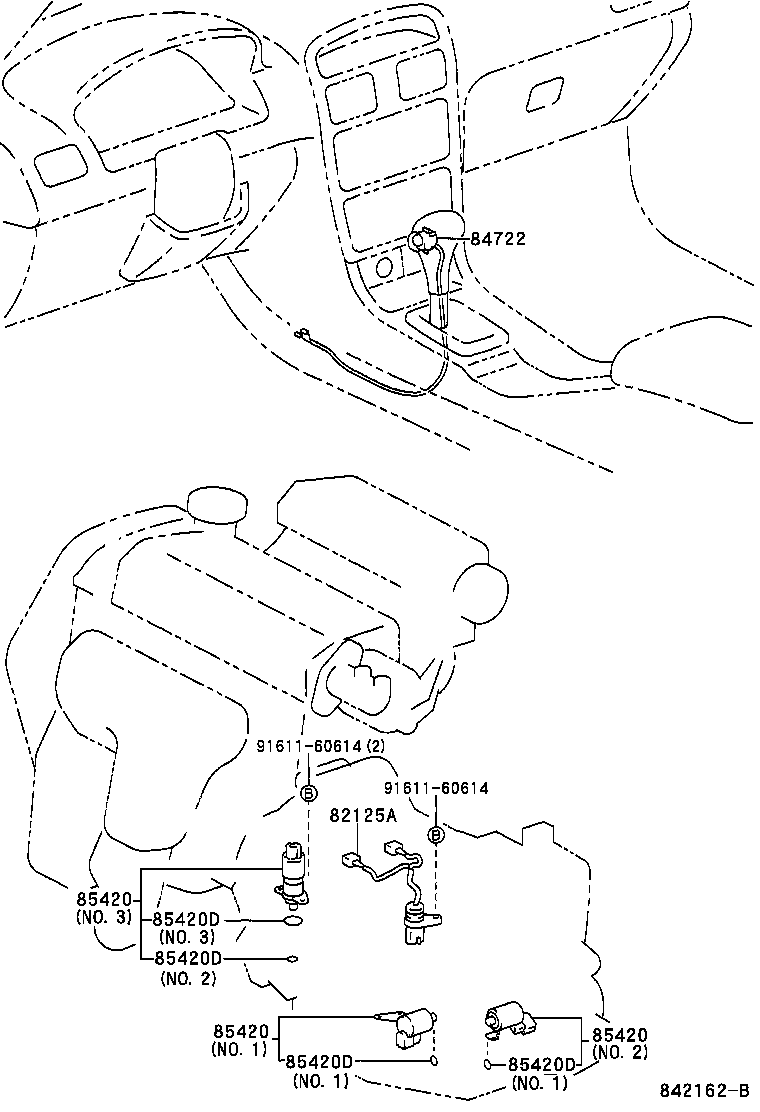

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-20150 |
SXV20..ATM |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-06030C0 |
MCV20,SXV20..ATM BLACK,TRIM0#,1# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32021 |
SXV20..ATM NO.1 |
1 | ||
| 85420-20110 |
SXV20..ATM NO.3 |
1 | ||
| 85420-32140 |
SXV20..ATM NO.2 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32021 |
SXV20..ATM NO.1 |
1 | ||
| 85420-20110 |
SXV20..ATM NO.3 |
1 | ||
| 85420-32140 |
SXV20..ATM NO.2 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32021 |
SXV20..ATM NO.1 |
1 | ||
| 85420-20110 |
SXV20..ATM NO.3 |
1 | ||
| 85420-32140 |
SXV20..ATM NO.2 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06005 |
SXV20..ATM NO.2,ID=6.6 |
1 | ||
| 90301-06004 |
SXV20..ATM NO.1 |
2 | ||
| 96721-19017 |
SXV20..ATM NO.3,ID=16.8 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06005 |
SXV20..ATM NO.2,ID=6.6 |
1 | ||
| 90301-06004 |
SXV20..ATM NO.1 |
2 | ||
| 96721-19017 |
SXV20..ATM NO.3,ID=16.8 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06005 |
SXV20..ATM NO.2,ID=6.6 |
1 | ||
| 90301-06004 |
SXV20..ATM NO.1 |
2 | ||
| 96721-19017 |
SXV20..ATM NO.3,ID=16.8 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06005 |
SXV20..ATM NO.2,ID=6.6 |
1 | ||
| 90301-06004 |
SXV20..ATM NO.1 |
2 | ||
| 96721-19017 |
SXV20..ATM NO.3,ID=16.8 |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
