SXV20L-GKPNKA (2000)

Toyota Solara

Production Feb 2000 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9806-0107)SXV20

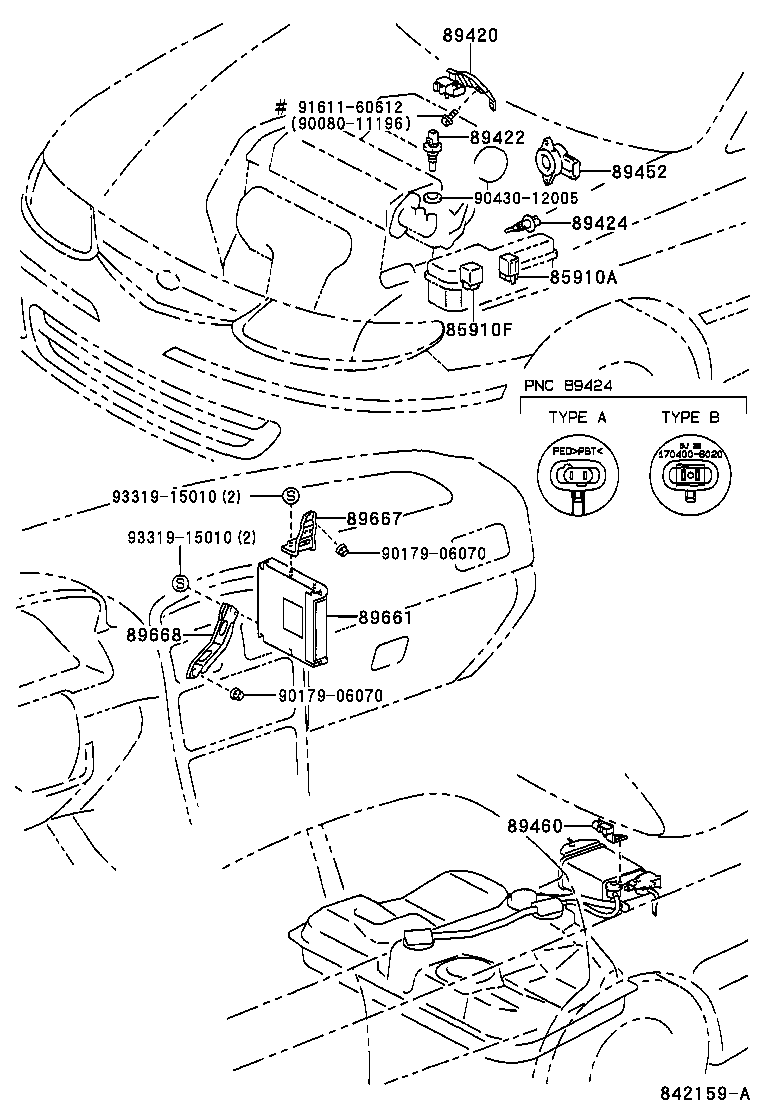

Click highlighted areas on diagram

diagram 85910A 85910F 89420 89422 89424 89452 89460 89661 89667 89668 9008011196 9017906070 9017906070 9043012005 9161160612 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90084-98031

SXV20..CVT;MCV20..MTM..USA;MCV20,SXV20..ATM..CND

 1
90084-98031

MCV20,SXV20

 1
85910F - RELAY, COMPUTER (FOR EFI)
90084-98031

SXV20..CVT;MCV20..MTM..USA;MCV20,SXV20..ATM..CND

 1
90084-98031

MCV20,SXV20

 1
89420 - SENSOR ASSY, VACUUM
89420-06040

SXV20..ATM

 1
89420-06040

SXV20..CND;SXV20..CVT;SXV20..MTM

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

SXV20

 1
89422-35010

SXV20..CVT;MCV20..MTM..USA;MCV20,SXV20..ATM..CND

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-06010

SXV20..CND;SXV20..CVT

TYPE A:REFER TO ILLUSTRATION

 1
89424-12010

SXV20..CND;SXV20..CVT

TYPE B:REFER TO ILLUSTRATION

 1
89424-06010

SXV20

TYPE A:REFER TO ILLUSTRATION

 1
89424-12010

SXV20

TYPE B:REFER TO ILLUSTRATION

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-33030

MCV20,SXV20

AISAN

 1
89452-06020

MCV20,SXV20

CTS

 1
89452-33030

SXV20

AISAN

 1
89452-33030

SXV20..CVT;MCV20..MTM..USA;MCV20,SXV20..ATM..CND

AISAN

 1
89452-06020

SXV20..CVT;MCV20..MTM..USA;MCV20,SXV20..ATM..CND

CTS

 1
89452-33030

MCV20;SXV20..CND;SXV20..CVT

AISAN

 1
89460 - SENSOR ASSY, VAPOR PRESSURE
89460-06040

MCV20,SXV20

PART NUMBER LABEL=89460-06040

 1
89460-06050

MCV20,SXV20

PART NUMBER LABEL=89460-06050

 1
89460-07030

SXV20..CVT;MCV20..MTM..USA;MCV20,SXV20..ATM..CND

PART NUMBER LABEL=89460-07030

 1
89661 - COMPUTER, ENGINE CONTROL
89661-06690

SXV20..ATM..USA

CALIFORNIA SPEC

 1
89661-06670

SXV20..ATM

 1
89661-06710

SXV20..ATM

W(ENGINE IMMOBILIZER SYSTEM)

 1
89661-06730

SXV20..ATM..USA

CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)

 1
89666-06041

SXV20..CVT

 1
89666-06082

SXV20..CVT

W(ENGINE IMMOBILIZER SYSTEM)

 1
89666-06081

SXV20..CVT

W(ENGINE IMMOBILIZER SYSTEM)

 1
89666-06042

SXV20..CVT

 1
89666-06160

SXV20..CVT

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-06050

SXV20..CVT;SXV20..MTM;MCV20,SXV20..ATM..CND

 1
89667-06050

SXV20..CVT;SXV20..MTM;MCV20,SXV20..ATM..CND

DENSO

 1
89667-06050

MCV20,SXV20

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-06050

SXV20..CVT;SXV20..MTM;MCV20,SXV20..ATM..CND

 1
89668-06050

MCV20,SXV20

 1
Common parts
90080-11196
90179-06070
90430-12005
91611-60612
93319-15010
