SXV20L-GKPNKA (2000)
Toyota Solara

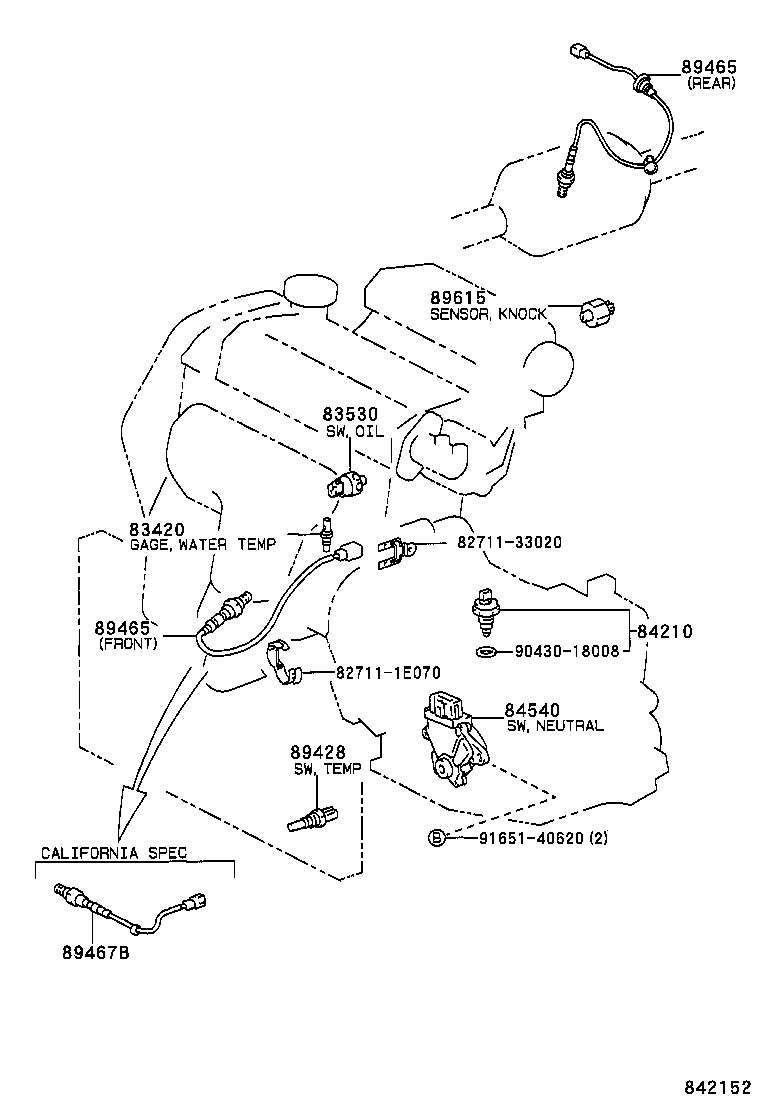

ILLUST NO. 1 OF 6(9806-0107)SXV20
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-AA010 |
SXV20;MCV20..ATM (L) |
1 | ||
| 83420-20040 |
SXV20;MCV20..ATM (J) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-AA011 |
ACV20,MCV20,SXV20 FASCO |
1 | ||
| 83530-28020 |
ACV20,MCV20,SXV20 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-20220 |
SXV20..ATM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
SXV20 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-06020 |
MCV20,SXV20 REAR |
1 | ||
| 89465-06040 |
SXV20 REAR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-06020 |
MCV20,SXV20 REAR |
1 | ||
| 89465-06040 |
SXV20 REAR |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-33010 |
SXV20..USA |
1 | ||
| 89467-33020 |
SXV20 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20030 |
SXV20 TOYOTA |
1 | ||
| 89615-33020 |
SXV20 DENSO |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 82711-33020 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
ILLUST NO. 3 OF 6(9806-0107)
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-06010 |
ACV20,MCV20,SXV20 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-06020 |
ACV20,MCV20,SXV20 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-AC020 |
ACV20,MCV20,SXV20 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90011-01001 |
ACV20,MCV20,SXV20 14V 0.91W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-06030 |
ACV20,MCV20,SXV20 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-06040 |
ACV20,MCV20,SXV20 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-06020 |
ACV20,MCV20,SXV20 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01002 |
ACV20,MCV20,SXV20 14V 1.4W |
1 | ||
| 90010-01003 |
ACV20,MCV20,SXV20 14V 0.84W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01002 |
ACV20,MCV20,SXV20 14V 1.4W |
1 | ||
| 90010-01003 |
ACV20,MCV20,SXV20 14V 0.84W |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-AC010 |
ACV20,MCV20,SXV20 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33090 |
MCV20,SXV20..CVT |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-20030 |
MCV20,SXV20..CVT |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-06020 |
ACV20,MCV20,SXV20 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-AA010 |
ACV20,MCV20,SXV20 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-06020 |
ACV20,MCV20,SXV20 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-02010 |
ACV20,MCV20,SXV20 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-06011 |
ACV20,MCV20,SXV20 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-06020 |
ACV20,MCV20,SXV20 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-06010 |
ACV20,MCV20,SXV20 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-33020 |
MCV20,SXV20..CVT |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-06020 |
ACV20,MCV20,SXV20 |
1 | ||
| Common parts | ||||
| 90170-09002 | ||||
| 93540-13012 | ||||
| 93540-44012 | ||||
| Linked diagrams | ||||
| 8715 | ||||
