SXV20L-GKPNKA (2000)

Toyota Solara

Production Feb 2000 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(9806-0107)SXV20

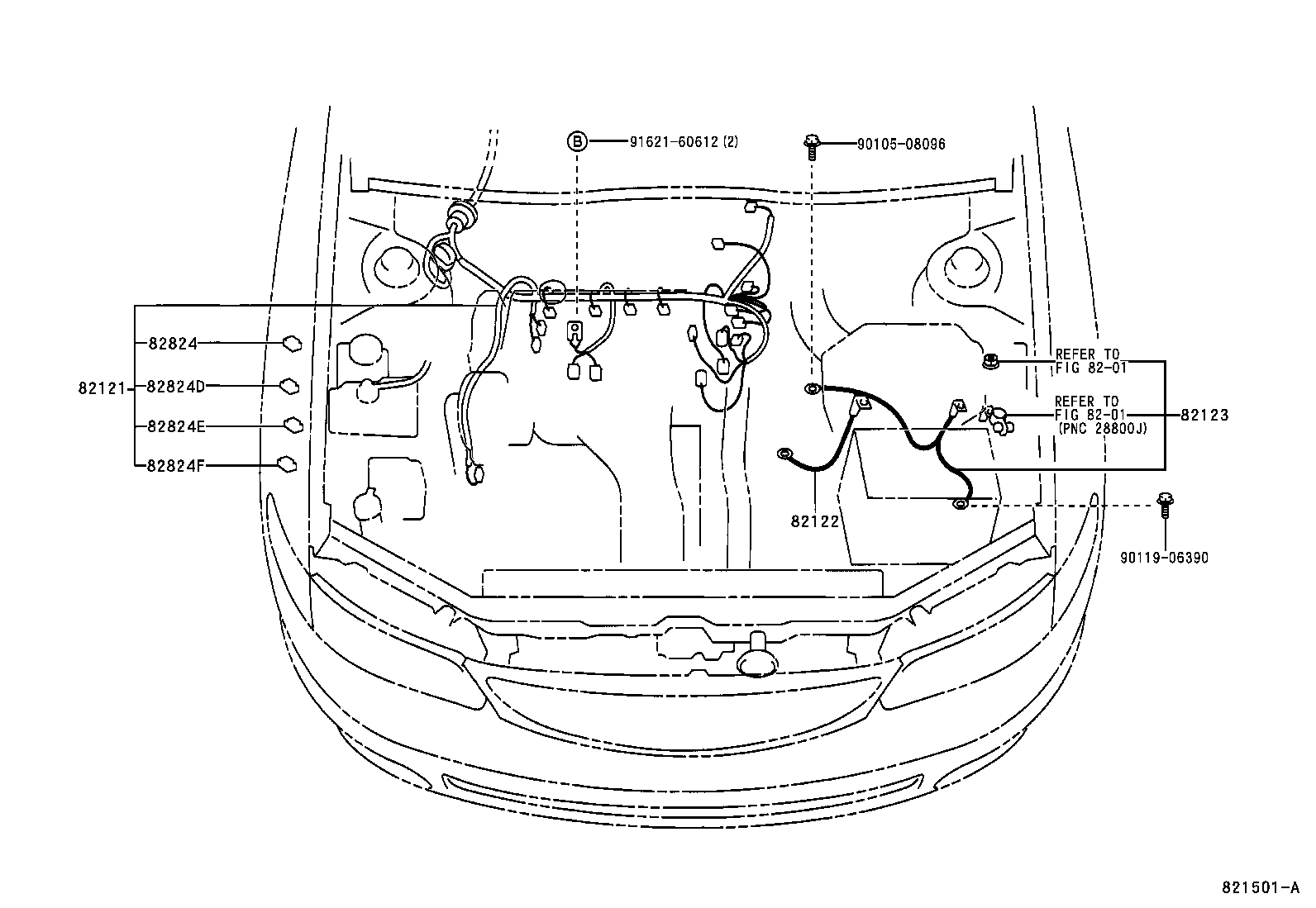

Click highlighted areas on diagram

ENGINE

diagram 8201 8201 82121 82122 82123 82824 82824D 82824E 82824F 9010508096 9011906390 9162160612
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-06390

SXV20..ATM

 1
82121-06410

SXV20..ATM..USA

CALIFORNIA SPEC

 1
82121-06430

SXV20..ATM

W(ENGINE IMMOBILIZER SYSTEM)

 1
82121-06440

SXV20..ATM..USA

CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)

 1
82121-06500

SXV20..CND;SXV20..CVT

 1
82121-06500

SXV20..CVT

 1
82122 - WIRE, ENGINE, NO.2
82122-07010

MCV20,SXV20

 1
82123 - WIRE, ENGINE, NO.3
82123-06020

ACV20..MTM;MCV20,SXV20

 1
82824 - CONNECTOR, WIRING HARNESS
82824-24010

SXV20..CVT;MCV20,SXV20..CND;MCV20,SXV20..MTM..USA

 1
82824-24010

MCV20,SXV20

 1
82824D - CONNECTOR, WIRING HARNESS
82824-22060

SXV20..CND;SXV20..CVT;SXV20..MTM

 1
82824-22060

SXV20

 1
82824-22060

SXV20

 1
82824E - CONNECTOR, WIRING HARNESS
82824-22070

SXV20..CND;SXV20..CVT;SXV20..MTM

 2
82824-22070

SXV20

 2
82824-22070

SXV20

 2
82824F - CONNECTOR, WIRING HARNESS
82824-22090

SXV20..CND;SXV20..CVT;SXV20..MTM

 1
82824-22090

SXV20

 1
82824-22090

SXV20

 1
Common parts
90105-08096
90119-06390
91621-60612
Linked diagrams
8201

ILLUST NO. 7 OF 9(9806-0107)SXV20

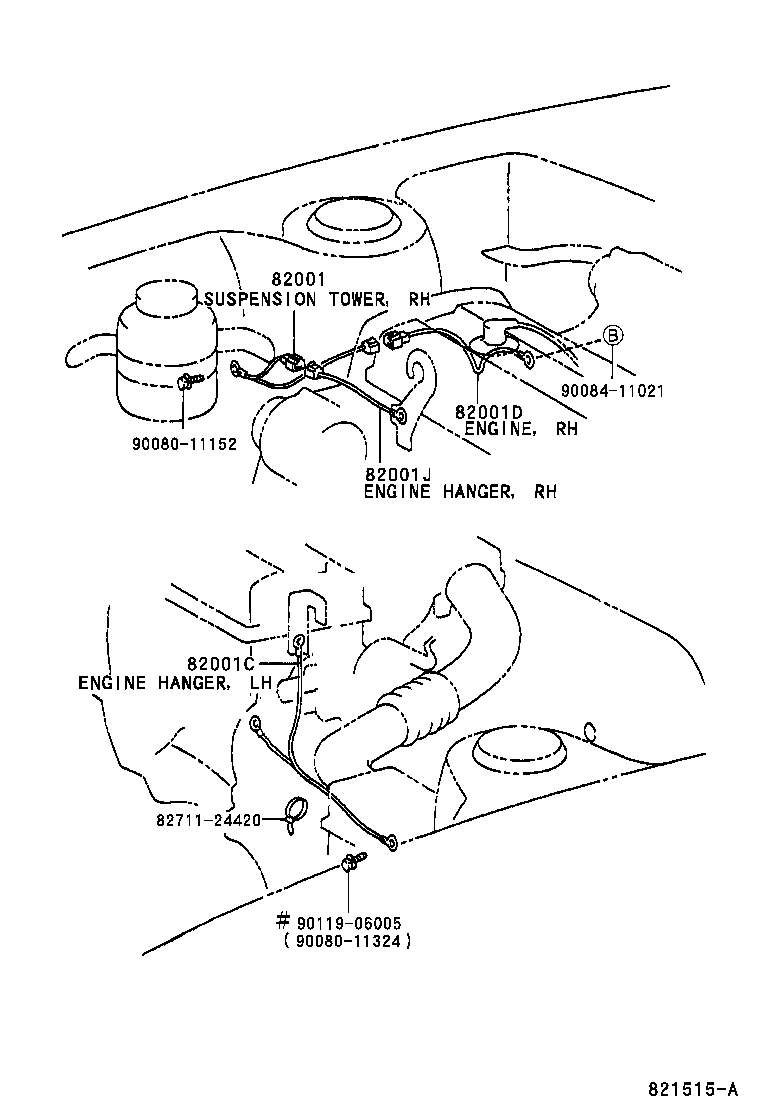

Click highlighted areas on diagram

CABLE BOND

diagram 82001 82001C 82001D 82001J 8271124420 9008011152 9008011324 9008411021 9011906005
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90084-98003

SXV20

 1
82001C - CABLE, BOND, NO.2
90084-98055

ACV20,SXV20

 1
82001D - CABLE, BOND, NO.3
90084-98020

SXV20

 1
82001J - CABLE, BOND, NO.5
90084-98019

SXV20

 1
Common parts
82711-24420
90080-11152
90080-11324
90084-11021
90119-06005
