SXV20L-GKPNKA (2000)

Toyota Solara

Production Feb 2000 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )CVT

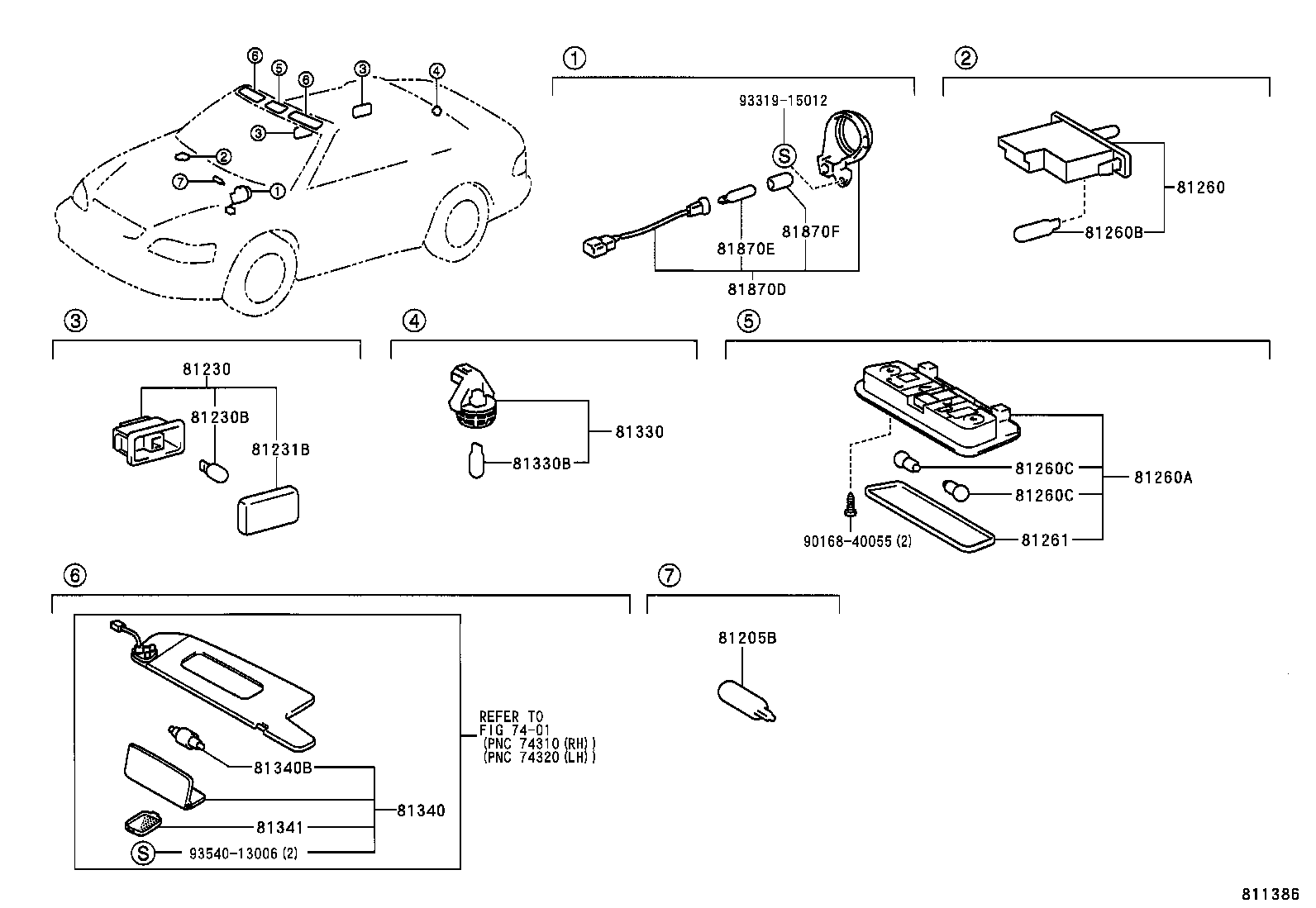

Click highlighted areas on diagram

diagram 7401 81205B 81230 81230B 81231B 81260 81260A 81260B 81260C 81260C 81261 81330 81330B 81340 81340B 81341 81870D 81870E 81870F 9016840055 9331915012 9354013006
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014

ACV20,MCV20,SXV20

14V 1.4W

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33030

ACV20,MCV20,SXV20

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

ACV20,MCV20,SXV20

12V 1.2W W/O SOCKET

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-02010

ACV20,MCV20,SXV20

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

ACV20,MCV20,SXV20

12V 3.8W

 1
81340 - LAMP ASSY, VANITY
81350-AC030A2

ACV20,MCV20,SXV20

IVORY,TRIM0#

 2
81340B - BULB (FOR VANITY LAMP)
90084-98013

ACV20,MCV20,SXV20

 2
81341 - LENS, VANITY LAMP
81351-AC010

ACV20,MCV20,SXV20

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-33030

MCV20,SXV20

 1
81870-33050

MCV20,SXV20

W(ENGINE IMMOBILIZER SYSTEM)

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

SXV20;MCV20..ATM;MCV20..MTM..USA

14V 1.4W

 1
81870F - CAP, KEY CYLINDER LAMP BULB
84998-10070

SXV20;MCV20..ATM;MCV20..MTM..USA

 1
Common parts
90168-40055
93319-15012
93540-13006
Linked diagrams
7401
