SXV20L-GKPNKA (2000)
Toyota Solara
Production
Feb 2000
-
Jul 2001
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

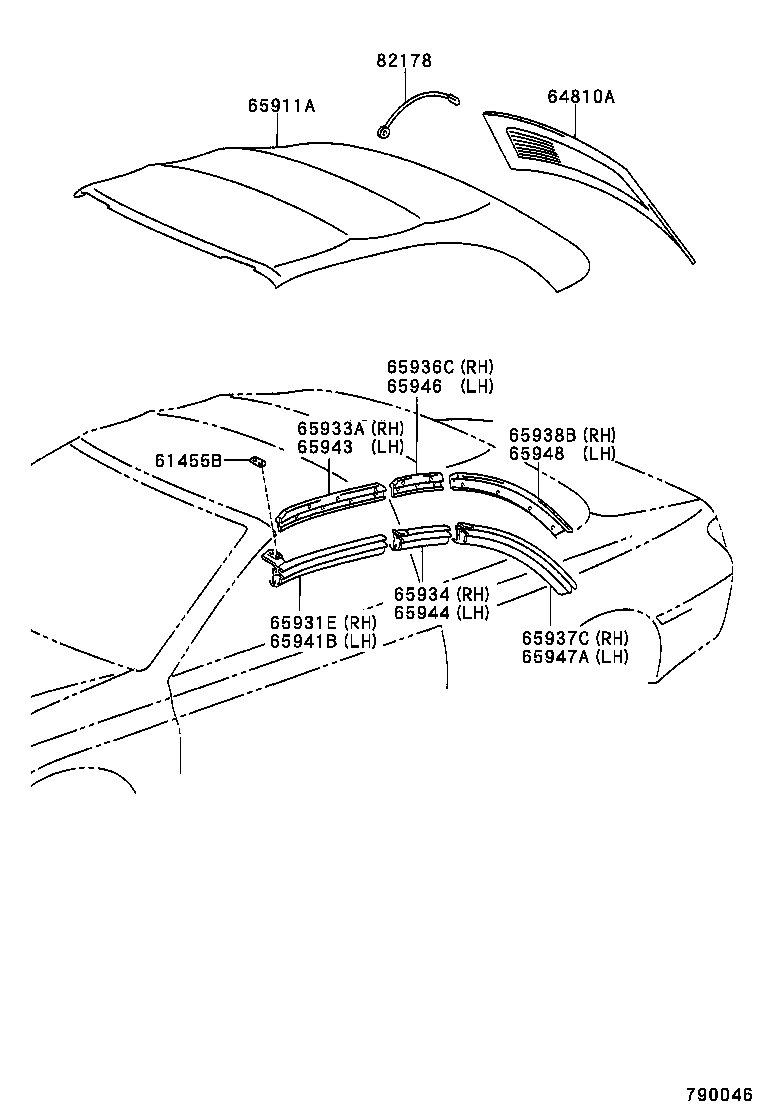

ILLUST NO. 1 OF 4(0002- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64810A - WINDOW ASSY, CONVERTIBLE ROOF TARPAULIN BACK | ||||
| 64810-AA010E0 |
MCV20,SXV20..CVT CAMEL,TRIM0#&051 ,209 ,3N5 |
1 | ||
| 64810-AA010C0 |
MCV20,SXV20..CVT BLACK,TRIM1#&051 ,1C4 ,209 ,3N5 ,4Q5 |
1 | ||
| 64810-AA011E0 |
MCV20,SXV20..CVT CAMEL,TRIM0#&051 ,209 ,3N5 |
1 | ||
| 64810-AA011C0 |
MCV20,SXV20..CVT BLACK,TRIM1#&051 ,1C4 ,209 ,3N5 ,4Q5 |
1 | ||
| 65911A - COVER, TARPAULIN | ||||
| 65911-AA010E0 |
MCV20,SXV20..CVT CAMEL,TRIM0#&051 ,209 ,3N5 |
1 | ||
| 65911-AA010C0 |
MCV20,SXV20..CVT BLACK,TRIM1#&051 ,1C4 ,209 ,3N5 ,4Q5 |
1 | ||

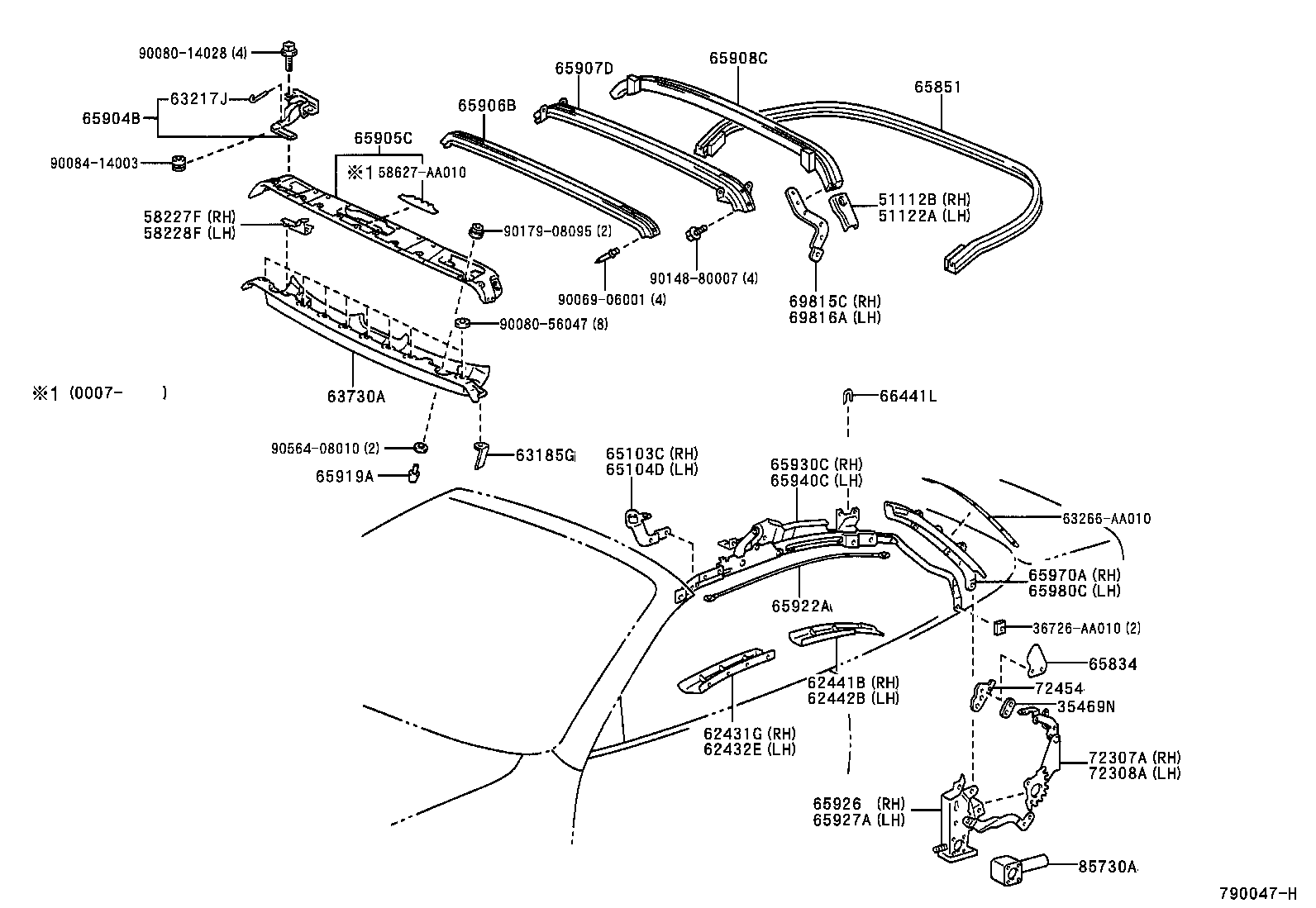

ILLUST NO. 2 OF 4(0002- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65905C - BOW SUB-ASSY, TARPAULIN, NO.1 | ||||
| 65905-AA010 |
MCV20,SXV20..CVT |
1 | ||
| 66441L - SHIM, MOUNTING, NO.1 | ||||
| 66441-AA010 |
MCV20,SXV20..CVT T=0.5 |
2 | ||
| 66442-AA010 |
MCV20,SXV20..CVT T=1.0 |
18 | ||
| 66441-AA011 |
MCV20,SXV20..CVT T=3.0 |
18 | ||
| 66442-AA010 |
MCV20,SXV20..CVT T=1.0 |
78 | ||
| Common parts | ||||
| 36726-AA010 | ||||
| 58627-AA010 | ||||
| 63266-AA010 | ||||
| 90069-06001 | ||||
| 90080-14028 | ||||
| 90080-56047 | ||||
| 90084-14003 | ||||
| 90148-80007 | ||||
| 90179-08095 | ||||
| 90564-08010 | ||||

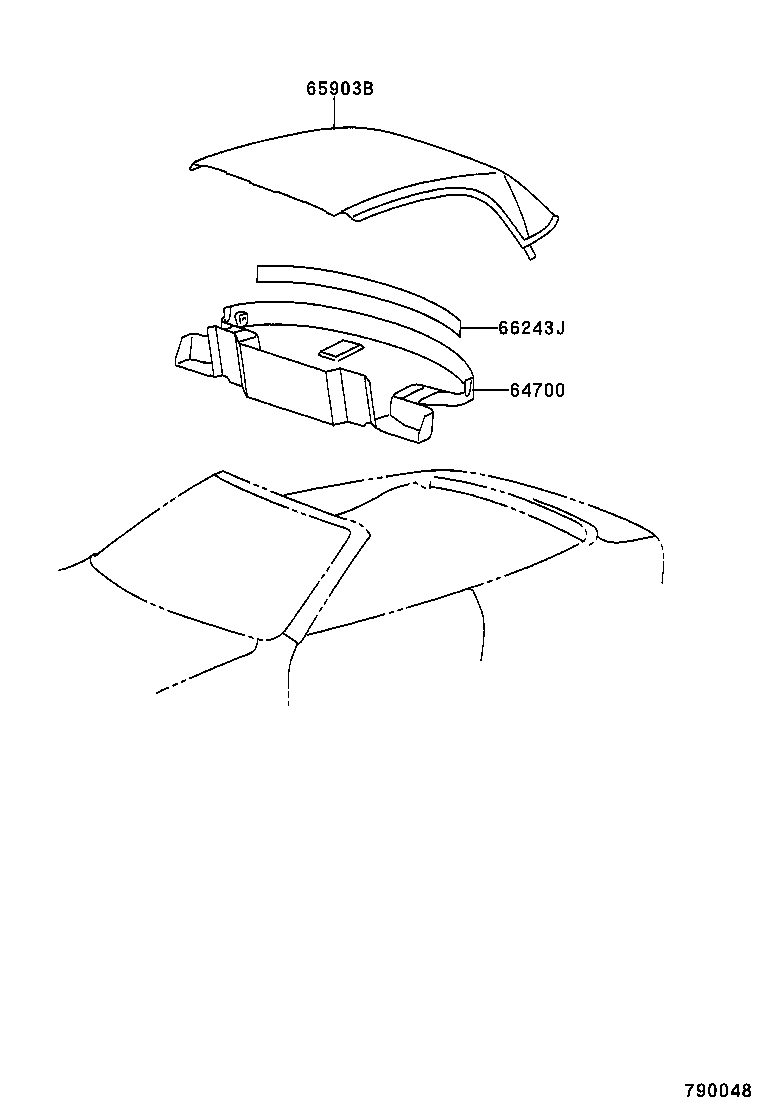

ILLUST NO. 3 OF 4(0002- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|

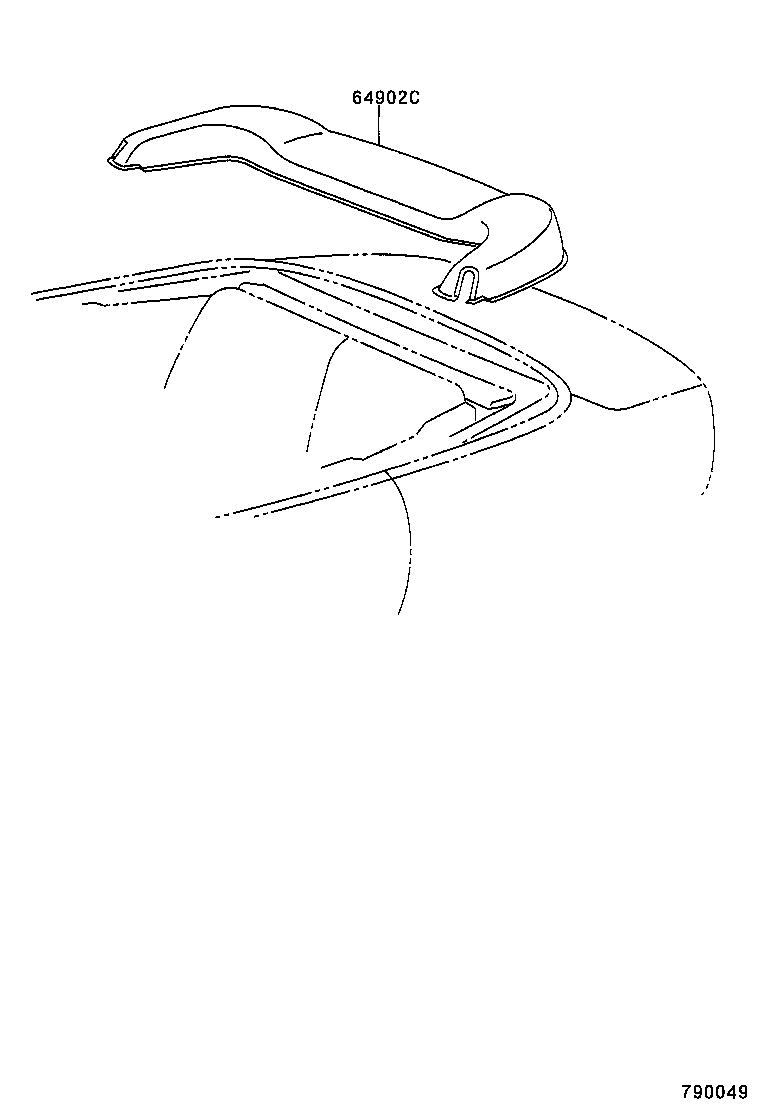

ILLUST NO. 4 OF 4(0002- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64902C - COVER SUB-ASSY, TONNEAU | ||||
| 64902-AA010E0 |
MCV20,SXV20..CVT SANDAL WOOD,TRIM0#&051 ,209 ,3N5 |
1 | ||
| 64902-AA010C0 |
MCV20,SXV20..CVT BLACK,TRIM1#&051 ,1C4 ,209 ,3N5 ,4Q5 |
1 | ||
