SXV20L-GKPNKA (2000)

Toyota Solara

Production Feb 2000 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )CVT

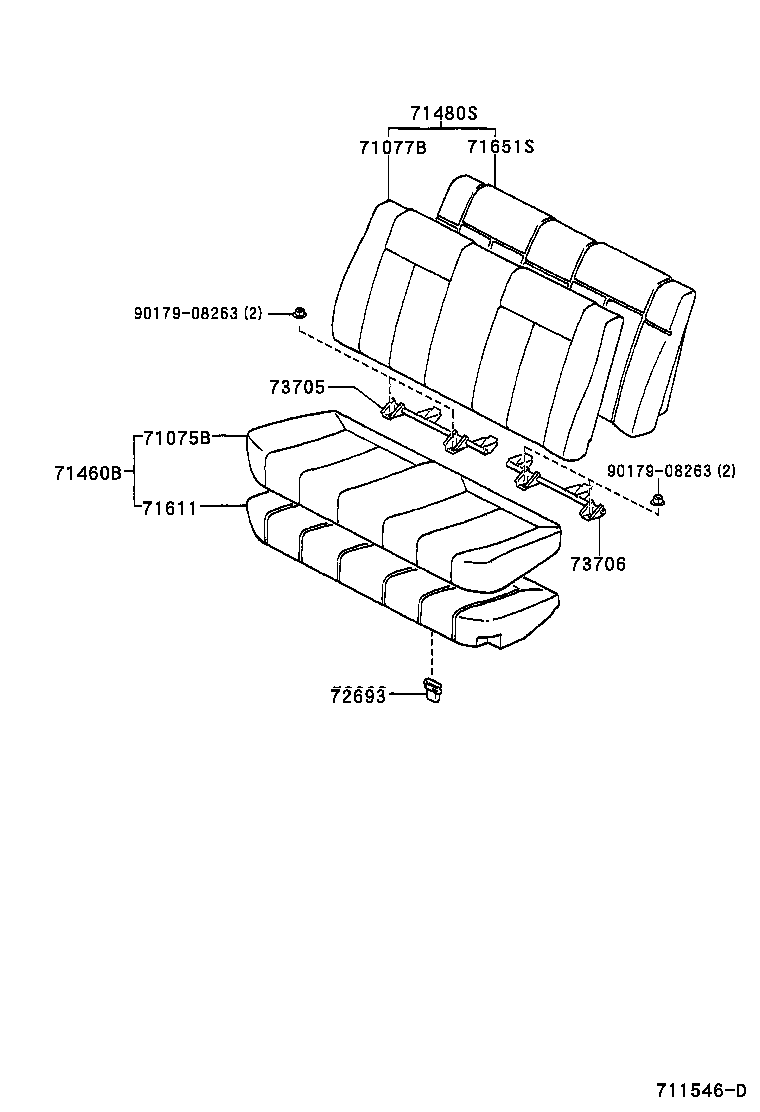

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71480S 71611 71651S 72693 73705 73706 9017908263 9017908263
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-AA160B0

MCV20,SXV20..CVT

BLUISH GRAY,TRIM1#

 1
71075-AA170B0

MCV20,SXV20..CVT

LEATHER SEAT,BLUISH GRAY,TRIM1#

 1
71075-AA170A0

MCV20,SXV20..CVT

LEATHER SEAT,IVORY,TRIM0#

 1
71075-AA160A0

MCV20,SXV20..CVT

IVORY,TRIM0#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-AA240B0

MCV20,SXV20..CVT

BLUISH GRAY,TRIM1#

 1
71077-AA240A0

MCV20,SXV20..CVT

IVORY,TRIM0#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-AA180B0

MCV20,SXV20..CVT

BLUISH GRAY,TRIM1#

 1
71460-AA180A0

MCV20,SXV20..CVT

IVORY,TRIM0#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-AA300A0

MCV20,SXV20..CVT

IVORY,TRIM0#

 1
71480-AA300B0

MCV20,SXV20..CVT

BLUISH GRAY,TRIM1#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20060

ACV20,MCV20,SXV20

 2
Common parts
90179-08263
