SXV20L-GKPNKA (2000)

Toyota Solara

Production Feb 2000 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )CVT

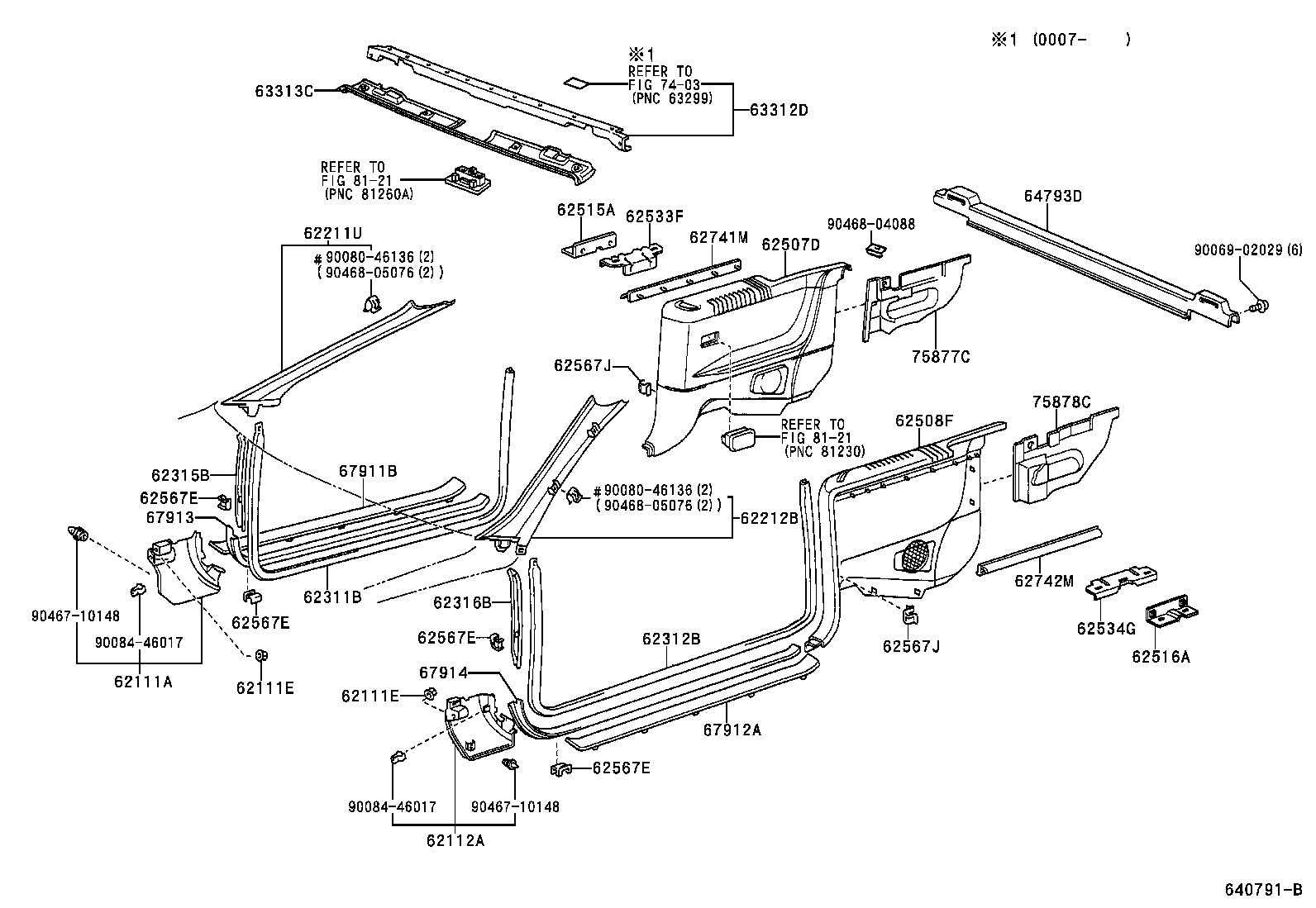

Click highlighted areas on diagram

diagram 62111A 62111E 62111E 62112A 62211U 62212B 62311B 62312B 62315B 62316B 62507D 62508F 62515A 62516A 62533F 62534G 62567E 62567E 62567E 62567E 62567J 62567J 62741M 62742M 63312D 63313C 64793D 67911B 67912A 67913 67914 7403 75877C 75878C 8121 8121 9006902029 9008046136 9008046136 9008446017 9008446017 9046710148 9046710148 9046804088 9046805076 9046805076
Part # Description Qty Price
62111E - RETAINER, COWL SIDE TRIM
90467-06158C0

ACV20,MCV20,SXV20

BLACK,TRIM0#,1#

 2
62111E - RETAINER, COWL SIDE TRIM
90467-06158C0

ACV20,MCV20,SXV20

BLACK,TRIM0#,1#

 2
62315B - COVER, FRONT DOOR OPENING TRIM, RH
62315-AA010B1

ACV20,MCV20,SXV20

SHADOW GRAY,TRIM1#

 1
62315-AA010A0

ACV20,MCV20,SXV20

IVORY,TRIM0#

 1
62316B - COVER, FRONT DOOR OPENING TRIM, LH
62316-AA010B1

ACV20,MCV20,SXV20

SHADOW GRAY,TRIM1#

 1
62316-AA010A0

ACV20,MCV20,SXV20

IVORY,TRIM0#

 1
62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62567-33010

ACV20,MCV20,SXV20

COWL PANEL SIDE

 2
62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62567-33010

ACV20,MCV20,SXV20

COWL PANEL SIDE

 2
62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62567-33010

ACV20,MCV20,SXV20

COWL PANEL SIDE

 2
62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62567-33010

ACV20,MCV20,SXV20

COWL PANEL SIDE

 2
63312D - HEADLINING, ROOF, NO.2
63312-AA010A0

MCV20,SXV20..CVT

IVORY,TRIM0#

 1
63312-AA010C0

MCV20,SXV20..CVT

BLACK,TRIM1#

 1
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-06020

ACV20,MCV20,SXV20

 1
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67912-06020

ACV20,MCV20,SXV20

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-06020A0

ACV20,MCV20,SXV20

IVORY,TRIM0#

 1
67913-06020B0

ACV20,MCV20,SXV20

SHADOW GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-06020A0

ACV20,MCV20,SXV20

IVORY,TRIM0#

 1
67914-06020B0

ACV20,MCV20,SXV20

SHADOW GRAY,TRIM1#

 1
Common parts
90069-02029
90080-46136
90084-46017
90467-10148
90468-04088
90468-05076
Linked diagrams
7403
8121
