SXV20L-GKPNKA (2000)

Toyota Solara

Production Feb 2000 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )CVT

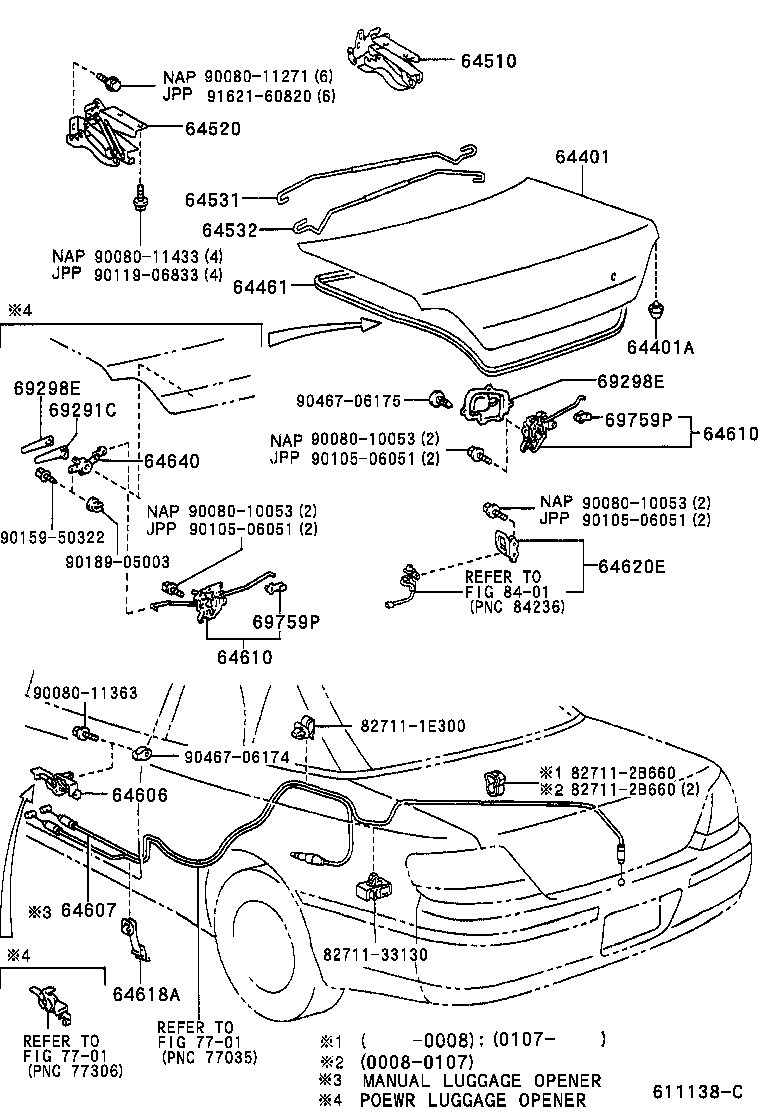

Click highlighted areas on diagram

diagram 64401 64401A 64461 64510 64520 64531 64532 64606 64607 64610 64610 64618A 64620E 64640 69291C 69298E 69298E 69759P 69759P 7701 7701 827111E300 827112B660 827112B660 8271133130 8401 9008010053 9008010053 9008010053 9008011271 9008011363 9008011433 9010506051 9010506051 9010506051 9011906833 9015950322 9018905003 9046706174 9046706175 9162160820
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-06120

MCV20,SXV20..CVT

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09035

ACV20,MCV20,SXV20

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-06020

ACV20,MCV20,SXV20

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-AA030

MCV20,SXV20

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-AA020

MCV20,SXV20

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-AA010

ACV20,MCV20,SXV20

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-AA020

MCV20,SXV20

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-AA020

MCV20,SXV20

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-06010

ACV20,MCV20,SXV20

 1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-24050

ACV20,MCV20,SXV20

 1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-24050

ACV20,MCV20,SXV20

 1
Common parts
82711-1E300
82711-2B660
82711-33130
90080-10053
90080-11271
90080-11363
90080-11433
90105-06051
90119-06833
90159-50322
90189-05003
90467-06174
90467-06175
91621-60820
Linked diagrams
7701
8401
